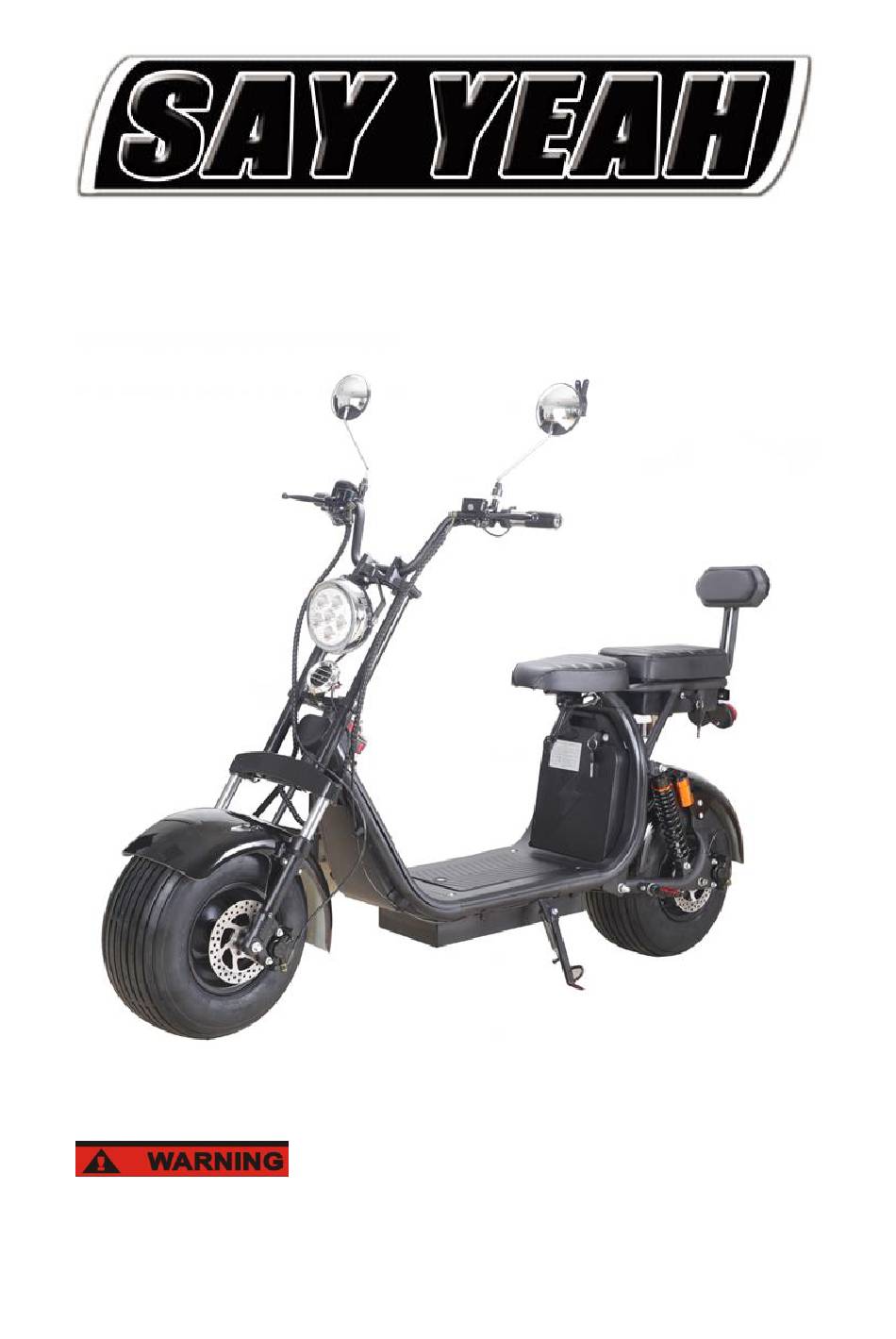

SAY YEAH 2000W Knock Out Electric Scooter
Not for under 16 year old
Read this manual completely before riding your electric trike

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2000W Knock Out and is the answer not in the manual?

Questions and answers

Related Manuals for SAY YEAH 2000W Knock Out

Summary of Contents for SAY YEAH 2000W Knock Out

  • Page 1 SAY YEAH 2000W Knock Out Electric Scooter Not for under 16 year old Read this manual completely before riding your electric trike...

  • Page 2: Table Of Contents

    Contents 1. Introduction 2. Main Technical Parameters 3. Scooter Structure 4. Fast Installation 5. Safety 6. Maintenance 7. Operation Tips 8. Warm Remind...

  • Page 3: Introduction

    1. Introduction Dear users, in order to ensure good performance of this scooter and for your safety and others safety, please read this manual carefully before using. This scooter is for people above 13 years old, people under this age is not allowed to use in case of safety.

  • Page 4: Main Technical Parameters

    2. Main Technical Parameters Motor: 60 Volt 2000Watt Battery: 18A 60V lithium battery(2pcs) Top Speed: 40KM/H (weight dependent) Speed: 2 choices Super Bike Size:190*38*116cm Seat Height: 71cm Recommended Age: 16+ Max Rider Weight: 200kgs Frame: Steel Tires size both: 225/55-8 Brakes: hydraulic brake Throttle: Variable twist-grip Seat: Padded seat (two rider)

  • Page 5: Scooter Structure

    3.Scooter Structure 1. Front Light 9.Rear Wheel 2. Power Display 10.Rear Light 3. Handlebar 11.Backrest 4. Front Shock Absorber 12.Foot support 5. Rear Shock Absorber 13.Padded Seat 6. Front Fender 7. Rear Fender 8. Front Wheel...

  • Page 6: Fast Installation

    4. Fast Installation (1)Check handlebar screws, and make them tightly. (2)Install Foot support.Across the bolt and screw it.
  • Page 7 Inset backrest and rear light.First inset backrest,then put real light, last tight screws.
  • Page 8 (4)Pls connect the front light part.

  • Page 9: Safety

    Note:Pls check the battery, there are two lithium battery on this scooter. And charger and using socket are different for each battery.You can choose the battery by yourself. As follow: (1) If you want to use battery①,you need connect with port①.
  • Page 10 b).Do not drive it if power not full as it is of no enough energy to support loading and easy to fall and get hurt, and also harm to battery life c). It is dangerous to use non-original charger or battery maybe damaged and do not use our charger to charge other types of batteries.

  • Page 11: Maintenance

    a). Please turn the power off when you get off the scooter to walk by to prevent unintentional touch on the dynamic acceleration in case the scooter suddenly goes forwarder and lead accident happened b). Please turn off the power when you stop riding and please make regular maintenance and cleaning to keep your scooter in top condition c).

  • Page 12: Operation Tips

    with cadres. c) Prohibit to the oiling the rear brake and tire 3. Maintenance and Adjustment a) Always check the handlebar if get loose. b) Always check the performance of the brakes whether good and timely adjustments. 7. Operation Tips 1).
  • Page 13 instruction causes the battery excessive water loss and dry The driving distance will be reduced 0.4kms when temperatures drop every 1 ℃ (at 25 ℃ basis) in winter, so please pay attention to adjust the drive distance and the charging time. 2).Tips to Have a Longer Driving Distance For the reasons of scooter with short mileage are summarized as follows:...

  • Page 14: Warm Remind

    the brake system to work with best state. Normal load shall not exceed 200Kg b) Under the premise of ensuring safety, should minimize the frequent braking, starting, instant acceleration what caused by electricity waste on the driving way. Save energy to achieve the purpose of improving mileage.
  • Page 15 above 20 ℃, it recovers to its normal capacity naturally. Do not insert metal objects (such as wires, keys, etc.) into or come into the battery 's contactor on the positive and negative outputs when you remove the battery to avoid causing a short circuit sparks The scooter is rain and snow resistant, but cannot be immersed into water.
  • Page 16 Disassemble or modified the scooter with none unauthorized people will lead your scooter unsafe hazards, danger Check and make sure the brakes, handlebar locking, fold bar, wheels reliability and in good condition before riding to avoid accidents. Do not hang things on the handlebars when driving in case loose gravity and cause accident.
  • Page 17 For service, Create Online, Trouble Ticket http://www.hpusscooters.com/support/...
