Elk Products ELK-AEWF Quick Start Manual

ELK-AEWF Alarm Engine Wi-Fi Adapter
APPLICATION:
The ELK-AEWF is a optional Wi-Fi adapter for the E27 Alarm Engine. This adapter can
be used in place of a hard wired Ethernet connection, allowing the E27 to access the
local area network (LAN) and the Internet. The AEWF connects to the E27 board via a
dedicated Wi-Fi connector.
SPECIFICATIONS
:
• Standard supported: 802.11b/g/n
• Frequency: 2.4 GHz
Features or Specifications subject to change without notice.
INSTALLATION INSTRUCTIONS:
Before installing the Wi-Fi adapter, you MUST
turn the E27 master power switch OFF.
1. The AEWF adapter includes two antenna options, a short antenna and long antenna.
The short antenna is ideal for installations with a plastic enclosure and can be
mounted on the enclosure. The long antenna works best for installations with a
metal enclosure as it allows the antenna to be place outside the enclosure. Select the
antenna that best suits the installation.
2. Route the antenna cable through knockout in the top of the enclosure.

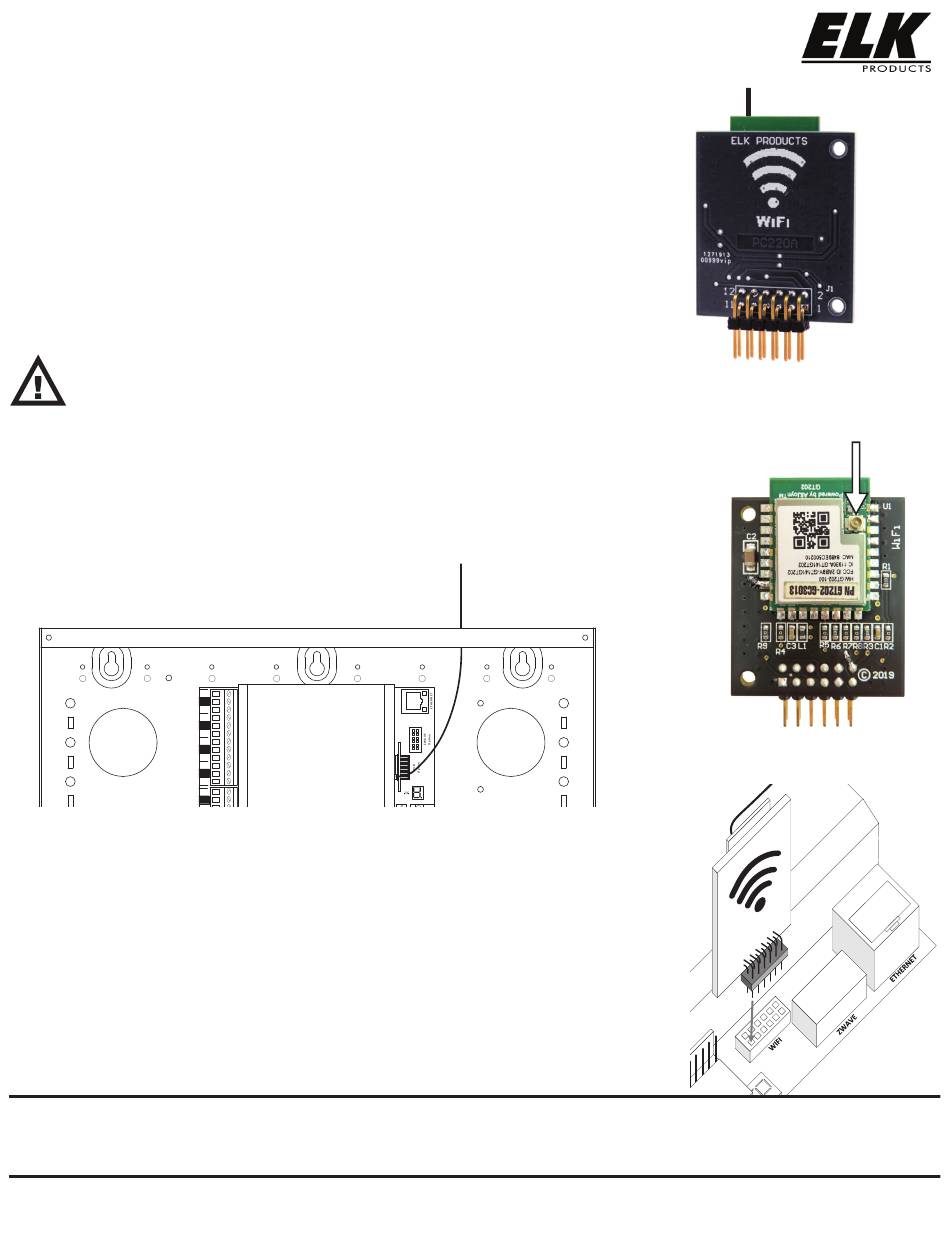

3. Locate the antenna connector on the AEWF adapter (see image to the right). Plug the
antenna cable onto the antenna connector. To avoid damage, care should be taken to
limit excessive removal and reconnection of the antenna cable.
4. Locate the WIFI connector on the right side of the E27 board.
5. Orient the AEWF adapter with the screen printed Wi-Fi symbol facing outward (see
illustration to the right).
6. Align the AEWF adapter with the connector. Carefully insert the connector pins on the
AEWF adapter into the connector on the E27 board. Ensure the AEWF adapter is fully
seated.
7. Mount the antenna. The small antenna has an 8" cable and self-adhesive strip at the
top for mounting to the plastic enclosure. The large antenna has an 18" cable and a
strong adhesive on the back side suitable for mounting to a clean, smooth surface.
LIMITED WARRANTY
The ELK-AEWF Wi-Fi Adapter is warranted to be free from defects and workmanship for a period of 2 years from date of manufacture. Elk makes no warranty,
express or implied, including that of merchantability or fitness for any particular purpose with regard to batteries used with wireless devices. Refer to Elk's website
for full warranty statement and details.
ELK Products Inc. • PO Box 100 • Hildebran, NC 28637 USA • 828-397-4200
https://www.elkproducts.com • email: info@elkproducts.com
• Current draw: Approx. 2.1mA
• Includes 2 antenna options
Z1
NEG
Z2
Z3
NEG
Z4
Z5
NEG
Z6
Z7
NEG
Z8
Z9
NEG
Z10
Z11
NEG
Z12
Z13
NEG
Z14
Z15
NEG
Z16
Z14 Z15 Z16
JP5 JP6 JP7
+SAUX
NEG
+VAUX
NEG
Antenna
Cable
N/C
COM
N/O
ALRM
2
ALRM
1
+VKP
BUS A
BUS B
NEG
+ 14V
DC IN
NEG
+BAT
RED
-BAT
BLK
Antenna
Connector
