CONTENTS FOREWORD ................................. 4 IDENTIFICATION ..............................4 GENERAL ................................5 PERFORMANCE RANGE OF PRODUCTS ......................... 5 EXPLODED VIEWS ..............................6 AP PUMP ..............................6 BP PUMP ..............................8 CP PUMP..............................10 EP PUMP ..............................12 GP PUMP ..............................14 GPA PUMP .............................. 16 IP PUMP ..............................
FOREWORD Thank you for choosing Miksan Motor. This manual contains the installation, operating and maintenance of the AP, BP, CP, EP, GP/A, IP/A and J Series type multistage centrifugal pumps with technical features. Read the manual carefully before installation and using the pump. Keep this user’s manual for as long as the pump is in use.

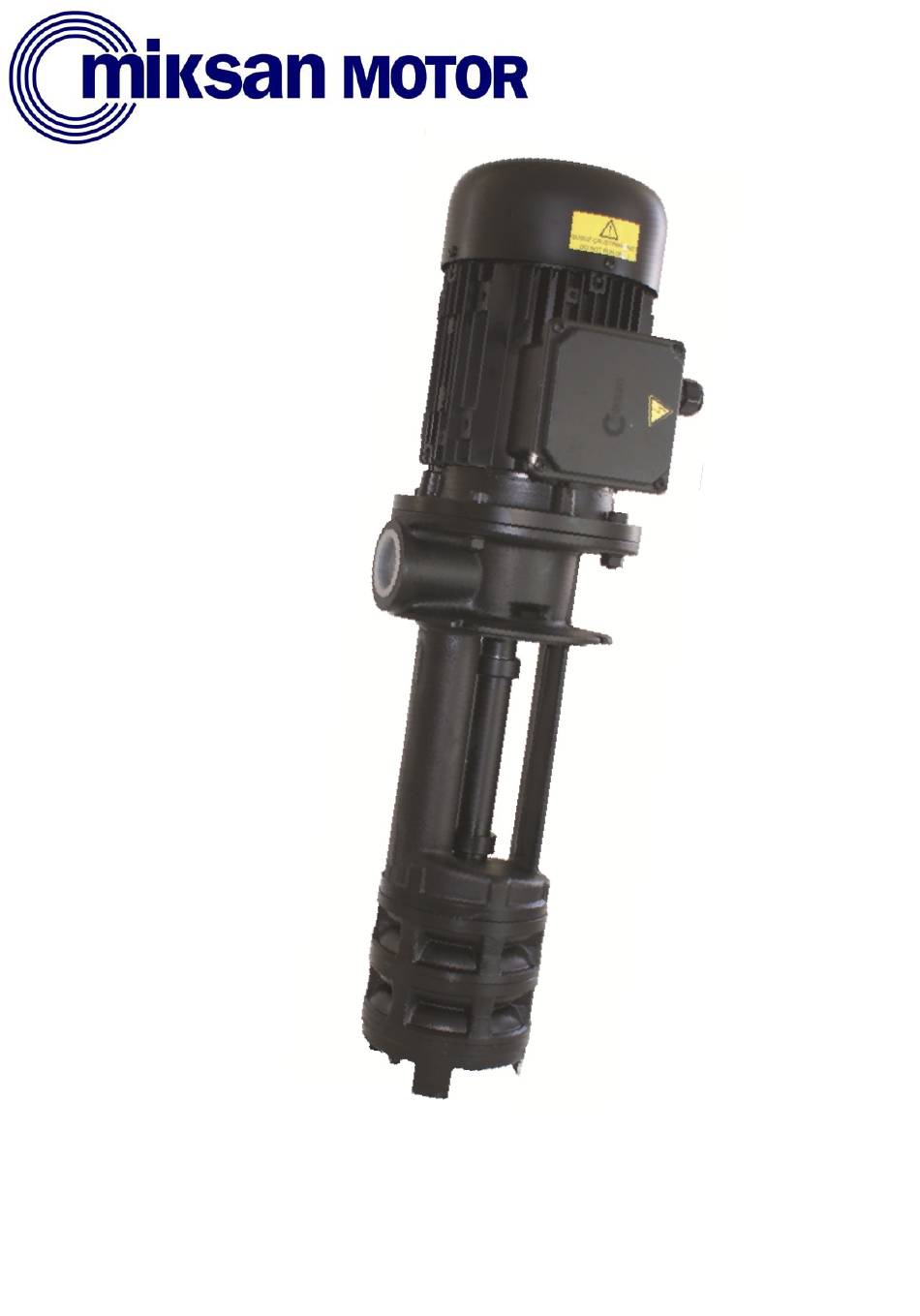

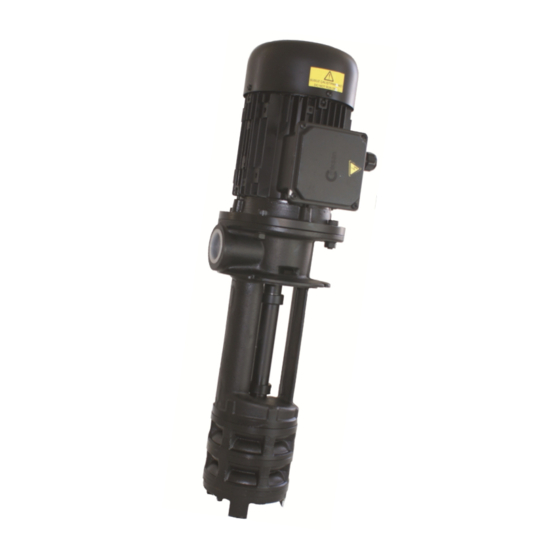

GENERAL Figure 2. Centrifugal coolant pumps AP, BP, CP, EP, GP and IP are produced by Miksan Motor. PERFORMANCE RANGE OF PRODUCTS (2-pole at 50Hz) Figure 3. Performance Characteristics of Low and Medium Pressure Pumps...
CP PUMP Item No Description Pump Motor Pump shaft with rotor (AISI 1040 - DIN C35)* Pump Body (Cast iron) Impeller (Polyamide optional Brass) Inlet Cover (Polyamide optional Cast iron) Front Bearing - 6003 2Z Rear Bearing - 6202 2Z Capacitor (for Single-phase Motors - 8μF) Three-phase Terminal Box (Polyamide) Single-phase Terminal Box (lower part) (Polyamide)
Page 13
Socket Head Cap Screw (DIN 912) Washer **(DIN 125) Socket Head Cap Screw **(DIN 912) Pipe End Plug * For EP 150-250-350 (single-stage). ** For EP 152-153-252 (multistage). *** For EP 250 Series. **** For EP 150 Series. *****For EP 350 Series.
GP PUMP Item No Description Pump Motor Pump Shaft with Rotor (AISI 1040 - DIN C35) Front Bearing - 6206 2Z Rear Bearing - 6204/6205/6206 2Z Motor Flange Pump Body (Cast iron) Diffuser (Cast iron) Diffuser with bearing rings (Cast iron)* Inlet Cover (Cast iron) Impeller (Brass) Impeller with Bearing Ring (Brass)*...
IP PUMP Item No Description Pump Motor Pump Shaft with Rotor (AISI 1040 - DIN C35) Front Bearing - 6206 2Z Rear Bearing - 6204/6205/6206 2Z Motor Flange Pump Body (Cast iron) Diffuser (Cast iron) Diffuser with bearing rings (Cast iron)* Inlet Cover (Cast iron) Impeller (Cast iron) Impeller with Bearing Ring (Cast iron)*...
WARRANTY All type of pumps manufactured by Miksan Motor are under the warranty of Miksan Motor San. ve Tic. A.S. to the original user only to be free of defects in material and workmanship for 2 years unless prod- uct is used in accordance with its designated use and service as described in the following sections of this manual.
Miksan Motor does not accept any liability for damage and injury caused by not applying the directions and instructions in this manual. This also applies in cases of carelessness during the installation proce- dure, use and maintenance of the product.
Page 28
Safety Precautions The product has been designed with the greatest possible care. Original parts and accessories meet the safety regulations. Modifications in the construction or the use of non-original parts may lead to a safety risk. When operating the pump, the safety instructions contained in this manual, the relevant national acci- dent prevention regulations and any other service and safety instructions issued by the plant operator are to be observed.
Terminal box is on the Terminal box is over Terminal box is on opposite of the pump left of the pump dis- the pump discharge. the right of the pump discharge. charge. discharge. Standard Miksan Motor terminal box position. Figure 4. Terminal box positions...
INSTALLATION Place and install the pump on a flat surface on the top of the coolant tank with the pump body being immersed in the coolant shown in Figure 5. Immersion depth of the pump should be at least 25 mm shorter than the depth of the tank and minimum fluid level should exceed lower stage of the pump.
ELECTRICAL CONNECTIONS Centrifugal pumps consist of air-cooled squirrel cage electric motor and pump parts. Pump is connected to the motor perpendicularly via bolts, clutch etc. to operate inside the liquid. A faulty motor or wiring can cause electrical shock that could be fatal, whether direct contact or conducted through standing water.
OPERATION Start up Install the pump according to ‘Installation’ heading in the manual. Switch off the mains and connect the terminals according to ‘Electrical Connections’ heading in the manual. Then close the terminal box. Check installation and electrical connections steps one more time before starting up the pump. Briefly start the motor to check the direction of rotation according to the arrow on the top of the motor (By looking through the fan cover that has to turn counter-clockwise for the AP and BP series pumps.
SERVICING AND MAINTENANCE Observe the general safety precautions for installation, maintenance and repair. Do NOT keep the pump immersed in water if it is not in use for a long period. The pump must be stored in dry and clean place. Check the pump shaft by rotating manually before re-installed. Pump faults, possible causes and solutions are given in the table below.
