LG 35BN75CP Owner's Manual

LG 35BN75CP Owner's Manual

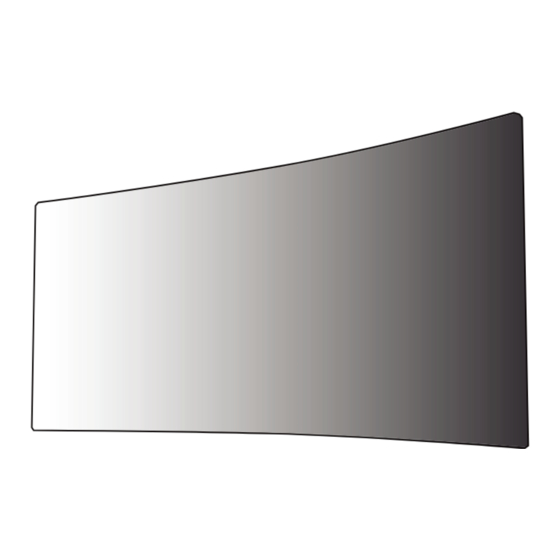

Led lcd monitor
Hide thumbs Also See for 35BN75CP:

Advertisement

Quick Links

Download this manual
OWNEr's MaNuaL
LED LCD MONITOr
(LED Monitor*)
* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and
retain it for future reference.
35WN75C/35WN75CP
35BN75C/35BN75CP
www.lg.com
35WN75CN
Copyright © 2020 LG Electronics Inc. all rights reserved.
35BN75CN

Advertisement

loading

Related Manuals for LG 35BN75CP

Summary of Contents for LG 35BN75CP

  • Page 1 OWNEr’s MaNuaL LED LCD MONITOr (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 35WN75C/35WN75CP 35BN75C/35BN75CP www.lg.com 35WN75CN Copyright © 2020 LG Electronics Inc. all rights reserved.

  • Page 2: Table Of Contents

    TabLE of CoNTENTS LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. LICENSE ............2 OpEN SOUrCE SOFTWArE NOTICE The terms HDMI, HDMI High-Definition Multimedia Interface, and INFOrMATION ..........3 the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

  • Page 3: Open Source Software Notice

    Supported Drivers and Software LG Electronics will also provide open source code to you on CD-rOM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 4 product and button Description moving and Lifting the monitor When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size. • Place the monitor in the original box or packing material before attempting to move it. •...
  • Page 5 Installing on a Table adjusting the Stand Height • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm away from Place the monitor mounted on the stand base in an upright position. the wall to ensure sufficient ventilation.
  • Page 6 using the Kensington Lock Installing the wall mount plate The connector for the Kensington security system is located at the back of the monitor. This monitor meets the specifications for the wall mount plate or other compatible devices. For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website NoTE at http://www.kensington.com.
  • Page 7 Wall Mount Plate Back of the Monitor NoTE • a non-VEsa standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws. Wall Mount Plate •...

  • Page 8: Using The Monitor

    uSING THE moNITor Displayport Connection Transmits digital video and audio signals from your PC to the monitor. • Illustrations in this manual may differ from the actual product. NoTE Press the joystick button, go to Settings Input, and then select the input option. •...
  • Page 9 Connecting aV Devices CauTIoN Cautions When using a usB Device HDmI Connection • a usB device with an automatic recognition program installed, or that uses its own driver, may not be recognized. HDMI transmits digital video and audio signals from your aV device to the monitor. •...

  • Page 10: User Settings

    uSEr SETTINGS NoTE • Your monitor’ s OsD (On screen Display) may differ slightly from that shown in this manual. activating the main menu Press the joystick button on the bottom of the monitor. Move the joystick up/down and left/right to set the options. Press the joystick button once more to exit the main menu.
  • Page 11 main menu features main menu Description Input sets input mode. power off power off Turns off the monitor. Settings Configures the screen settings. Exit Input Settings picture mode sets the picture mode. Exit Exits the main menu. picture mode menu Settings To view the OsD menu, press the joystick button at the bottom of the monitor and then enter the Settings.
  • Page 12 Quick Settings Settings > Quick Settings Description brightness adjusts the contrast and brightness of the screen. Contrast adjusts the volume. Volume NoTE • You can adjust mute / unmute by moving the joystick button to in the Volume menu. Maxxaudio® by waves, recipient of a Technical GraMMY award® is a suite of studio-quality sound tools for a superior listening experience. waves maxxaudio®...
  • Page 13 Input Settings > Input Description Input List selects the input mode. When automatic input switch is set to on, display will automatically switch to new input when connected. Enables auto Input Switch. auto Input Switch Disables auto Input Switch. adjusts the aspect ratio of the screen. aspect ratio full wide Displays the video in widescreen, regardless of the video signal input.
  • Page 14 picture NoTE • The picture mode that can be set depends on the Input signal. [picture mode on SDr (Non-HDr) signal] Settings > picture Description Custom allows the user to adjust each element. Vivid Heightens contrast, brightness and sharpness to display vivid images. HDr Effect Optimizes the screen for high dynamic range.
  • Page 15 [picture mode on HDr signal] Settings > picture Description Custom allows the user to adjust each element. Vivid Optimized the screen for HDr vivid colors. Cinema Optimized the screen for HDr video. This mode is optimized for FPs games.It is suitable for very dark FPs games. picture mode This mode is optimized for rTs Game.
  • Page 16 Settings > picture Description brightness adjusts the contrast and brightness of the screen. Contrast Sharpness adjusts the sharpness of the screen. High Optimizes the screen for crystal clear images. Best for high-definition video or games. Optimizes the screen for comfortable viewing, with images at the middle level between the low and high modes. Best middle for uCC or sD videos.
  • Page 17 Settings > picture Description sets a response time for displayed pictures based on the movement of the picture on the screen. For a normal environment, it is recommended that you use fast. When there is a lot of motion, it is recommended that you use faster. setting to faster may cause image sticking.
  • Page 18 Settings > picture Description mode 1, The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the mode 2, image becomes. Gamma mode 3 mode 4 If you do not need to adjust the gamma settings, select mode 4. set your own color temperature.
  • Page 19 Sound Settings > Sound Description adjusts the volume level. Volume NoTE • You can adjust mute / unmute by moving the joystick button to▼in the Volume menu. Maxxaudio® by waves, recipient of a Technical GraMMY award® is a suite of studio-quality sound tools for a superior listening experience. waves maxxaudio®...
  • Page 20 General Settings > General Description Language sets the menu screen to the desired language. Conserve energy by using luminance compensation algorithm. High saves energy using the high-efficiency SmarT ENErGY SaVING feature. saves energy using the low-efficiency SmarT ENErGY SaVING feature. SmarT ENErGY SaVING Disables the feature.
  • Page 21 Settings > General Description set DisplayPort Version to the same version as the connected external device. (1.4, 1.2) Displayport Version To use the HDr function, set to 1.4. HDMI Compatibility Mode feature can recognize the legacy equipment that does not support HDMI 2.0. Enables HDmI Compatibility mode.

  • Page 22: Troubleshooting

    TroubLESHooTING Nothing is displayed on the screen. • Is the monitor's power cord plugged in? Check if the power cord is correctly plugged into the power outlet. • Is the power LED on? Check the power cable connection and press the power button. •...
  • Page 23 Do you see an "unrecognized monitor, plug and play (VESa DDC) monitor found" message? • Have you installed the display driver? Be sure to install the display driver from our web site: http://www.lg.com. • Make sure to check if the graphics card supports Plug and Play function.

  • Page 24: Product Specification

    proDuCT SpECIfICaTIoN 35WN75C/35WN75CP/35WN75CN Color Depth 8-bit color is supported. HDMI 3440 x 1440 @ 85 Hz Max resolution DisplayPort/ usB-C 3440 x 1440 @ 100 Hz resolution HDMI 3440 x 1440 @ 85 Hz recommended resolution DisplayPort/ usB-C 3440 x 1440 @ 100 Hz Power rating 19.5 V 10.0 a...
  • Page 25 SpECIfICaTIoN 35BN75C/35BN75CP/35BN75CN Color Depth 8-bit color is supported. HDMI 3440 x 1440 @ 85 Hz Max resolution DisplayPort/ usB-C 3440 x 1440 @ 100 Hz resolution HDMI 3440 x 1440 @ 85 Hz recommended resolution DisplayPort/ usB-C 3440 x 1440 @ 100 Hz Power rating 19.5 V...
  • Page 26 factory Support mode (preset mode, pC) Displayport/ uSb-C preset mode Horizontal frequency (kHz) Vertical frequency (Hz) polarity (H/V) remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1920 x 1080 66.587 59.934 3440 x 1440 74.94 49.96 3440 x 1440...
  • Page 27 HDmI preset mode Horizontal frequency (kHz) Vertical frequency (Hz) polarity (H/V) remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1920 x 1080 67.50 3440 x 1440 89.95 59.96 3440 x 1440 43.76 29.95 HDMI Preferred timing, HDmI Compatibility mode: : on 3440 x 1440 74.94...
  • Page 28 HDmI Timing (Video) factory support mode Horizontal frequency(kHz) Vertical frequency(Hz) remarks (preset mode) 480p 31.5 720p 45.0 1080p 67.5 2160p When HDMI Compatibility Mode is set to Off...
  • Page 29 (for 35BN75C/35BN75CP/35BN75CN) ® This Product qualifies for ENERGY STAR The model and serial number of the product are located on the back and on one side of the product. Changing the factory default configuration and settings or enabling certain optional features Record them below in case you ever need service.
