Summary of Contents for REI DA26
- Page 1 DA26 HDMI ARC Audio Down-mixer Follow us on Youtube and Facebook USER MANUAL www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum perfor- mance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help trouble-shoot your project to get you installed on time and on budget.
-
Page 4: Introduction

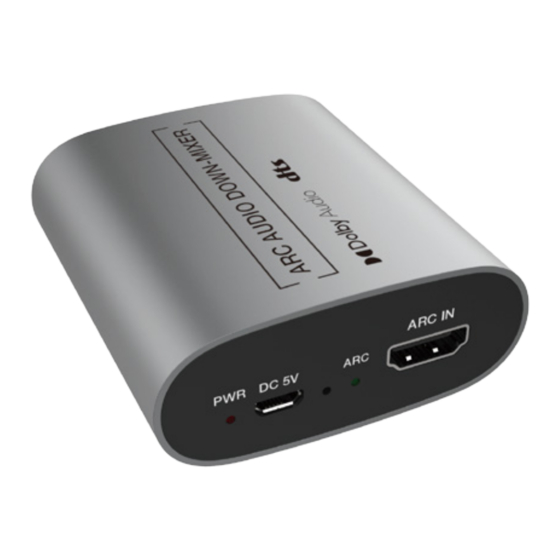

Introduction The DA26 HDMI ARC audio down-mixer can extract audio signal from ARC enabled HDTV to 2 channels analog stereo audio output, for audio receiver/amplifier/ headphone applications. It supports PCM 2.0/Dolby 5.1 /DTS 5.1 audio down-mixing. TV remote can control the volume via CEC function. -
Page 5: Features
4. Supports PCM 2.0, Dolby 5.1, DTS 5.1 audio down-mix to 2 channels stereo audio output 5. Supports CEC function (TV remote can control the volume) Package Contents DA26 HDMI ARC Audio Down-mixer 1pcs USB Cable (USB-A to Micro USB) 1pcs... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 1.3 or above Vmax 2Vrms ＞90dB ＞0.1% (V_max) THD+N Ratio 0.001%~0.01% (V_best) Crosstalk ＞80dB Frequency Response 20Hz~20kHz±1dB HDMI Audio PCM 2.0, Dolby 5.1, DTS 5.1 Formats L/R Audio Formats Analog Stereo 2CH Human-body Model: ±8kV (Air-gap ESD Protection discharge), ±4kV (Contact discharge) Connection... - Page 7 Specifications Mechanical Housing Aluminium Enclosure Silkscreen Color Silver Dimensions 70mm (W) × 65mm (D) × 27mm (H) Weight Power Supply USB 5V/500mA Power Consumption 0.86W (Max) Operation 32~104°F/0~40°C Temperature Storage Temperature -4~140°F/-20~60°C Relative Humidity 20~90% RH (non-condensing) page 07...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Left Panel ARC IN DC 5V Name Function Description When the device is powered on, red LED 1. Power LED will be on. 2. DC 5V DV 5V input port for power supply. Audio Red illuminating: PCM decoding or No signal. Decoding Red blinking: Dolby decoding. - Page 9 Operation Controls and Functions Rear Panel AUDIO OUT Name Function Description Stereo 3.5mm stereo audio output port. AUDIO OUT Connects to a headphone or amplifier. RCA audio output port. AUDIO OUT Connects to an amplifier or speaker. page 09...
-
Page 10: Application Example
Application Example AUDIO OUT Active Speakers ARC IN DC 5V USB Power Cable TV with ARC function page 10... - Page 11 HDMI ARC Audio Down-mixer www.orei.com © 2023...
