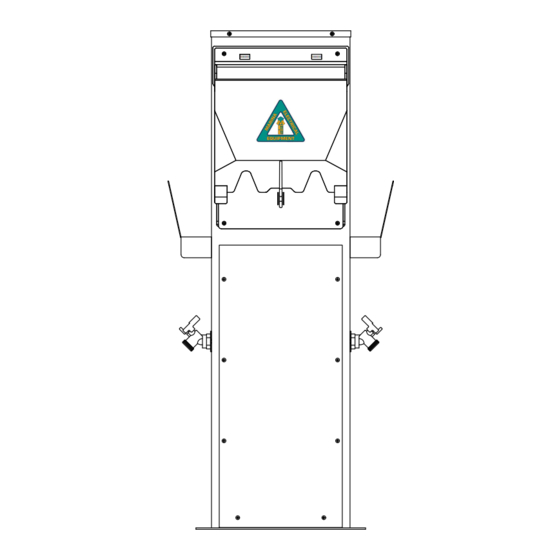

Bayside Pedestal
Model BU3050
Installation, Maintenance,
and Operation Manual
000000
000000
Marina Electrical Equipment, Inc.
1715 Merrimac Trail
Intertek
Williamsburg, VA 23185
Toll Free: 1-855-258-3939
Fax: 1-757-258-3988
Version: 2023
Advertisement
Table of Contents
Summary of Contents for Marina BU3050

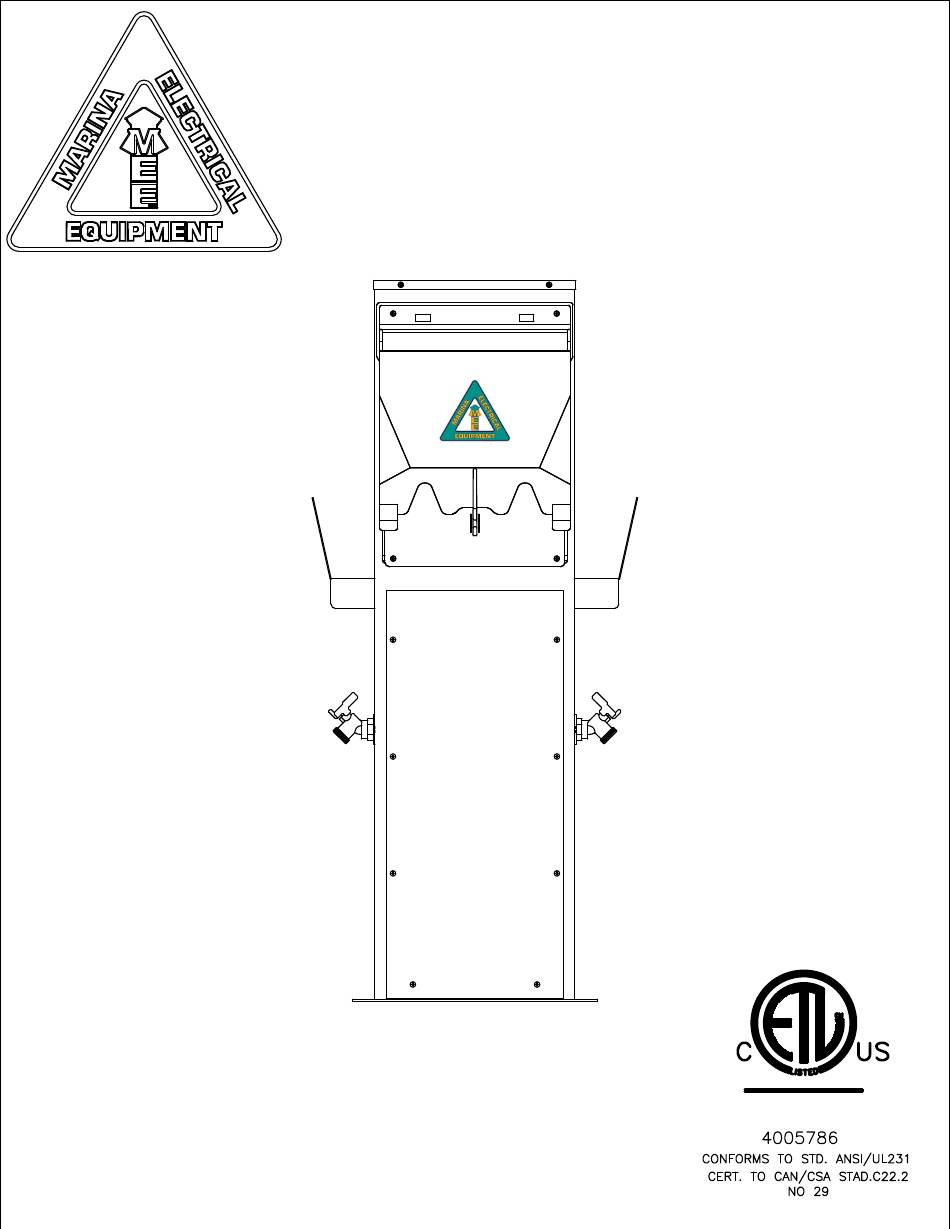

- Page 1 Bayside Pedestal Model BU3050 Installation, Maintenance, and Operation Manual 000000 000000 Marina Electrical Equipment, Inc. 1715 Merrimac Trail Intertek Williamsburg, VA 23185 Toll Free: 1-855-258-3939 Fax: 1-757-258-3988 Version: 2023...
- Page 2 12 inches above the deck of a floating pier, but not below the electrical datum plane. CAUTION: Marina Electrical Equipment, Inc. will not assume any responsibility for property damage or personal injury resulting from misuse of the information in this manual.
- Page 3 Bayside Pedestal Model BU3050 Installation, Maintenance, and Operation Manual INSTALLATION: IMPORTANT: The Bayside Pedestal is thoroughly painted on the bottom and the stainless steel stand is specially designed to protect the bottom of the pedestal from direct contact with the dock surface to inhibit the corrosive effects of treated deck board lumber and/or concrete.
- Page 4 Bayside Pedestal Model BU3050 Installation, Maintenance, and Operation Manual Step 2: Connecting the Power Lines to the Terminal Block: The “Bayside” power pedestal contains a 3/8” stud-lug compression type terminal block within the pedestal interior. Remove the eight (8) stainless steel screws fastening the electrical access panel to the pedestal to expose the terminal block assembly.
- Page 5 Bayside Pedestal Model BU3050 Installation, Maintenance, and Operation Manual Step 3: Water Connection: Remove the access panel to access the back side of the 3/4" female ball valve (see figure below). Feed the piping through the bottom of the water compartment and plumb into the ball valve. PEX tubing and compression-type fittings are recommended for making these connections.
- Page 6 The line side of the main breaker in a panel board is energized unless power is disconnected upstream. Marina Electrical Equipment, Inc. will not assume any responsibility for property damage or personal injury resulting from misuse of the information in this manual.
- Page 7 Bayside Pedestal Model BU3050 Installation, Maintenance, and Operation Manual INTERIOR MAINTENANCE (CONT.) 3. Annual Light Fixture Maintenance: The light fixture can be tested by covering the photocell for 2-4 minutes to simulate darkness. The photocell should close the circuit to illuminate the bulb.
- Page 8 Housings: Marina Electrical Equipment, Inc. (MEE) warrants that the main housing and attached parts (top, lens, doors, receptacle faceplates, circuit breaker plates, and mounting base plate) will be free from failure resulting from defects in material and/or workmanship, and are covered by a limited warranty of one (1) year.
