USER MANUAL
Actual design or color may vary.

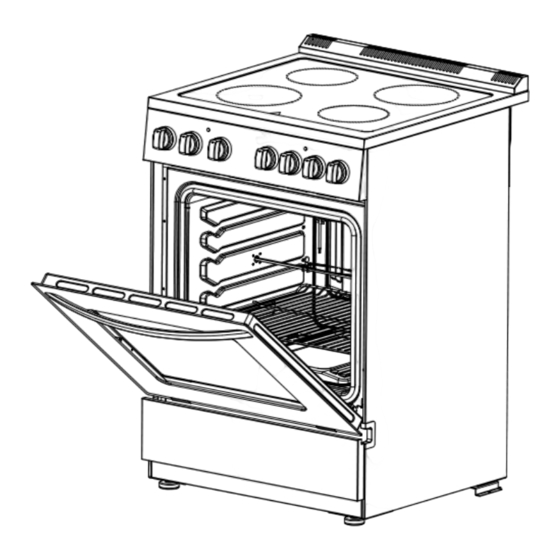

FREESTANDING/SLIDE-IN ELECTRIC RANGE
24" Wide
Model: LB-ERT24RC-S
LB-ERK24RC-B
LB-ERK24RC-W
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS
Lanbo has a policy for continuous improvement on its products and reserves the right to
change materials and specifications without notice
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LB-ERT24RC-S and is the answer not in the manual?

Questions and answers
