EBIKE LSF008 Owners Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSF008 and is the answer not in the manual?

Questions and answers

Summary of Contents for Myride LSF008

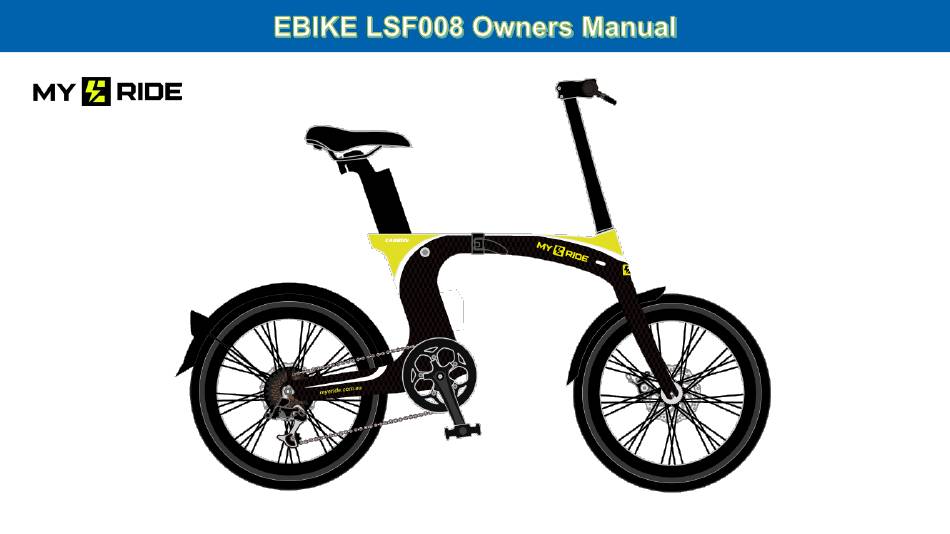

  • Page 1 EBIKE LSF008 Owners Manual...
  • Page 2 Contents Before assembly, please check that you have all the parts below: An owner’s manual, a battery charger, a set of tools...
  • Page 4 Assembly Instructions In order to ensure cycling safety and maximum performance, fasten and check the bolts in key places. Name of Clamp Bolts Standard Torque /N.M Bolt for Handlebar 1 bolt / 2 bolts 16-25 N.M 25-35 N.M 4 Bolts 10-15 N.M 16-25 N.M 25-35 N.M...
  • Page 5 Open and charge the battery Before assembling your EBIKE LSF008, you should charge the battery fully. This will allow you to test the electrical connections during assembly. It may take up to 6 hours to fully charge the battery. The charge light turns from red to green when it is fully charged.
  • Page 6 The handlebars are already attached to the frame via cables. The structure of the brake handle is as shown, the left brake handle controls the front brake, and the right brake handle controls the rear brake. Please pay attention to the Minimum insertion mark on the handlebar stem to insure the rider safety.

  • Page 7: Folding The Frame

    Folding the Frame Use one hand press the button under the folding catch and use the other hand to fold the frame. After you unlock the frame you can start folding. Unfolding the frame...
  • Page 8 The material of product shell is ABS + PC. The material of the window is 2.5D tempered glass.
  • Page 9 1.The mode indicator 2.The lighting indicator 3.The battery level indication 4.The text area indicator 5.The speed indication...
  • Page 10 • Tyre Inspection 1. Tyre pressure Pressure of the tyres should be judged according to Tyre condition and level of comfort required. In case of abnormal pressure, a tyre pressure gauge should be used for inspecting and adjusting to the required pressure.

  • Page 11: Inspection Before Riding

    Inspection before riding • Lights Inspection 1. Operate lighting switch to check whether front light and taillight are ON and whether beam of front light is normal. 2. Check the front and the rear brake handles respectively to see whether the power is disconnected. 3.
  • Page 12 Inspection before riding • Other Inspections 1. Brakes: (Left brake lever control rear wheel, Right brake lever control front wheel) Make sure your brakes are always adjusted correctly. Adjustment can be made at the wheel rim/brake mechanism with the required tools. Fine tuning of the brakes can be made via adjustable twist screws, which are located at the join of the brake lever to the cable.
  • Page 13 Inspection before riding 3. Saddle post : 3. Saddle post: Loosen the lever at the top of the frame below the Loosen the lever at the top of the frame below the saddle to raise or lower the saddle to raise or lower the saddle post,Once the saddle is at the required saddle post, Once the saddle is at the height, secure it by tightening...
  • Page 14 Inspection before riding 3. Saddle post: Loosen the lever at the top of the frame below the saddle to raise or lower the saddle post. Once the saddle is at the required height, secure it by tightening the lever. Tighten or loosen the nut on the lever if required.
  • Page 15 Inspection before riding • Other Inspections 1. Brakes, Gears, Shift lever and Bicycle Chain: Change through the gears one at a time and only when the bicycle is in motion. To maintain performance, ensure that all the mechanical parts of the gears are lightly oiled (avoid getting oil deposits on the wheel rims). If the chain mechanism becomes dislodged, turn the pedals forward gently to engage it.

  • Page 16: Safe Riding

    Safe riding 1. Regulations Follow the rules of your country to ensure riding safety. 2. Start Long-press M key to start up and check whether each function works and whether the brake lever is normal. If there is no abnormity, the kickstand should be placed horizontally into lock position prior to riding your bike.
  • Page 17 Attention • Do not use it as an off-road bike. You will be get hurt if not used correctly. • Riding with battery, make sure temperature is - 10°～60°. • Please remove the battery during the maintenance. You are not able to alter the Power Management System. •...
  • Page 18 Notes dd) An advisory note to draw attention of the rider to possible damage due to intensive use and to recommend periodic inspections of the frame, fork, suspensions joints (if any), and composite components (if any). The advice may be as follows; WARNING 1 —...
  • Page 19 Attention • Press down the shifter lever to Change through the gears one at a time and only when the bicycle is in motion. To maintain performance, ensure that all the mechanical parts of the gears are lightly oiled (avoid getting oil deposits on the wheel rims).

  • Page 20: Troubleshooting

    Troubleshooting 1. Brakes not working effectively Check the distance between the brake blocks and the Wheel / Rim. Check that the blocks are parallel with the Wheel / Rim. Check for any wear on the brake pads Fine tuning to the brakes can be performed by the adjusters between the brake lever on the handlebars and the brake cable.

  • Page 21: Maintenance

    Maintenance • Battery Maintenance 1.Battery casing 2.Charging socket 3.Battery status button 1. The bike must be charged by our specific charger. Non-standard or a no genuine charger, may cause loss of service life of the battery or failure of the battery and in turn voiding warranty. 2.
  • Page 22 Maintenance 5. Upon opening you EBIKE LSF008 or taking delivery, the battery will be about 80% and being a new product, you will need charge for 3- 10h before being used for the first time (This is very Important) 6. If the bike has been put aside for more than 1 month, the battery would have decreased, so, it is suggested to charge for about 10 hours prior to using.
  • Page 23 Maintenance • Charger Maintenance It is required to carefully check whether rated input voltage of the charger is consistent with network voltage. The battery can be directly charged on the bike, or removed from the bike and charged independently. It should not be charged in cold wet areas.
  • Page 24 Maintenance...

  • Page 25: Charging Instructions

    Charging Instructions 1. Charging should be implemented by the user according to the instructions. Otherwise, all consequences should be assumed by the user independently. 2. Original charger should only be used. 3. Attention should be paid to type and applicable voltage of the battery which is applicable for the charger. Using the incorrect charger may cause irreparable damage.
  • Page 26 • Motor 1.During riding of the EBIKE LSF008, please remember to clean the motor, to make sure it does not overheat. 2. Check the screw of the motor cover, if it is loose, please tighten immediately, to ensure safe riding.

  • Page 27: Warranty

    Warranty •This warranty only applies to the original owner of the our EBIKE LSF008, unless otherwise determined by applicable mandatory legislation. • Proof of purchase is required for all warranty claims. Limited two years warranty Includes: Battery. Battery is warrantied to be free from manufacturer defects in materials and/or workmanship for a 2-year-period from the date of original purchase (For Battery: cycle life or deep charge up to 70% full capacity).
  • Page 28 Warranty Limited one year warranty Includes: Motor, Controller, Dashboard, Charger. These items are warrantied to be free from manufacturer defects in materials and/or workmanship for a period of one year from the payment or invoice date. This warranty does not cover normal wear and tear. This Limited One Year Warranty covers replacement parts ONLY and does NOT cover the cost of shipping or installing the replacement parts.
  • Page 29 Warranty No warranty • Faults caused by usage, maintenance and adjustment of the user without complying with the Instructions provided and or given. • Faults caused by the user’s random disassembly, unauthorised repairs and or any modifications. •Faults caused by improper storage of the user, accidents, or irresistible force, such as flood and firing etc.
