Summary of Contents for GIA DE-GIA0785

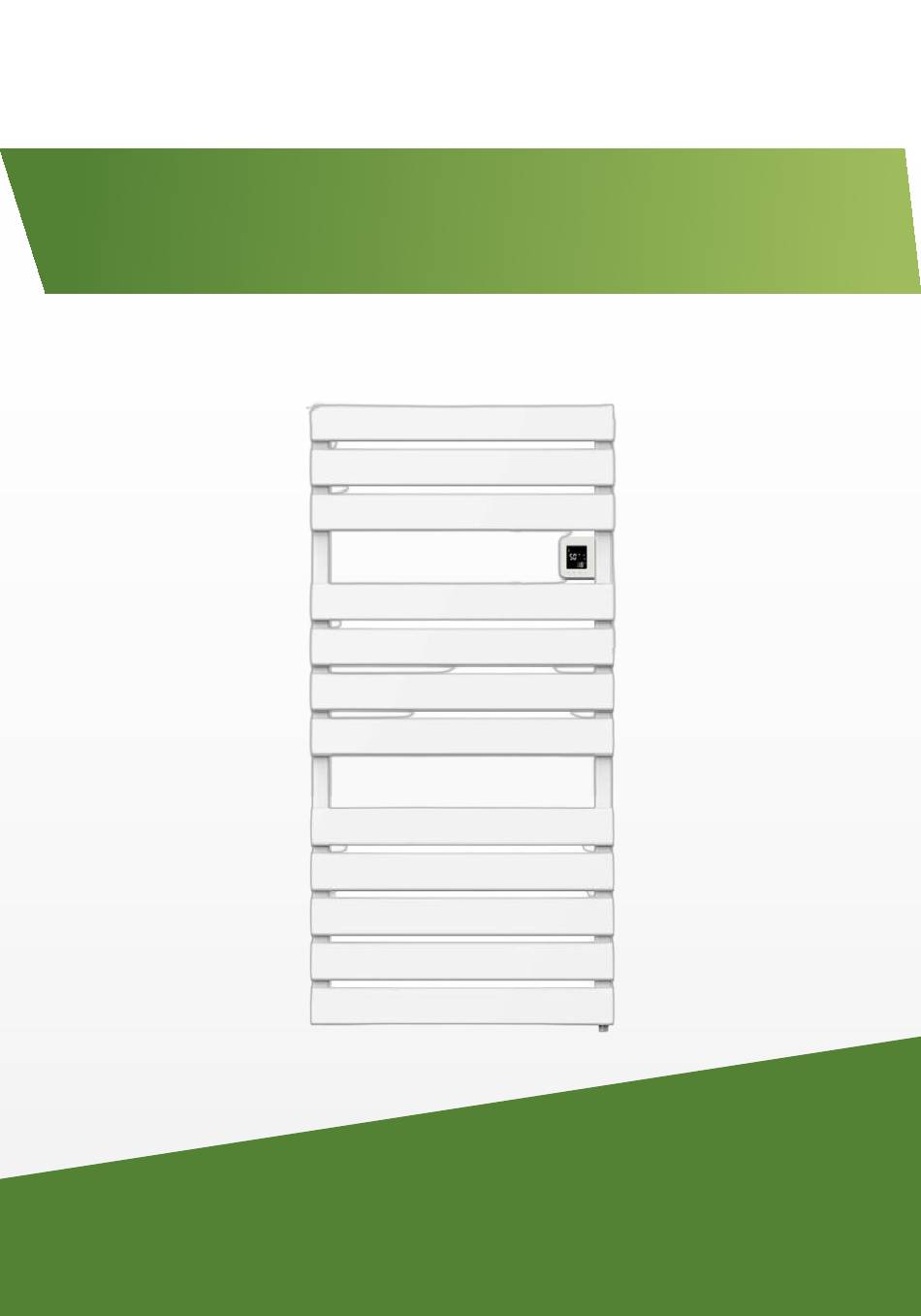

- Page 1 Electric Towel Rail Instruction Manual...
-
Page 2: Table Of Contents
Table of contents 1. Safety & Warnings 2. Technical Specifications 3. Installation Instructions 3.1 Fixings 3.2 Installation 4. Control Panel 4.1 Standby Mode 4.2 Mode Switch 4.3 Child lock 4.4 Supplementary functions 4.5 Reset to Defaults 5. Connecting to WiFi 5.1 Downloading the App 5.2 Connecting to the App 5.3 Adding Devices... -
Page 3: Safety & Warnings
INSTRUCTION MANUAL Read this manual carefully before using or installation the device. Keep the manual for future reference. Warning: This device must be installed by a licensed electrician. 1. SAFETY & WARNINGS • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. -
Page 4: Technical Specifications
• Allow the device to cool down before touching or transporting the device, or attempting maintenance work. • The device must be placed where the switches and controllers cannot be touched by a person in a bathtub or shower. 2. TECHNICAL SPECIFICATIONS Series DE-GIA0785 (780*550mm) Model No. DE-GIA1025 (1100*550mm) Voltage 230V AC / 50Hz... -
Page 5: Fixings
Spacer x 4 Mounting leg x 4 Wall support x 4 Small screw x 4 Bolt x 4 Wall Anchor x 4 Long screw x 4 Product x 1 Distance between the center points of each wall bracket tube. DE-GIA0785 DE-GIA1025... - Page 6 INSTRUCTION MANUAL 3.2 Installation STEP 2 STEP 1 Fix four spacers to four mounting legs, screw down Choose the desired position and mark it with a the bolts with a screwdriver and put the decorative pencil. Then use an electric drill to make four covers on it.
-
Page 7: Control Panel
INSTRUCTION MANUAL 4. CONTROL PANEL Boost Mode Temperature Symbol Heating Mode Program Mode Device is heating Set Frame Temp&Timing Connected to WiFi ECO Mode Child Lock Open Window Detected Ambient Temperature Anti-freeze Comfort Mode Down Button On/Off Mode Change Up Button The controller has below functional modes: 4.1 Standby Mode 4.3 Child unlock... - Page 8 INSTRUCTION MANUAL 4.2.2 Boost Mode • Press the button to enter the boost mode. The device will stay working at the setting boost hours at maximum performance 70°C. The default set is 2H. • Set time can be adjusted by using the buttons.
- Page 9 INSTRUCTION MANUAL 4.4 Supplementary functions The settings menu allows you to enable, disable and configure all the device’s supplementary functions. Press to put thetowel rail into standby mode and hold down for 10 seconds to enter the settings menu. Press button to to switch functions: Temperature compensation(F0) →...
-
Page 10: Connecting To Wifi
INSTRUCTION MANUAL 4.5 Reset to Defaults Press to put the device in standby mode. Press and hold the key for 10 seconds to restore the device to default settings. The full screen will be displayed for 3 seconds and enter to power off state. Press turn on. -
Page 11: Using The App
INSTRUCTION MANUAL Begin connecting and added Enter your WiFi passwor successfully If the device successes to connect, “PS” will be shown on the display. If the device fails to connect, “FL” will be shown on the display. Troubleshooting Problem Action the thermostat sensor has become Er is displaying disconnected... -
Page 12: Choose Mode
INSTRUCTION MANUAL 6.3 Choose Mode Tap the mode button on the interface to choose mode. The five options correspond to the five modes on the control panel. Hot, Boost, Program, Comfort, Eco mode. 6.3.1 Heating mode, Comfort mode & Eco Mode In heating, comfort and Eco mode, simply use the sliding dial to adjust the set room temp.
