  • Page 1 Pro20E 4BW All-in-One (AIO) PC MS-AA8B System G52-AA8B1X1...
  • Page 2: Table Of Contents

    Contents Copyright Notice ������������������������������������������������������������������������������������������������������iii Trademarks �������������������������������������������������������������������������������������������������������������iii Revision ������������������������������������������������������������������������������������������������������������������iii Upgrade and Warranty ��������������������������������������������������������������������������������������������iv Acquisition of Replaceable Parts ����������������������������������������������������������������������������iv Technical Support ���������������������������������������������������������������������������������������������������iv Green Product Features ������������������������������������������������������������������������������������������iv Environmental Policy �������������������������������������������������������������������������������������������� v Chemical Substances Information �������������������������������������������������������������������������� v Battery Information �������������������������������������������������������������������������������������������������� v Safety Instructions ���������������������������������������������������������������������������������������������������vi CE Conformity �������������������������������������������������������������������������������������������������������...
  • Page 3: Copyright Notice

    Preface Copyright Notice The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL� We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents� Our products are under continual improvement and we reserve the right to make changes without notice�...
  • Page 4: Upgrade And Warranty

    If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor� Alternatively, please try the following help resources for further guidance� Visit the MSI website for technical guide, BIOS updates, driver updates and other information via http://www�msi�com/...
  • Page 5: Environmental Policy

    Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products�...
  • Page 6: Safety Instructions

    Safety Instructions ◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the equipment or user’s manual should be noted� Keep the User’s Guide that comes with the package for future reference� Keep this equipment away from humidity and high temperature� Lay this equipment on a reliable flat surface before setting it up.
  • Page 7 Preface Never pour any liquid into the opening that could damage or cause electrical shock� Place the power cord in a way that people are unlikely to step on it� Do not place anything on the power cord� ◙ When installing the coaxial cable to the TV Tuner, it is necessary to ensure that the metal shield is reliably connected to protective earthing system of the building�...
  • Page 8: Ce Conformity

    CE Conformity Hereby, Micro-Star International CO�, LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive� FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules�...
  • Page 9: Rohs Statement

    Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products�...
  • Page 11: Overview

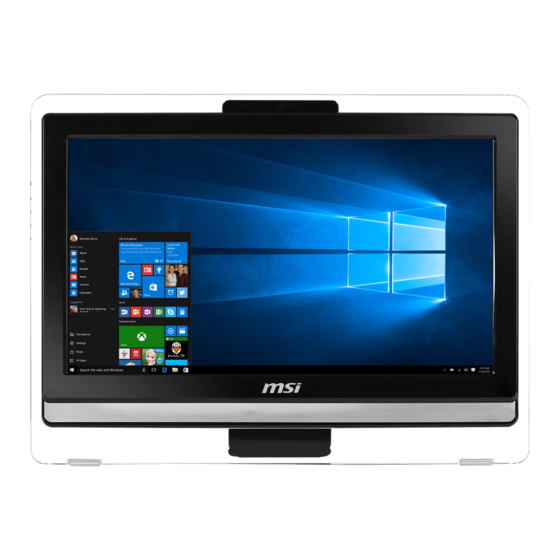

    Overview This system is integrated in design, selecting a stylish appearance with a mirror screen, which displays the simplicity of modern individualism and the comfort of home. With a touchscreen display, flawless audio/video capabilities, and intuitive user interface, it blends technology with life, making computers easier and more fun to use —...
  • Page 12: Packing Contents

    Packing Contents AC/DC Adapter AC Power Cord All-in-One PC Keyboard (Optional) Mouse (Optional) Driver/ Utility Disc User Manual & Quick Guide * Please contact us immediately if any of the items is damaged or missing� * The illustrations are for reference only and your packing contents may slightly vary depending on the model you purchased�...
  • Page 13: System Overview

    Overview System Overview Front View Microphone The built-in microphone can be used for video chatting online� Webcam The built-in webcam with the microphone can be used for picture taking, video recoding, online conferencing and any other interactive applications� LED Indicator (Optional) The LED indicator indicates when it is recording�...
  • Page 14 Rear View Important We suggest that you connect the AC/DC adapter to your AIO PC first and then connect the AC power cord to the socket-outlet for safety concerns�...
  • Page 15 Overview Ventilator The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating� Do not cover the ventilator� Kensington Lock Port This AIO PC provides a Kensington lock port, which allows users to secure the AIO PC in place with a key or some mechanical PIN device and attached through a rubberised metal cable�...
  • Page 16 RJ-45 LAN Jack The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN)� You can connect a network cable to it� Yellow Green/ Orange Color LED State Condition Left Yellow LAN link is not established� On (steady state) LAN link is established�...
  • Page 17 Overview Side View System Power LED The power LED glows when the system is turned on and goes off when the system is shut down� In terms of power saving, the LED blinks in S3 (Suspend to RAM) mode and goes off in S4 (Suspend to Disk) mode. Monitor Power LED The power LED glows when the monitor is turned on and goes off when the monitor is shut down�...
  • Page 18 Gbit/s (SuperSpeed) data transfer rate� USB 3�0 Port (with MSI Super Charger Technology) With MSI Super Charger Technology, not only does it function as normal USB 3�0 port, but it also enables users to charge USB devices even when the system is turned off.
  • Page 19: Component Replacement & Upgrade

    Overview Component Replacement & Upgrade Please note that certain components preinstalled in the product may be upgradable or replaceable by user’s request depending on the models users purchased� For any further information on the product users purchased, please contact the local dealer�...
  • Page 21: Getting Started

    Getting Started This chapter provides you with the information on hardware setup procedures� While connecting peripheral devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity�...
  • Page 22: Safety & Comfort Tips

    Safety & Comfort Tips The AIO PC is a portable platform that allows you to work anywhere� However, choosing a good workspace is important if you have to work with your PC for a long period of time� 1� Your work area should have enough illumination� 2�...
  • Page 23: Hardware Setup

    Getting Started Hardware Setup Positioning Your System 1. Place your system on a flat and steady surface such as a table or desk. 2� Pull the stand open and tilt the monitor� To stabilize the system, make sure that the stand has been pulled until the mark on its hinge aligns to the edge of the hinge cover�...
  • Page 24 Connecting the AC Power 1� Assemble the AC/DC adapter and the AC power cord� 2� Plug the DC end of the adapter to the AIO PC� 3� Plug the male end of the AC power cord to the electrical outlet� Important We suggest that you connect the AC/DC adapter to your AIO PC first and then connect the AC power cord to the socket-outlet for safety concerns�...
  • Page 25: System Operations

    System Operations This chapter provides you with essential information on system operations� Important All information is subject to change without prior notice�...
  • Page 26: Power Management

    Power Management Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity�...
  • Page 27 System Operations Energy Saving Tips: ■ Turn off the monitor by pressing the monitor power button after a period of user inactivity� ■ Tune the settings in Power Options under Windows OS to optimize your PC’s power management� ■ Install power saving software to manage your PC’s energy consumption� ■...
  • Page 28: Network Connection (Windows 10)

    Network Connection (Windows 10) Wired Network 1� Right-click [Start] and select [Control Panel] from the list� 2� Select [View network status and tasks] under [Network and Internet]� 3� Select [Set up a new connection or network]�...
  • Page 29 System Operations 4� Choose [Connect to the Internet] and click [Next]� 5� Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password� 6� Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection�...
  • Page 30 Wireless Network 1� Go to [Start] , click [Settings] and select [Network and Internet]� 2� A list of available WLAN connections pops up� Choose a connection from the list� 3� To establish a new connection, select [Network and Sharing Center]� 4�...
  • Page 31: System Recovery (Windows 10)

    System Operations System Recovery (Windows 10) The purposes for using the System Recovery Function may include: ■ Restore the system back to the initial status of original manufacturer’s default settings� ■ When some errors have occurred to the operating system in use� ■...
  • Page 32 Reset this PC 1� Go to [Start] , click [Settings] and select [Update and security]� 2� Select [Recovery] and click [Get started] under [Reset this PC] to start the system recovery� 3. The [Choose an option] screen pops up. Choose between [Keep my files] and [Remove everything]�...
  • Page 33 System Operations Keep my files 1. Select [Keep my files]. 2� The [Your apps will be removed] screen shows a list of apps that will need to be reinstalled from the web or installation discs� Click [Next] to continue� 3� The next screen will show the changes to be made during the process� Click [Reset] to start the system reset�...
  • Page 34 Remove everything 1� Select [Remove everything]� 2� If you have multiple hard drives, a screen will pop up, asking you to choose between [Only the drive where Windows is installed] and [All drives]� 3. Then select between [Just remove my files] and [Remove files and clean the drive]. 3-10 4�...
  • Page 35: Troubleshooting

    Troubleshooting...
  • Page 36 My system does not start� 1� Check if the system is connected to an electrical outlet and it is turned on� 2. Check if the power cord and all cables are connected firmly. When I turn on my computer, the message “Operating System not found” appears or Windows does not start�...
  • Page 37 Troubleshooting System speakers do not work� 1� Check the master volume setting in the Audio Mixer� 2� If you are using an application that has its own volume control, check if the volume is muted� 3� If you have connected an audio cable to the Headphone jack, disconnect it� 4�...
