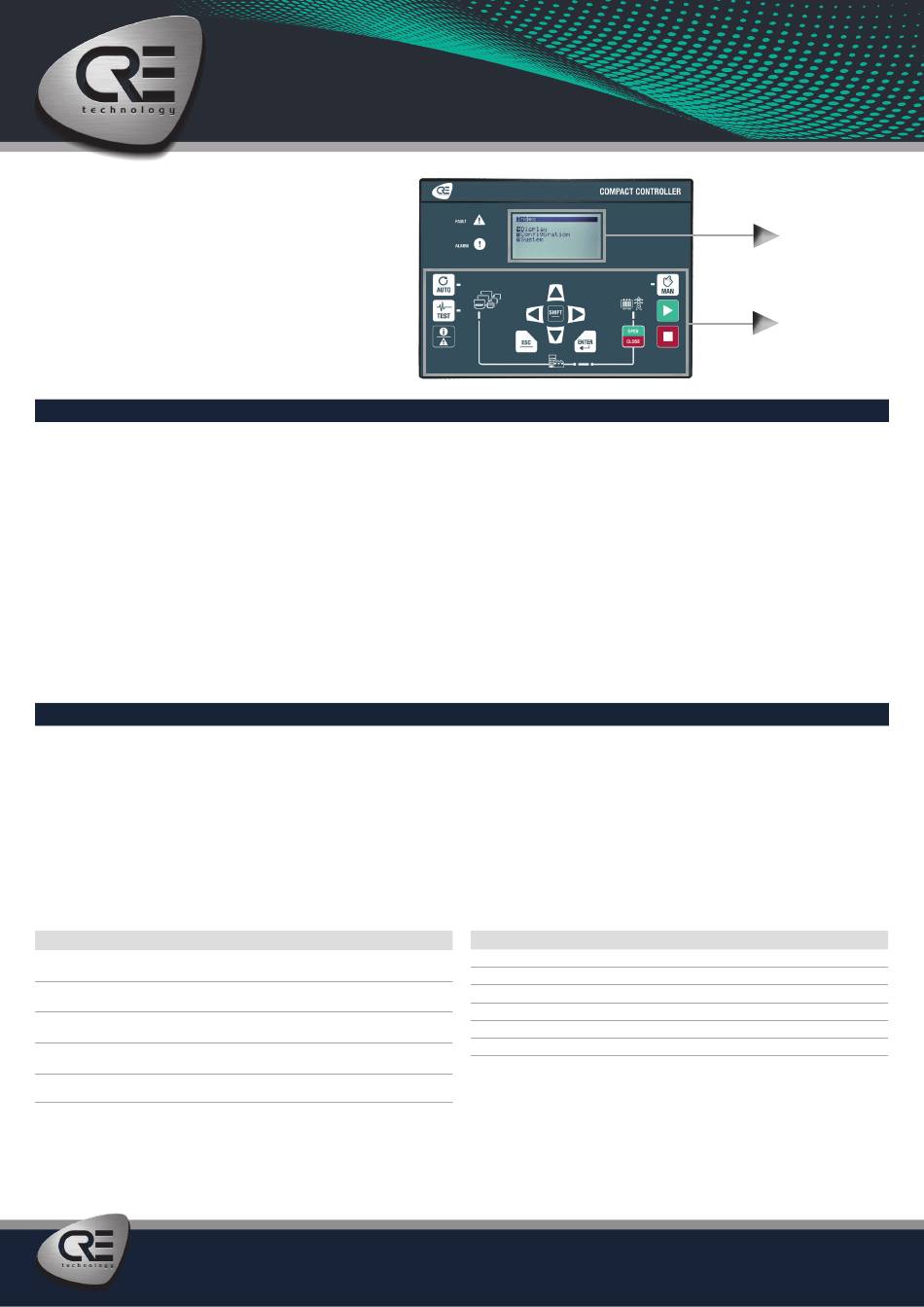

CRE MASTER COMPACT 1B Quick Start

The purpose of this document is to allow a fast and easy
handling of the product, nevertheless it is essential that you
refer to the technical documentation (latest version always
available on our website www.cretechnology.com) for the
commissioning.
For any further information on this product, please contact
your local distributor or agent or directly our support team.
• All our products have a 1 year warranty
• Help desk: +33 492 38 86 86
• E-mail: support@cretechnology.com
OPERATIONNAL MODES

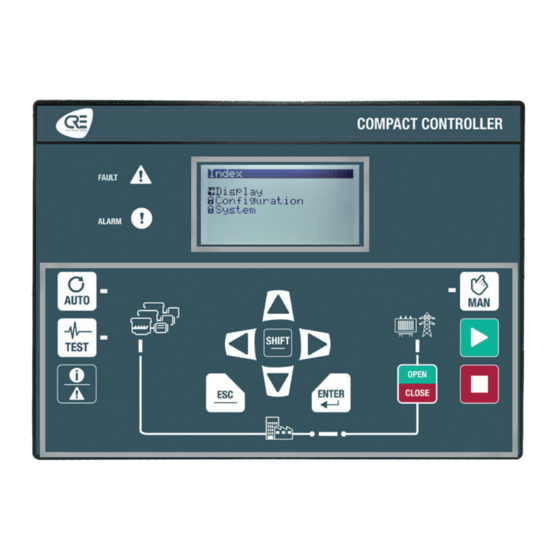

The controller can be configured and controlled using the buttons of the front panel:
• The arrows, ESC and ENTER buttons are dedicated to navigation for displaying measurements and parameters, and for configuring the controller.
• The SHIFT button is used to reset faults when combined with the alarms/faults button
• The AUTO button switches to a mode that makes the controller operate the installation in a fully automatic mode according to its settings and configuration, external action to start : "re-
mote start" digital input or "mains failure" by ModBus TCP.
• The TEST button switches to a mode that simulates the start of the Auto mode with the requested sequences. To exit from the TEST mode, simply press AUTO or press MAN mode.
• The MAN button switches to a mode allowing you to manage your installation with the front panel buttons manually: you will be able to start/stop the power plant, open/close the breaker
while still benefiting from the active protections of the controller and the automatic synchronization and load/unload sequences.
MENUS
When the controller is powered up, the home page appears on the screen. The content of this page is dynamic, depending on the status of the power plant. Press "ENTER" to access the index page of
available menus:
• Supervision : Use the arrow buttons to select this menu, then press "ENTER" to access the supervision pages.
• Settings : Use the arrow buttons to select this menu, then press "ENTER" to access the settings pages. A password is required to define the operating mode. To enter the password: Use
the "↑" and "↓" buttons to change character, move to the next/previous character with the "→" and "←" buttons, confirm password by pressing "ENTER". The operating modes are the
following:
• Standard: Provides access to the basic settings recommended to start commissioning your application. The default password is "1".
• Advanced: Provides access to all settings for optimum application commissioning. For complex settings not available on the controller front panel, use the i4Gen Suite software (Easy-
Flex, scheduler, alternative selection, etc.). The default password is "1234".
THE DIFFERENT MENUS WILL APPEAR AS FOLLOW
SUPERVISION
Power plant electrical information: kW /kVAR, nominal values, breakers
POWER PLANT
status and generator state.
BUS Bus electrical measures: frequency, voltage, powers and power factor.
Mains electrical measures: frequency, voltage, powers, currents and
MAINS
power factor.
Synchronization measures and checks: phase, frequency, voltage, phase
SYNCHRONIZATION
sequence.
INPUTS/OUTPUTS Real time displays for digital I/Os, and CANopen digital I/Os.
Information about hardware and firmware: serial number, firmware
ABOUT
version.
CRE TECHNOLOGY - 130, allée Charles-Victor Naudin - Zone des Templiers - SOPHIA ANTIPOLIS - 06410 BIOT - FRANCE
Phone : + 33 (0)4 .92.38.86.82 - www.cretechnology.com - info@cretechnology.com
Document index: D
MASTER COMPACT 1B
SETTINGS (*LEVEL 2 ONLY)
DYNAMIC
GENERAL
ELECTRICAL
INPUTS/OUTPUTS
PROTECTIONS*
PROGRAMMING*
SYSTEM
Quick start
PID settings.
Application, timers, CAN and events settings.
Bus, mains, synchronization and power management settings.
Digital inputs, analog inputs, digital/relay outputs and breaker settings.
Bus, mains and other protections settings.
Modification by variable number.
Language, screen setup, date/time, Ethernet and password settings.
ACTIVE DISPLAY
OPERATING
MODES/CONTROL
BUTTONS
