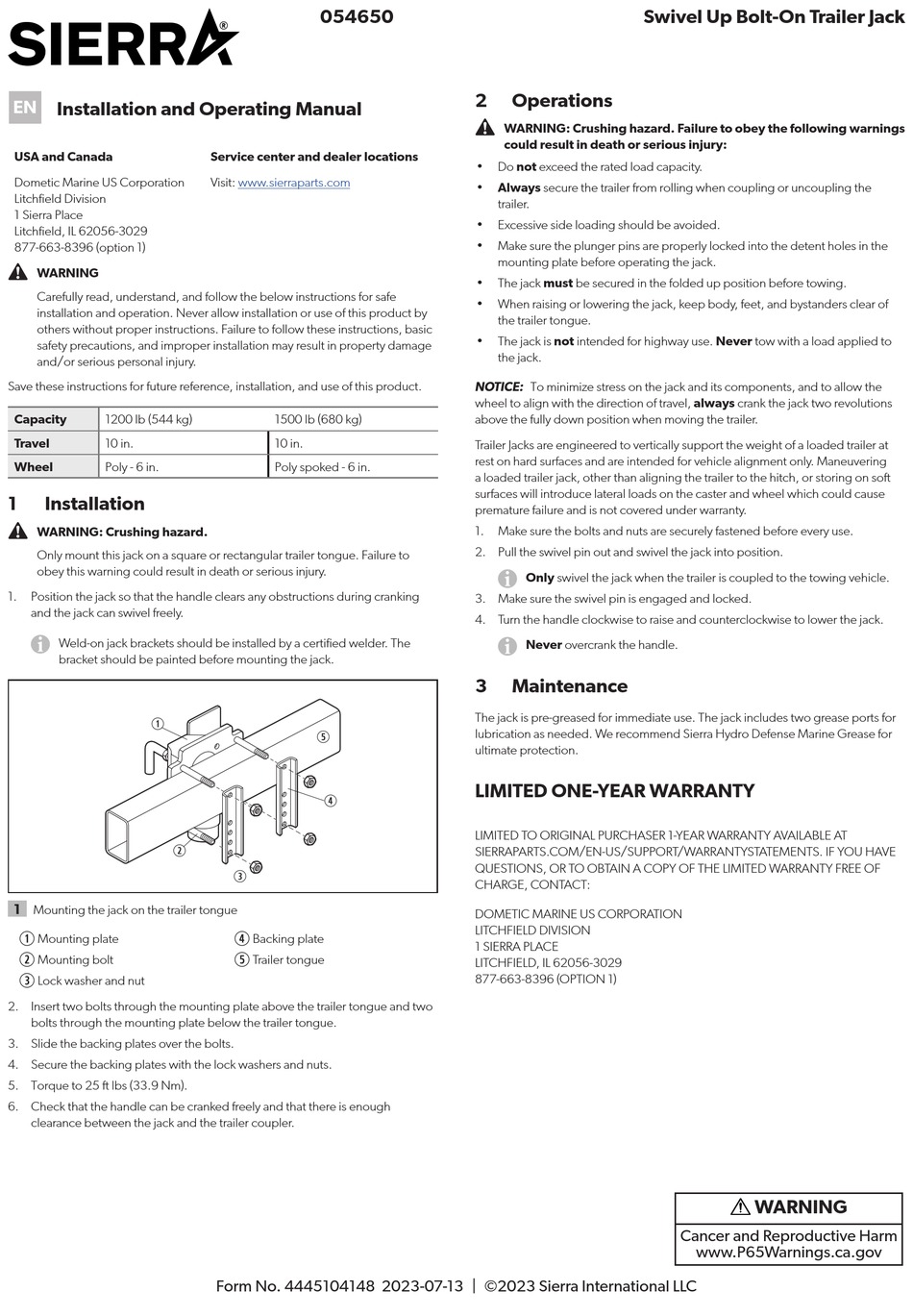

Sierra 054650 Installation And Operating Manual

EN Installation and Operating Manual
USA and Canada
Dometic Marine US Corporation
Litchfield Division
1 Sierra Place
Litchfield, IL 62056-3029
877-663-8396 (option 1)

WARNING
Carefully read, understand, and follow the below instructions for safe
installation and operation. Never allow installation or use of this product by
others without proper instructions. Failure to follow these instructions, basic
safety precautions, and improper installation may result in property damage
and/or serious personal injury.
Save these instructions for future reference, installation, and use of this product.
Capacity 1200 lb (544 kg)
Travel 10 in.
Wheel Poly - 6 in.
1

Installation


WARNING: Crushing hazard.
Only mount this jack on a square or rectangular trailer tongue. Failure to
obey this warning could result in death or serious injury.
1. Position the jack so that the handle clears any obstructions during cranking
and the jack can swivel freely.
I
Weld-on jack brackets should be installed by a certified welder. The
bracket should be painted before mounting the jack.
q
w
1
Mounting the jack on the trailer tongue
q Mounting plate
w Mounting bolt
Lock washer and nut
e
2. Insert two bolts through the mounting plate above the trailer tongue and two
bolts through the mounting plate below the trailer tongue.
3. Slide the backing plates over the bolts.
4. Secure the backing plates with the lock washers and nuts.
5. Torque to 25 ft lbs (33.9 Nm).
6. Check that the handle can be cranked freely and that there is enough
clearance between the jack and the trailer coupler.
054650
Service center and dealer locations
Visit: www.sierraparts.com
1500 lb (680 kg)
10 in.
Poly spoked - 6 in.
t
r
e
r Backing plate
t Trailer tongue
Form No. 4445104148 2023-07-13 | ©2023 Sierra International LLC
Swivel Up Bolt-On Trailer Jack
2

Operations


WARNING: Crushing hazard. Failure to obey the following warnings
could result in death or serious injury:
• Do not exceed the rated load capacity.
• Always secure the trailer from rolling when coupling or uncoupling the
trailer.
• Excessive side loading should be avoided.
• Make sure the plunger pins are properly locked into the detent holes in the
mounting plate before operating the jack.
• The jack must be secured in the folded up position before towing.
• When raising or lowering the jack, keep body, feet, and bystanders clear of
the trailer tongue.
• The jack is not intended for highway use. Never tow with a load applied to
the jack.
NOTICE: To minimize stress on the jack and its components, and to allow the
wheel to align with the direction of travel, always crank the jack two revolutions
above the fully down position when moving the trailer.
Trailer Jacks are engineered to vertically support the weight of a loaded trailer at
rest on hard surfaces and are intended for vehicle alignment only. Maneuvering
a loaded trailer jack, other than aligning the trailer to the hitch, or storing on soft
surfaces will introduce lateral loads on the caster and wheel which could cause
premature failure and is not covered under warranty.
1. Make sure the bolts and nuts are securely fastened before every use.
2. Pull the swivel pin out and swivel the jack into position.
I
Only swivel the jack when the trailer is coupled to the towing vehicle.
3. Make sure the swivel pin is engaged and locked.
4. Turn the handle clockwise to raise and counterclockwise to lower the jack.
I
Never overcrank the handle.
3 Maintenance
The jack is pre-greased for immediate use. The jack includes two grease ports for
lubrication as needed. We recommend Sierra Hydro Defense Marine Grease for
ultimate protection.
LIMITED ONE-YEAR WARRANTY
LIMITED TO ORIGINAL PURCHASER 1-YEAR WARRANTY AVAILABLE AT
SIERRAPARTS.COM/EN-US/SUPPORT/WARRANTYSTATEMENTS. IF YOU HAVE
QUESTIONS, OR TO OBTAIN A COPY OF THE LIMITED WARRANTY FREE OF
CHARGE, CONTACT:
DOMETIC MARINE US CORPORATION
LITCHFIELD DIVISION
1 SIERRA PLACE
LITCHFIELD, IL 62056-3029
877-663-8396 (OPTION 1)
WARNING
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
