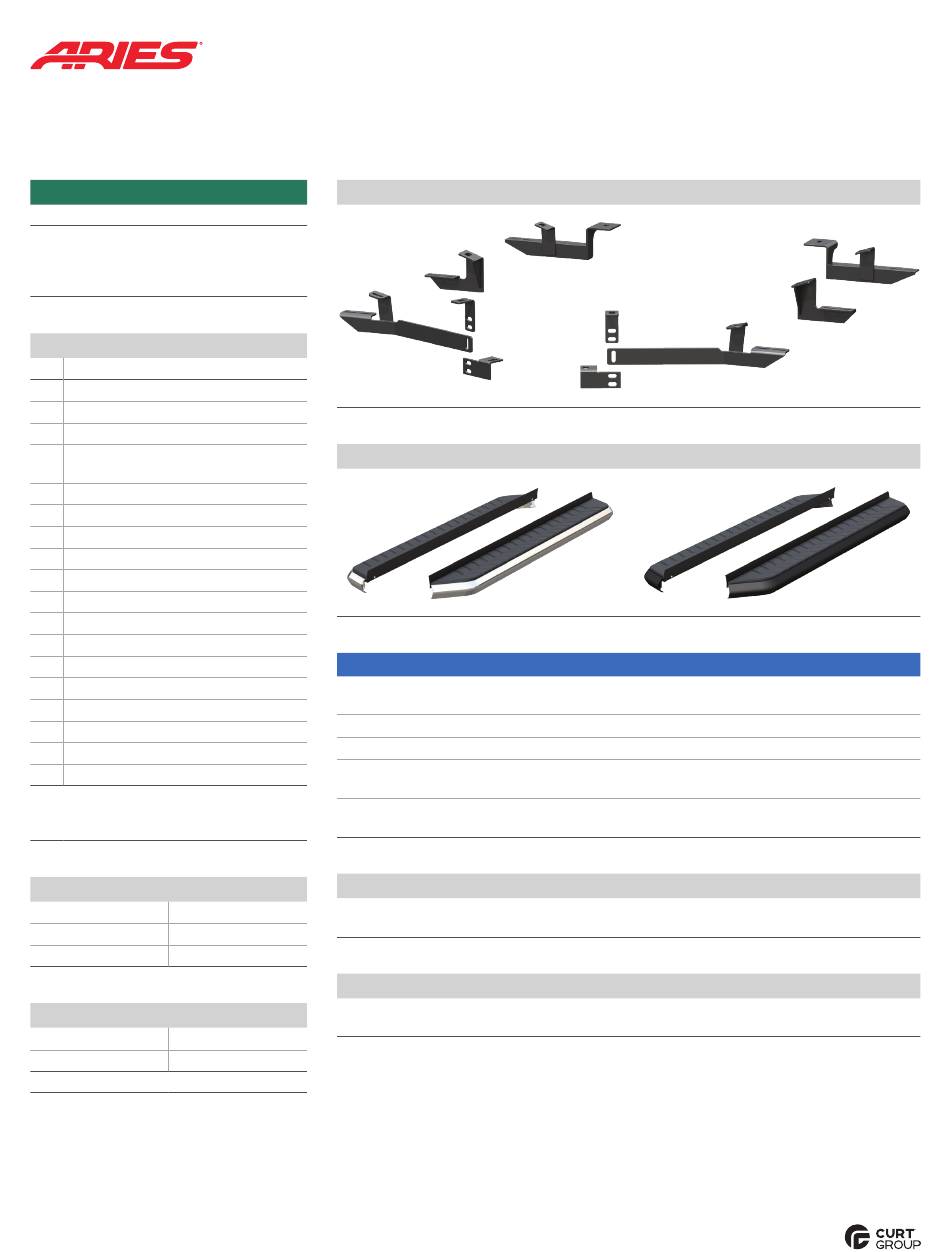

INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Parts List
Qty Description
1
Driver / left running board
1
Passenger / right running board
2
Mounting bracket, front
2
Mounting bracket,
front adapter 2014-2019
2
Mounting bracket, front adapter 2020
2
Mounting bracket, middle
2
Mounting bracket, rear0
6
T-bolt, 43mm tab
2
T-bolt, 50mm tab
2
T-bolt, 60mm tab
10
Flat washer, M10
10
Lock washer, M10
10
Hex nut, M10
10
Bolt retainer, plastic
8
Flat washer, M8
4
Lock washer, M8
4
Hex nut, M8
4
Hex bolt, M8 x 25mm
* Running boards are supplied with additional
hardware. Quantities listed are in addition
to the standard supplied hardware.
Tools Required
Ratchet
Socket, 13 mm
Flathead screwdriver Socket, 17 mm
Wrench, 13 mm
--
Torque Specifications
M8 bolt
7 ft-lbs.
M10 bolt
16 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM
Product Photo
AeroTread
NOTICE
Visit www.ariesautomotive.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of your product should be performed
to ensure all hardware and / or components remain secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
ARIES stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
•
PRODUCT SUPPORT: 877.287.8634
Running Boards (not included)
™
Rear
Front
•
2051154-INS-RC
•
09/17/2020
2051154
Rear
Middle
Front
Front
•
ECN7238
•
PAGE 1
Rear
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for curt ARIES 2051154
Summary of Contents for curt ARIES 2051154
- Page 1 INSTALLATION MANUAL 2051154 Level of Difficulty Product Photo Easy Rear Installation difficulty levels are based on time and effort involved and may vary depending on the installer level of expertise, condition of the Middle vehicle and proper tools and equipment. Front Parts List Qty Description...
- Page 2 Step 1 Starting on the driver side, locate the three mounting locations on the inside of the rocker panel. Locate the front bracket for the driver side. Step 2 Locate the hole plug on the front driver-side rocker panel and remove it with a flathead screwdriver.
- Page 3 Step 5A - 1994 - 2019 Models Secure the 1994 - 2019 adapter bracket to the front bracket with two M8 x 25mm bolts, four M8 flat washers, two lock washers and two M8 hex nuts as shown. Step 5B - 2020 Model Secure the 2020 adapter bracket to the front bracket with two M8 x 25mm bolts, four M8 flat washers, two lock washers...
- Page 4 Step 8 Insert a 43mm tab T-bolt into the round hole and use a plastic retainer to hold it in place. Place the middle bracket onto the vehicle and secure with a M10 hex nut, M10 lock washer and M10 flat washer. Snug the hardware, but do not fully tighten.
- Page 5 Step 12 Attach the running board to the brackets using six M8 bolts, six M8 lock washers, six M8 flat washers and six M8 nuts. Snug the hardware, but do not fully tighten. Adjust and level the running board, centering it between the front and rear wheel wells.
