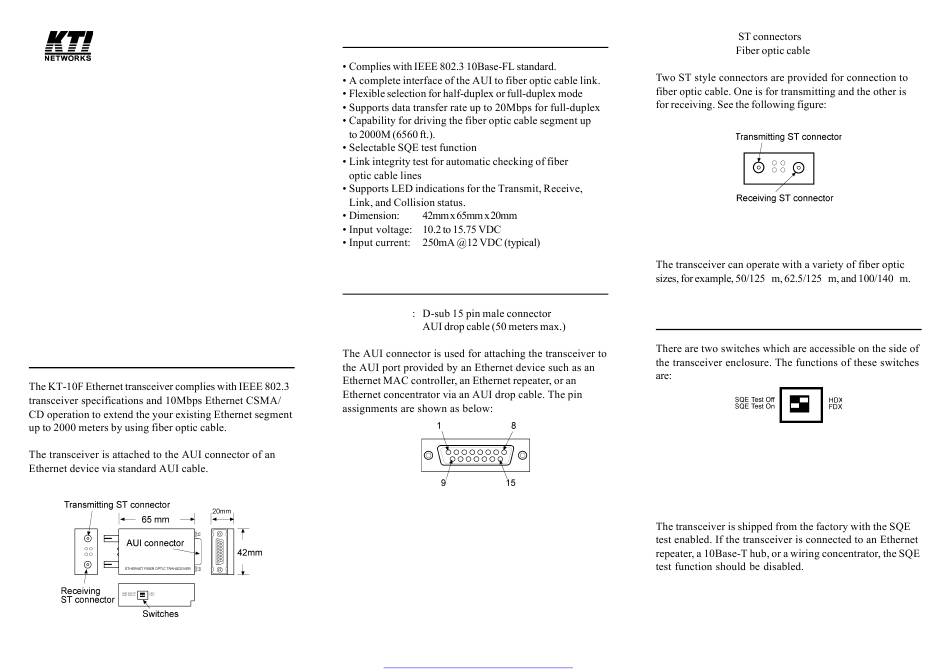

Installation Guide
Ethernet Fiber Optic Transceiver
Model: KT-10F v2
DOC.G990126-KT10F-V2-K
P/N: 750-0125-001
General Description
Features
Connectors & Cables
AUI connection
Pin Assignments of the AUI (DB15) Connector
Pin
Name
Pairs
Use
3
DO +
Transmit
Data Out (+)
10
DO -
Pair
Data Out (-)
1 1
DO S
Data Out Shield
5
DI +
Receive
Data In +
12
DI -
Pair
Data In -
4
DI S
Data In Shield
7
CO +
Optional
Control Out +
15
CO -
Pair
Control Out -
8
CO S
Control Shield
2
CI +
Collision
Control In +
9
CI -
Pair
Control In -
1
CI S
Control Shield
6
VC
Power
Voltage Common
13
VP
Pair
Voltage Plus
14
VS
Voltage Shield
Get other manuals https://www.bkmanuals.com
Fiber connection:
Fiber mode: multimode
Wavelength: 850µm
µ
µ
Setting Switches
SW#
Setting
Function
SW1
On
Enable SQE test (factory default)
Off
Disable SQE test (for repeater device)
SW2
On
Full-duplex mode
Off
Half-duplex mode (factory default)
Important:
µ
