Luverne 571513 Installation Manual

INSTALLATION MANUAL
This is the first of two manuals
required to complete this installation.
The second manual is included with
your Impact rear bumper guard.
™
Level of Difficulty
Moderate
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.

Parts List

Qty Description
1 Mounting bracket, driver side
1 Mounting bracket, passenger side
2 T-bolt, 1/2"
2 Flat washer, 1/2"
2 Nylock nut, 1/2"
4 Hex bolt, M10 x 1.25 x 40mm,
grade 8.8
4 Flat washer, M10
4 Lock washer, M10

Tools Required

Ratchet Torque wrench
Socket, 16mm Wrench, 16mm
Socket, 17mm Torx bit, T-25
Socket, 3/4" --

Torque Specifications

M10 bolt 18 ft-lbs.
1/2" bolt 57 ft-lbs.
Use above torque setting unless otherwise noted
LUVERNETRUCK.COM
•

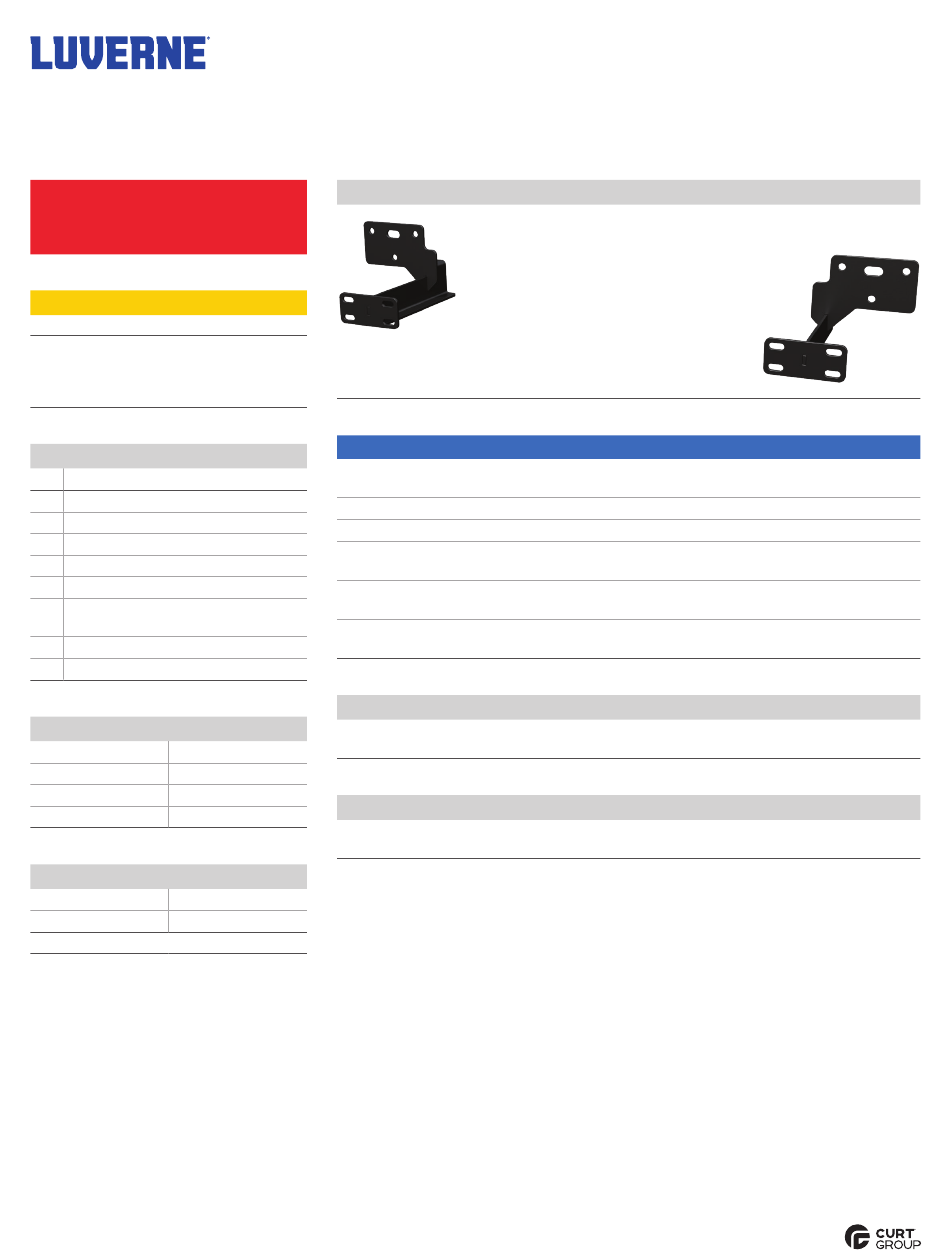

Product Photo
NOTICE
Visit www.luvernetruck.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Shock assemblies need to be greased before use. Inspect and grease
shock assemblies periodically to ensure smooth and quiet operation.
Periodic inspection of your product should be performed
to ensure all hardware and / or components remain secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.

Maintenance

Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.

Product Registration and Warranty

LUVERNE stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
PRODUCT SUPPORT: 877.287.8634 • 571513-INS-RA • 02/09/2021 • ECN7890 • PAGE 1
