Summary of Contents for SMW Ku-band

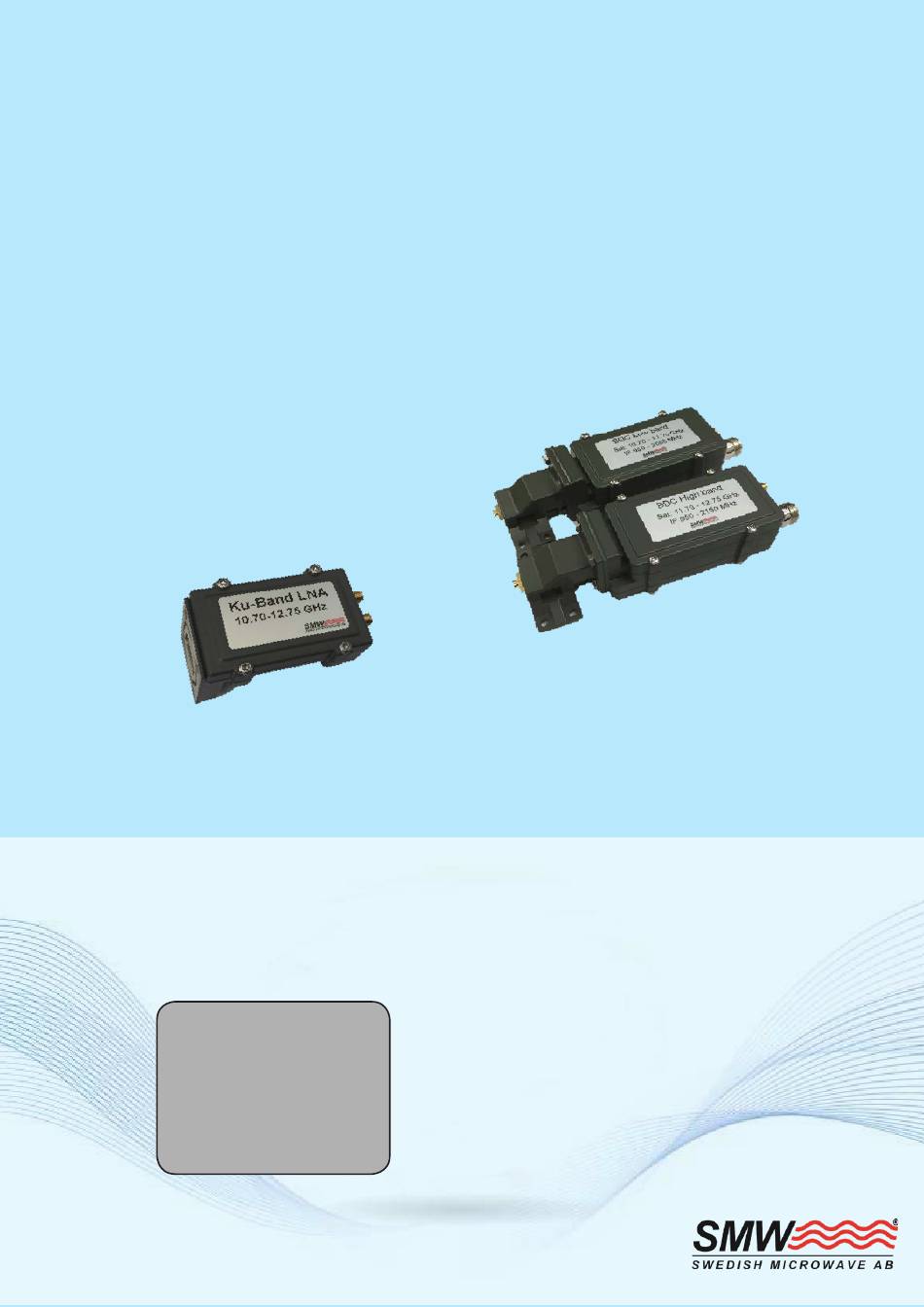

- Page 1 USER GUIDE Ku-band Dual system Please read and un- derstand the contents of this USER GUIDE before attempting to connect or use the system!
- Page 2 3. Installation instructions 4. Troubleshooting 1. Description 3. Installation instructions SMW Ku-band Dual system is a system including Ku- Unpacking band LNA, cables and BDCs to cover the frequency range 10.70 to 12.75 GHz or by request. Please check the contents of your shipment upon receipt...
- Page 3 continue, Mounting. Example: Cables shall be mounted according to Fig. 1 regarding A - Frequency 10.70 - 11.70 GHz, LO 9.75 GHz cable lengths to avoid mismatch between LNA, splitters and BDCs. B - Frequency 11.70 - 12.75 GHz, LO 10.60 GHz See Fig.
- Page 4 Fig. 2...
- Page 5 Spare parts as LNA, BDC an HF cables can be ordered separately. Please, include serial number(s) of the original part with any spare part request. For factory service, contact SMW for an RMA number before returning any material. Material returned without an RMA number will be refused.
- Page 6 LO stability and low simultaneous reception phase noise. Any LO frequencies can be combined without of Low & High Ku-Band spuriouses e.g. Low band 10.0 GHz & High band 11.3 GHz. The standard solution consists of one LNA and two Block Down converters including RF and DC cables 3-6 m.
- Page 7 S-59161 Motala SWEDEN Phone: +46 141 216135 info@smw.se www.smw.se SMW DLNBDKU, Rev. 04 (C) 2018-12 Specifications are subject to change without notice. General Terms: Orgalime S 2012. Products from Swedish Microwave AB are made for commercial use unless otherwise specified.
