- Page 1 Model 34 Talent Amplifier User Guide Issue 1, August 2005 This User Guide is applicable for serial numbers: M34-00151 and later Copyright © 2005 by Studio Technologies, Inc., all rights reserved www.studio-tech.com 50163-0805, Issue 1...
- Page 2 This page intentionally left blank.

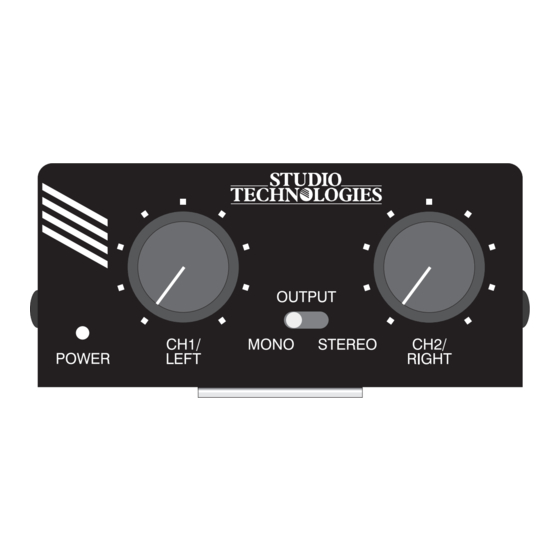

- Page 3 Model 34 Talent Amplifier Introduction The Model 34 is intended for use by on-air broadcast and production support person- The Model 34 Talent Amplifier is a self- nel. The unit provides two user-accessible contained listen-only “belt pack” unit that rotary level controls and an output mode drives talent earpieces or headsets.
- Page 4 As expected, connecting and using the type of IFB or intercom circuit that’s the Model 34 is quite simple. The IFB or been connected to the unit, as well as the party-line intercom circuit that is going to specific type of headset or earpiece being provide the unit’s power and audio signals...
- Page 5 The output mode select switch allows associated with an IFB “feed.” If a “dual- the Model 34 to be used as a standard muff” headset is used in this application stereo/2-channel listen-only unit, or to the Model 34’s mode switch should be set...
- Page 6 Model 34 is quite efficient sleeve leads which will only connect to the in its use of operating power. During Model 34’s left output. If the audio source normal operation the current draw is is arriving on pin 2 of the IFB circuit, the nominally 20 milliamperes.
- Page 7 Distortion (THD+N): 0.03%, 1 kHz, 150 ohm load or channel 2 audio (dual-channel circuits) Options: Model 36 Mounting Adapter allows Power Requirement: 18-35 volts DC, 20 mA Model 34 to be permanently mounted nominal, 45 mA maximum with one output Dimensions (Overall): channel shorted at full level 3.25 inches wide (8.3 cm)
