Giant P208 Operating Instructions/ Repair And Service Manual
  1. Manuals
  2. Brands
  3. Giant Manuals
  4. Control Unit
  5. P208 Repair and
  6. Operating instructions/ repair and service manual

Giant P208 Operating Instructions/ Repair And Service Manual

Pump with brass valve retainers
Hide thumbs Also See for P208:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Model
P208-B

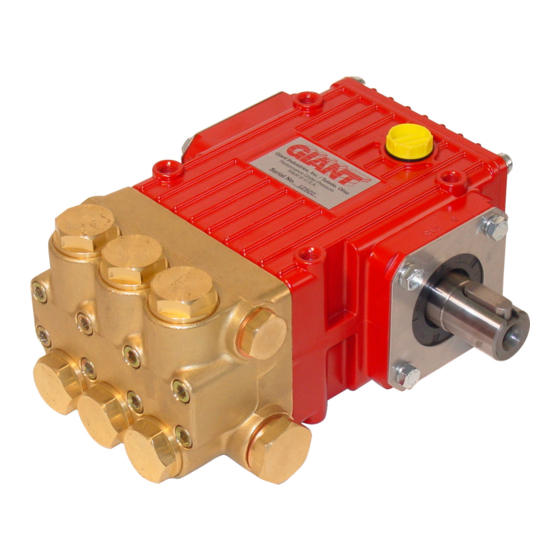

P208 Pump with Brass Valve Retainers
Contents:
Installation Instructions:
Pump Specifications:
Exploded View:
Parts List/Repair Kits:
Torque Specifications:
Repair Instructions:
Preventative Maintenance/
Recommended Spare Parts List:
Dimensions:
Warranty Information:
Triplex Ceramic
Plunger Pump
Operating Instructions/
Repair and Service
Manual
page 2
page 3
page 4
page 5
page 5
pages 6-7
page 7
back page
back page

Advertisement

loading
Need help?

Need help?

Do you have a question about the P208 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Giant P208

Summary of Contents for Giant P208

  • Page 1 Model Triplex Ceramic Plunger Pump Operating Instructions/ Repair and Service P208-B Manual P208 Pump with Brass Valve Retainers Contents: Installation Instructions: page 2 Pump Specifications: page 3 Exploded View: page 4 Parts List/Repair Kits: page 5 Torque Specifications: page 5...
  • Page 2 500 operating hours, after 1 year if used less. Giant Plunger Pumps are suitable for pump- ing clean water and other non-agressive or Caution when operating in damp places or abrasive media with a specific weight similar to with high temperature fluctuations.
  • Page 3 Refer to the repair instructions as necessary for the proper assembly se- quence. HORSEPOWER RATINGS: P208 HORSEPOWER REQUIREMENTS The rating shown are the power re- quirements for the pump. Gas RPM GPM 1000 PSI 1500 PSI 2000 PSI 2500 PSI* engine power outputs must be 250 0.14...
  • Page 4 Exploded View - P208-B...
  • Page 5 P208-B Parts List ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. 08300C Crankcase 08442 Wrist Pin 06773 Oil Dipstick with O-Ring 08356 Oil Seal 08302 Crankcase Cover, Short 06645 Seal Case 08302-L Crankcase Cover, Long 08443 O-Ring 07190...
  • Page 6 Repair Instructions - P208-B PUMP NOTE: Always take time to lubricate all metal and nonmetal parts with a light film of oil before reassembly. This step will ensure proper fit, at the same time protecting the pump nonmetal parts (i.e., the elastomers) from cutting and scoring.
  • Page 7 Replace the six o-rings (31) and the six valve assemblies (32X). Now replace the six valve plug o- rings (33). Apply one drop of Loctite 243 to the valve plugs (32) and tighten to 55 ft.-lbs. (75 Nm). For maintenance of the gear end of your pump contact Giant Industries or your local distributor. Phone: (419) 531-4600 NOTE: Contact Giant Industries for Service School Information.
  • Page 8 Liability under this warranty is on all non-wear parts and limited to the replacement or repair of those products returned freight prepaid to Giant Industries which are deemed to be defective due to workmanship or failure of material. A Returned Goods Authorization (R.G.A.) number and completed warranty evaluation form is required prior to the return to Giant Industries of all products under warranty consideration.
