NEBO NEB-LSP-0013 Use And Care Manual

MODEL # NEB-LSP-0013
Removable extension
that can be removed
or added to shorten or
make the unit taller.
Light Body (1)
A

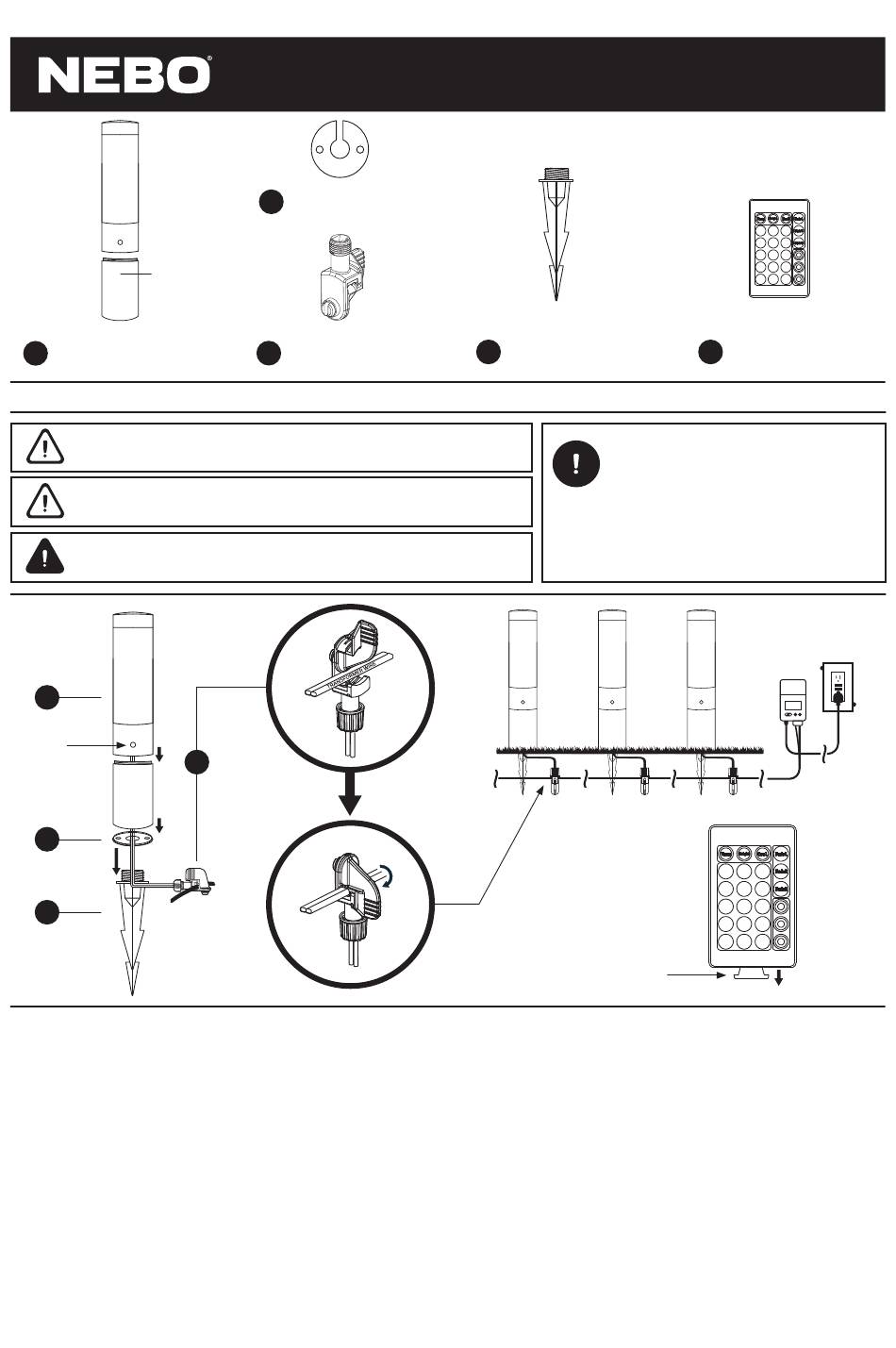

ASSEMBLY AND INSTALLATION
WARNING: Never use a hammer to insert the light into the ground.
WARNING: The wire connector (C) contacts have sharp edges for piercing the
main low voltage cable. To avoid injury, do not touch the metal contacts.
CAUTION: The wire from low voltage power unit should be 12-18 AWG type
underground Low Energy Circuit Cable.
A
1
B
D
1. Preparation
• Before beginning assembly of product, make sure all parts
are present. Compare parts with package contents list. If
any part is missing or damaged, do not attempt to assemble
the product.
• Estimated installation time: 10-15 minutes.
• No Tools Required for Assembly.
2. Assembly
• Screw together the light body (A) and the ground stake (D)
as shown above. Ensure the wire goes through the center
of the stake.
3. Installation
• Determine the location of your light. Dig a small starter hole
in the ground with a screw driver or trowel.
• Press the stake into the hole until the light is secure, but
can still be adjusted.
COLOR-CHANGING BOLLARD
Fixture Plate(1)
B
Connector Clip (1)
C
C
Ground Stake (1)
D
IMPORTANT:
•
•
•
•
(Power Pack Sold Separately)
• Dig a small trench from the light to the transformer wire.
• Secure the connector clip (C) to the transformer wire, as
shown above.
• Test the connection by turning on the lights. Make any
desired adjustments.
• Secure the light in the ground and fill in the trenches
with dirt.
4. Remote/ Color Mode
• Prior to using the remote, remove the pull tab (2) at the
base of the romote control to allow battery contact.
• Press the buttons on the remote to select the desired mode
OR push button (1) on the fixture bollard to select desired
color mode. Note: must be within 2ft for the remote to
connect.
• Select from 15 color options, 3 white temperatures options,
3 holiday options or 3 fade options.
USE AND CARE GUIDE
Remote (1)
E
Do not submerge the fixture in water.
Do not install the fixture within
10 ft. of water.
The landscape wire can also be
hidden under surface.
Protect the wiring by routing it in
close proximity to the light fixture,
or next to a building structure.
