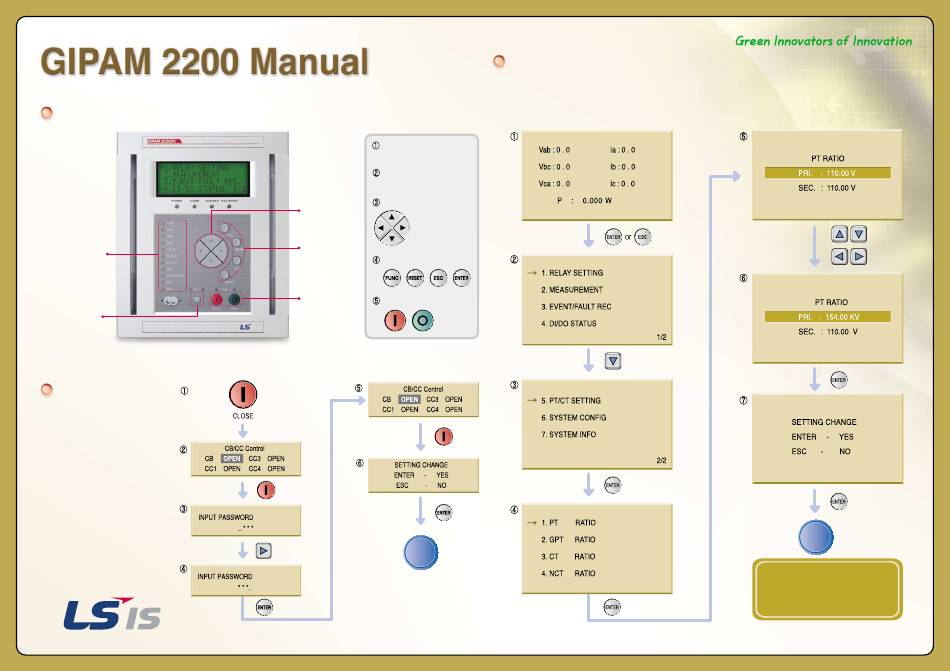

LSIS GIPAM 2200 Manual

Front View

① ① Trip Assign LED
② ② Remote / Local

CB ON/OFF

* If there is not any command
inputting for within 15
minutes, the LCD back light
would be turned off.
* After turned off, it is needs
to input password.
Trip Assign LED
- Fault Indication
Remote /
Local transfer key
Direction key
③ ③ Direction
- Moving cursor
and change
setting values
④ ④ Function
Function
⑤ ⑤ CB
CB ON/OFF
ON/OFF
Move to control
Menu
X 3 times
OPEN
※ Once the password is put,
only ① ⑤ ⑥ steps are needed.

CT/PT Ratio Setting

1. Press ESC or ENTER to move to Menu mode.
2. Select 5.PT/CT SETTING.
3. Put and save the value by the direction key.
(Initial monitor)
X 3 times
Select
items
Change
values
Completed
These steps apply to GPT, CT, NCT
ratio Setting. After the setting change,
press ESC key to move to the menu
that you want.
