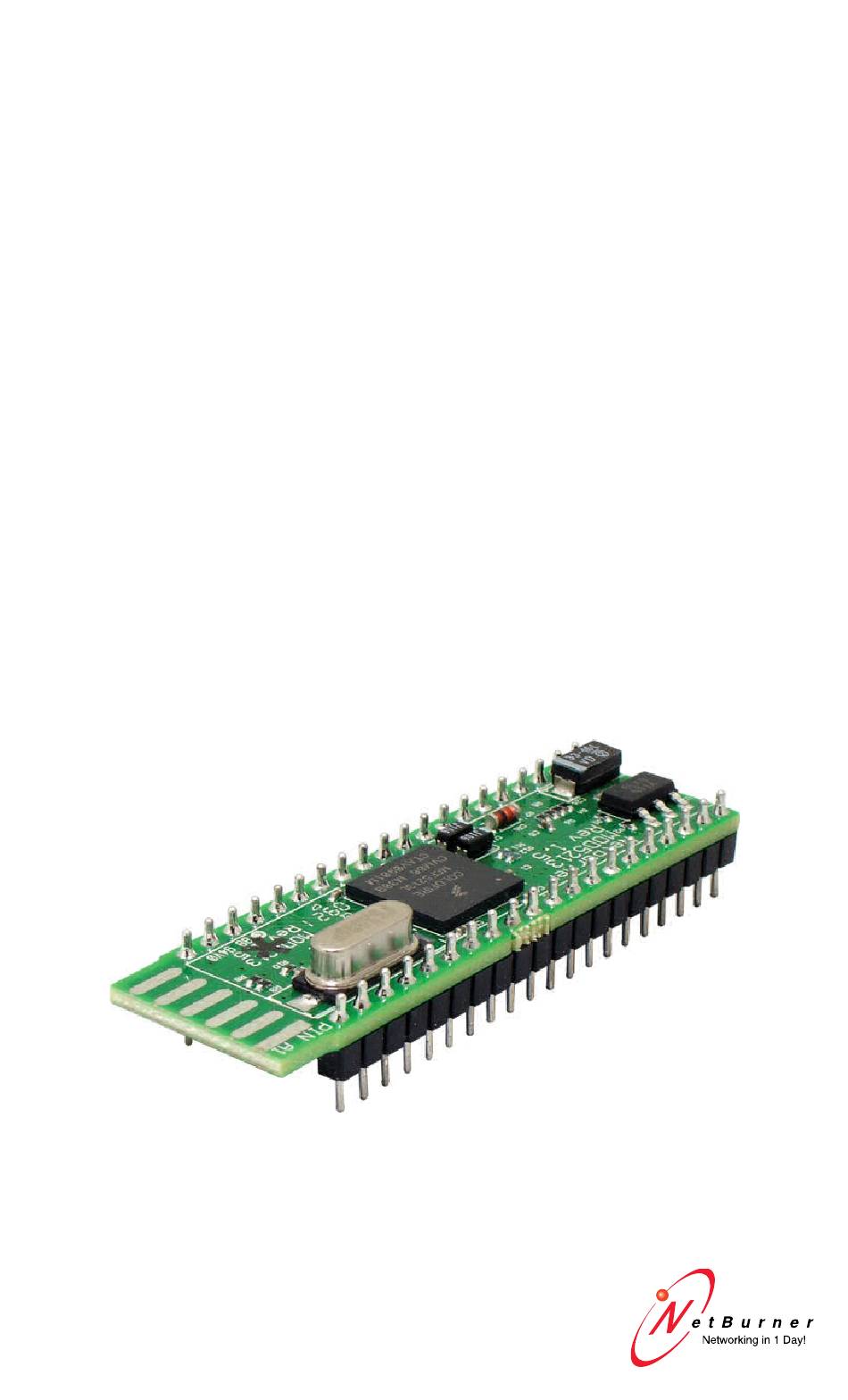

- Page 1 NetBurner, Inc. Development Kit MOD5213 Quick Start Guide Rev 1.3 Novemeber 2012 www.netburner.com...
- Page 2 Network Development Kit Quick Start Guide BLANK...
-
Page 3: Introduction
Network Development Kit Quick Start Guide Introduction The NetBurner Mod5213 Development Kit includes all the tools necessary to complete your embedded design; including a fully ANSI compliant C/C++ Compiler/Linker (GCC), Real-Time Operating System (RTOS), NBEclipse IDE with Integrated Debugger, and all the hardware and software components are integrated in a complete and easy to use package. -
Page 4: Table Of Contents
MTTTY Configuration Figure 8. MOD5213 Factory App Troubleshooting Guide NBEclipse does not start, or does not function properly I cannot send serial data to my NetBurner device in MTTTY Additional Services Technical Support Software Licensing Life Support Disclaimer Anti Piracy Policy... -
Page 5: Overview
SD/MMC Card Slot (with SDHC support) • RoHS Compliant Kit Contents • Quick start guide • Core Module (MOD5213) • MOD-DEV-40 development board with RS-232 level shifter • USB Cable (for power and/or serial communication) • Standard Serial Cable •... -
Page 6: Software And Documentation Cd-Rom
The RTOS, GNU C/C++ compiler and linker (fully ANSI compliant), command line tools and example source code will also be installed into the ‘nburn’ directory. NetBurner also provides a royalty free license for an additional charge. Please contact sales@netburner.com for more information on... -
Page 7: Kit Documentation And Online Resources
• Documentation Directory To access the NNDK documentation go-to: Windows Start Button > All Programs > NetBurner NNDK > (select desired document) NOTE: Additional appnotes, schematics, and pinouts can be found on the Core Module (MOD5213) product webpage and the Core Module section in the technical documents section of the NetBurner website at http://www.netburner.com... - Page 8 Network Development Kit Quick Start Guide Document Type Description NetBurner Eclipse IDE Getting started guide with Installation instructions. This is required reading before using NBEclipse. NetBurner Runtime Library reference guide for network and non- Libraries & uC/OS network platforms and a library reference for Reference Manual uC/OS Real-time operating system.
-
Page 9: Power Supply
Input Power, P5 Jack (J1) Input power jack. The center pin is positive. USB Driver Installation The MOD-DEV-40 evaluation boards USB serial interface requires the installation of the NetBurner USB Serial to Ethernet driver. This driver is automatically installed during the NNDK tools installation. -
Page 10: Rs-232 And Serial Ports (Usb Or Db9)
• Plug your Core Module into the two 40-pin module header. (Module Interface Connector at J1 and J2) on the carrier board. the BDM connector on your Mod5213 module is facing the prototype section of the Carrier board. • If using USB, attach your USB cable from J6 to your PC’s USB port. -
Page 11: Installing The Netburner Software
The MOD-DEV-40 carrier board with Core Module Installing the NetBurner Software Note: You must have Java 1.6 or later installed to run NBEclipse. Close all Windows programs before running the NetBurner setup program. Put the NetBurner CD in your host computer's CD ROM drive. - Page 12 A License Quiz screen will appear with a pair of questions to clarify whether a license is required. A NetBurner license is only required if you intend to run NetBurner software on hardware that was not manufactured by NetBurner.
-
Page 13: Running The Netburner Factory Program
Platform Installation Serial Number Window Continue to follow the on-screen directions until the installation process is finished. The NetBurner tools are now installed on your host computer. Running the NetBurner Factory Program If you have not already done so, connect your Core Module to the carrier board. - Page 14 Note: If you would prefer using a power supply (optional) instead of USB power, they are available at the NetBurner Online Store: http://www.netburnerstore.com/product_p/nbpwr-075cr.htm 2. Start the MTTTY program (From Windows: Start Programs ...
- Page 15 (i.e. a hard reset). You will see the message “Waiting 2 sec to start ‘A’ to abort” in the MTTTY window. 5. The MOD5213 Factory application is now running. See Figure 8 to compare. Figure 8.
-
Page 16: Troubleshooting Guide
NBEclipse does not start, or does not function properly Verify you have installed Java 1.6 or later. I cannot send serial data to my NetBurner device in MTTTY Verify the MOD-DEV-40 serial port jumpers (near the DB9 connectors) are set to the serial interface you are using: “USB” or “RS-232”. -
Page 17: Additional Services
Software Licensing The Software included in your NetBurner Network Evaluation Kit is licensed to run only on NetBurner provided hardware. Please read the license.txt file located (by default) in your C:\Nburn\docs directory. If your application involves manufacturing your own hardware, please contact Sales@NetBurner.com for details on a royalty-free software... -
Page 18: Life Support Disclaimer
NetBurner, Inc. prior to use. As used herein: (1) Life support s or systems are s or systems that (a) are...
