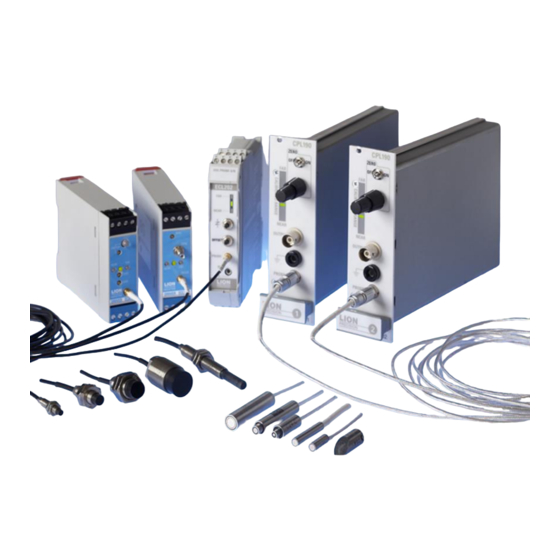

Summary of Contents for IBS CPL350

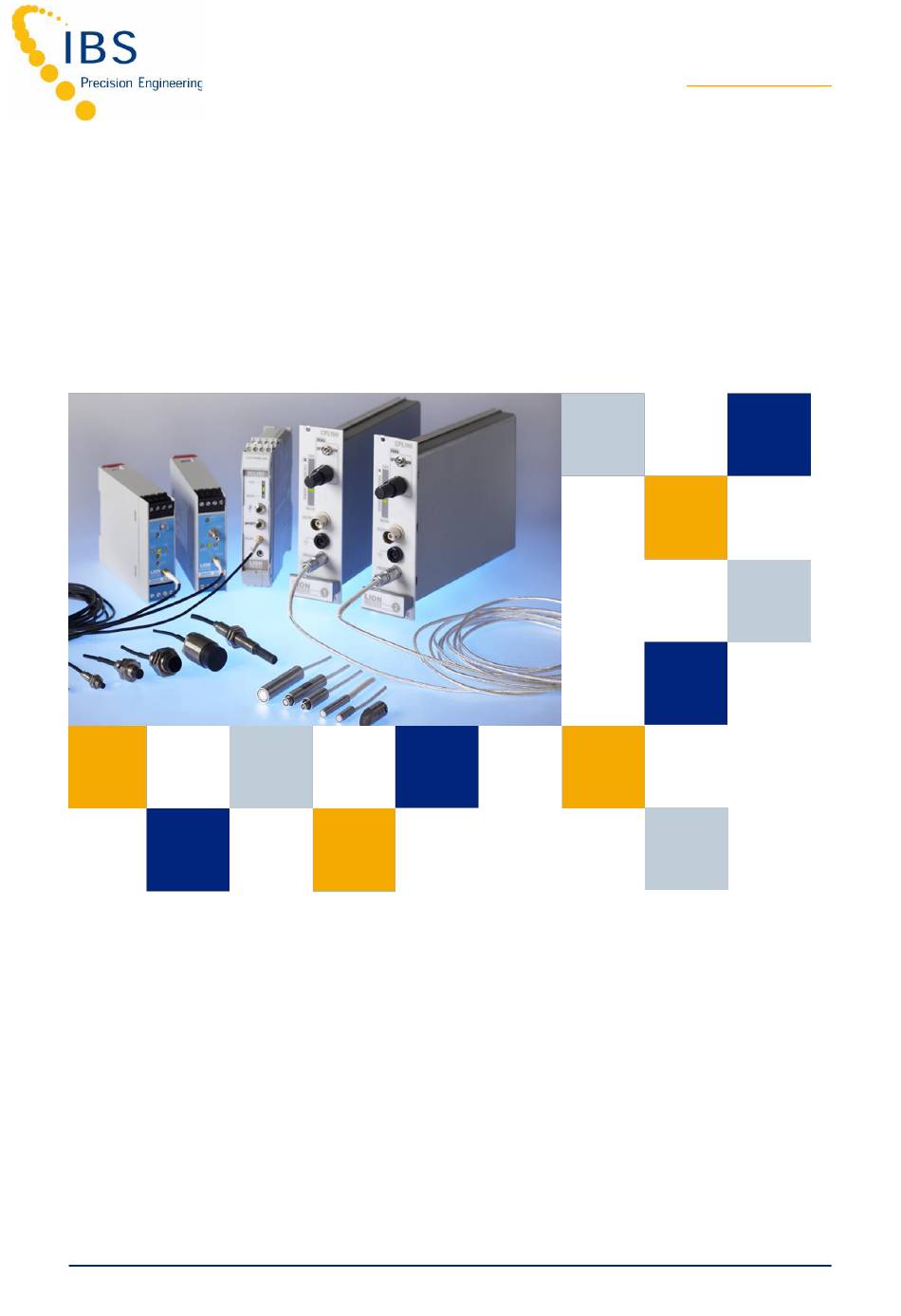

- Page 1 User Manual | P1 CPL350 www.ibspe.com...
-
Page 2: Table Of Contents
User Manual | P2 Last update: 2022-05-19 Table of Contents APPROVALS AND SAFETY CONSIDERATIONS OVERVIEW SYSTEM CONTENTS CALIBRATION USING THIS MANUAL HELPFUL TECHNICAL SUPPORT DOCUMENTS ONLINE CONNECTING TO THE CPL350 ROBE ONNECTIONS BNC C NALOG UTPUT ONNECTOR & D OWER IFFERENTIAL... -
Page 3: Approvals And Safety Considerations
System contents Your system includes this manual, the CPL350 Capacitive Sensor electronics, power supply, one probe, and a NIST traceable calibration sheet. Calibration Your system was calibrated with a precision calibrator designed by Lion Precision. -
Page 4: Using This Manual
2022-05-19 Using this manual In this manual you will find information for connecting and using your CPL350. Once you become familiar with the system, you will only need to refer occasionally to this manual for specifications or to verify connection information. -
Page 5: Connecting To The Cpl350
Ground Power Supply Requirements The power supply provided with your CPL350 provides the required ±15VDC input power. If using your own power supply, be aware that high-frequency noise from a switching-type power supply may appear in the output. For high resolution results, be sure to provide clean power. - Page 6 0.5 V/mm when used as a single-ended output. Signal Ground Connection A ground connection screw is provided for an optional ground connection to data acquisition devices. Connecting the CPL350 ground and data acquisition ground may improve performance. Consult your data acquisition manual for more details. www.ibspe.com...
-
Page 7: Changing Bandwidth
Higher bandwidths allow you to accurately measure faster moving targets. Lower bandwidth reduces the noise on the output and creates higher resolution. The CPL350 is set to 15 kHz unless specified otherwise in the order and on the calibration sheet received with the system. -
Page 8: Specifications
User Manual | P8 Last update: 2022-05-19 Specifications Resolution* 0.004% F.S. at 15 kHz typical, dependent on calibration Linearity Error ±0.5% F.S. typical, dependent on calibration Error band ±1.0% F.S. typical, dependent on calibration Bandwidth (–3 dB) DIP Switch selectable 100 Hz, 1 kHz Operating Temperature 4º-50ºC... -
Page 9: 11 Optional Mounting Flange
Last update: 2022-05-19 Optional Mounting Flange An optional flange for easy mounting of the CPL350 is available (P017-6455). The flange attaches to the bottom of the device with four flathead screws (included in the flange kit). CPL350 With Attached Mounting Flange...
