- Page 1 USER MANUAL GEN 3 READY TO ROUGE?
- Page 2 RED LIGHT THERAPY OVERVIEW What is Red Light Therapy? production as well as a host of other beneficial biological processes. Red Light Therapy is the treatment of human tissue with specific red and near infrared wavelengths of light at ATP is known as the “energy currency” of all living certain concentrations to induce therapeutic benefits.
- Page 3 RED LIGHT PANELS...
- Page 4 TABLETOP DETAILS GENERATION 3 LED Power 300W Wavelengths RED 660nm & NIR 850nm / Customize Amps @110v 0.95A Amps @220v 0.49A Dimensions 10.6” x 9.1” x 2.6” Power Consumption 103W LEDs 60 x 5W Beam Angle RED60 Degree & NIR30 Degree Cooling Fans Weight 3.5KG/7.7LBS...
- Page 5 DETAILS GENERATION 3 LED Power 1500W Wavelengths RED 660nm & NIR 850nm / Customize Amps @110v 4.86A Amps @220v 2.25A Dimensions 35.8” x 11.8” x 2.6” PowerConsumption 496W LEDs 300 x 5W Beam Angle RED 60 Degree & NIR 30 Degree Cooling Fans 4pcs Weight...

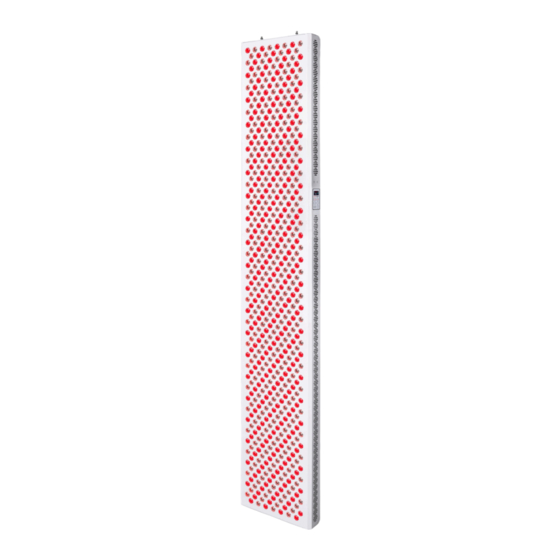

- Page 6 DETAILS GENERATION 3 LED Power 3000W Wavelengths RED 660nm & NIR 850nm / Customize Amps @110v 9.3A Amps @220v 4.5A Dimensions 70.9” x 11.8” x 2.6” PowerConsumption 992W LEDs 600 x 5W Beam Angle RED60 Degree & NIR30 Degree Cooling Fans 8pcs Weight 21.6KG/47.6LBS...
- Page 7 ULTIMATE DETAILS GENERATION 3 LED Power 6000W Wavelengths RED 660nm & NIR 850nm / Customize Amps @110v Amps @220v 8.7A Dimensions 70.9” x 23.6” x 2.6” PowerConsumption 2000W LEDs 1200 x 5W Beam Angle RED60 Degree & NIR30 Degree Cooling Fans 14pcs Weight 41KG/90.4LBS...
-
Page 8: Setup And Usage Instructions
SETUP AND USAGE INSTRUCTIONS Full photo and Installation, work in circles like bro- chure... - Page 9 SETTING UP YOUR GEN 3 SERIES LIGHT Choose Red Light Choose NIR Light Increase time value, brightness percentage, group number, pulse value Decrease time value, brightness percentage, group number, pulse value 20:00 Cyclically, you can switch time, group, pulse MENU...
- Page 10 ACCESSORIES 1. LED Therapy Light 2. Eye Protection 3. Door Hook 4. Renote Control 5. Hanging Hardware 6. Power Cable 7. Patch Cable 8. Cable Assembly & Snap Links...
- Page 11 TABLETOP AND PRO: INSTALLATION INSTRUCTIONS STEP 1 Lay all of the included hardware, including your Panel, on a padded surface. Next, screw in the threaded posts to the top of the device and hand- tighten with the included Allen wrench. Then, screw the cable supports to the threaded posts, as shown in PIC 1.
- Page 12 TABLETOP AND PRO: INSTALLATION INSTRUCTIONS STEP 3 Connect the cable supports to the snap link attached to the height-adjusting system. Then, connect the snap link on the opposite end directly to the door hook, as shown in PIC 3. PIC 3 STEP 4 To raise your Panel to your desired height, pull down on the loose cable while supporting the device with your...
- Page 13 GEN 3 SERIES LIGHT UNITS STEP 1 To connect the lower Rouge panel LED, lift it into position below the lead device that is already in place. Line up the threaded posts with the holes in the end caps of the upper device.
- Page 14 • Adding up all the areas you will treat, do not exceed 120 joules of exposure per session, which is approximately 15-20 minutes of total exposure at close range. • These guidelines are valid for all Rouge red light therapy products. Frequency Minimum of 3 times per week, ideally once daily.
-
Page 15: Warranty Clauses
WARRANTY Warranty Clauses 1. Rouge Red Light Therapy devices are warranted against defects in materials and workmanship for a period of THREE (3) YEARS from the purchase date. 2. Free replacements are warranted for a period of SIX (6) MONTHS. - Page 16 Rouge Red Light Therapy 6000 Boul Rome, suite 410 Brossard, QC J4Y 0B6 E-Mail: info@rouge.care Tel: 1 (877) 664-6484 rouge.care ©2020-2022 Rouge Red Light Therapy. All rights reserved...
