Warning
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should
always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions
before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569
from 8:00 AM EST to 8:00 PM PST. You may email to customer.care@sunjoygroup.com or visit
www.sunjoyonline.com to place your order or fax your parts replacement order form (which is included in the
packaging) together with your purchase receipt to
Production Number: XXXXXXXX

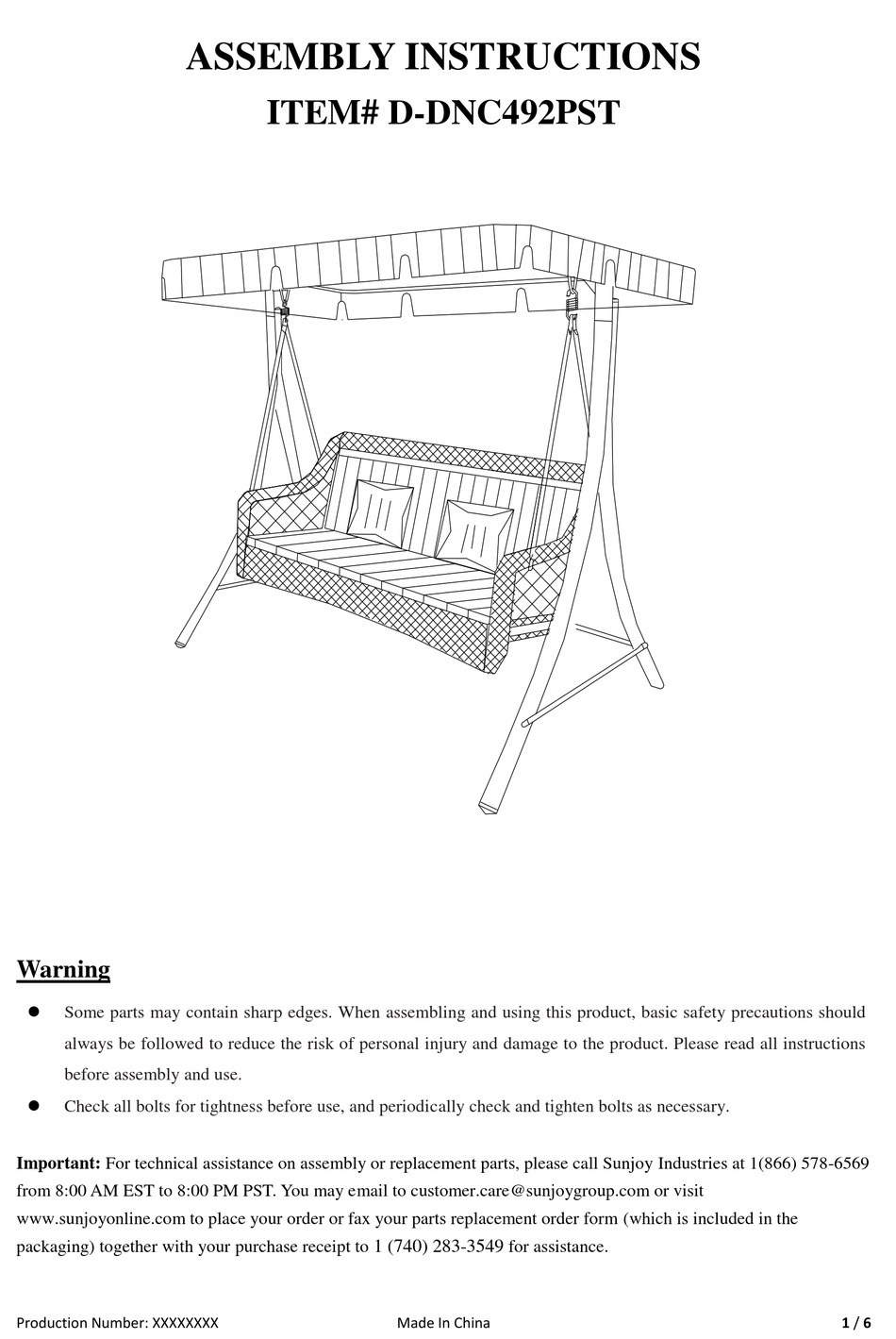

ASSEMBLY INSTRUCTIONS
ITEM# D-DNC492PST
1 (740) 283-3549
for assistance.
Made In China
1 / 6
Advertisement
Table of Contents
Summary of Contents for Tractor Supply D-DNC492PST
- Page 1 ASSEMBLY INSTRUCTIONS ITEM# D-DNC492PST Warning Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions before assembly and use.
- Page 2 PARTS LIST Label Part Number Description DNC0492XXX01 Front foot DNC0492XXX02 Back foot DNC0492XXX03 Back support bar DNC0492XXX04 Side support bar DNC0492XXX05 Top beam DNC0492XXX06 Seat DNC0492XXX07 Chair back DNC0492XXX08 Right armrest DNC0492XXX09 Left armrest DNC0492XXX10 Swing bar 1 DNC0492XXX11 Swing bar 2 DNC0492XXX12 Top side support bar DNC0492XXX13...
- Page 3 ASSEMBLY STEPS Step 1: Insert Top beam (E) into Front foot (A), as Fig.1. Fix Front foot (A) & Back foot (B) and Top beam (E) & Back foot (B) by using bolt (BB), washer (KK) and nut (LL), then cover Plastic cap (HH), as Fig.2.
- Page 4 Step 4: Connect Right armrest (H1), Seat (F) and Chair back (G) by using bolt (EE) and washer (CC), then cover Plastic cap (AA). Assemble Left armrest (H2) in same way. Step 5: Hang Swing bar (I1 & I2) to Right armrest (H1) and Left armrest (H2).
- Page 5 Step 7: Connect Top side support bar (J) to Top beam (E) by Adjust bolt (GG), do not tighten the bolt. Step 8: Insert Top connect bar (L) into Canopy (K). Step 9: Insert Top side support bar (J) to Top connect bar (L), and then tighten the Adjust bolt (GG).
- Page 6 Step 10: Stretch the canopy to fit. Place Seat cushion (M), Back cushion (N) and Pillow (O) on the seat. Now your Swing is ready for use, ENJOY it. Care & Maintenance: Before using, clean the product completely with a soft dry towel. ...
