Summary of Contents for Solo 9300
Page 1

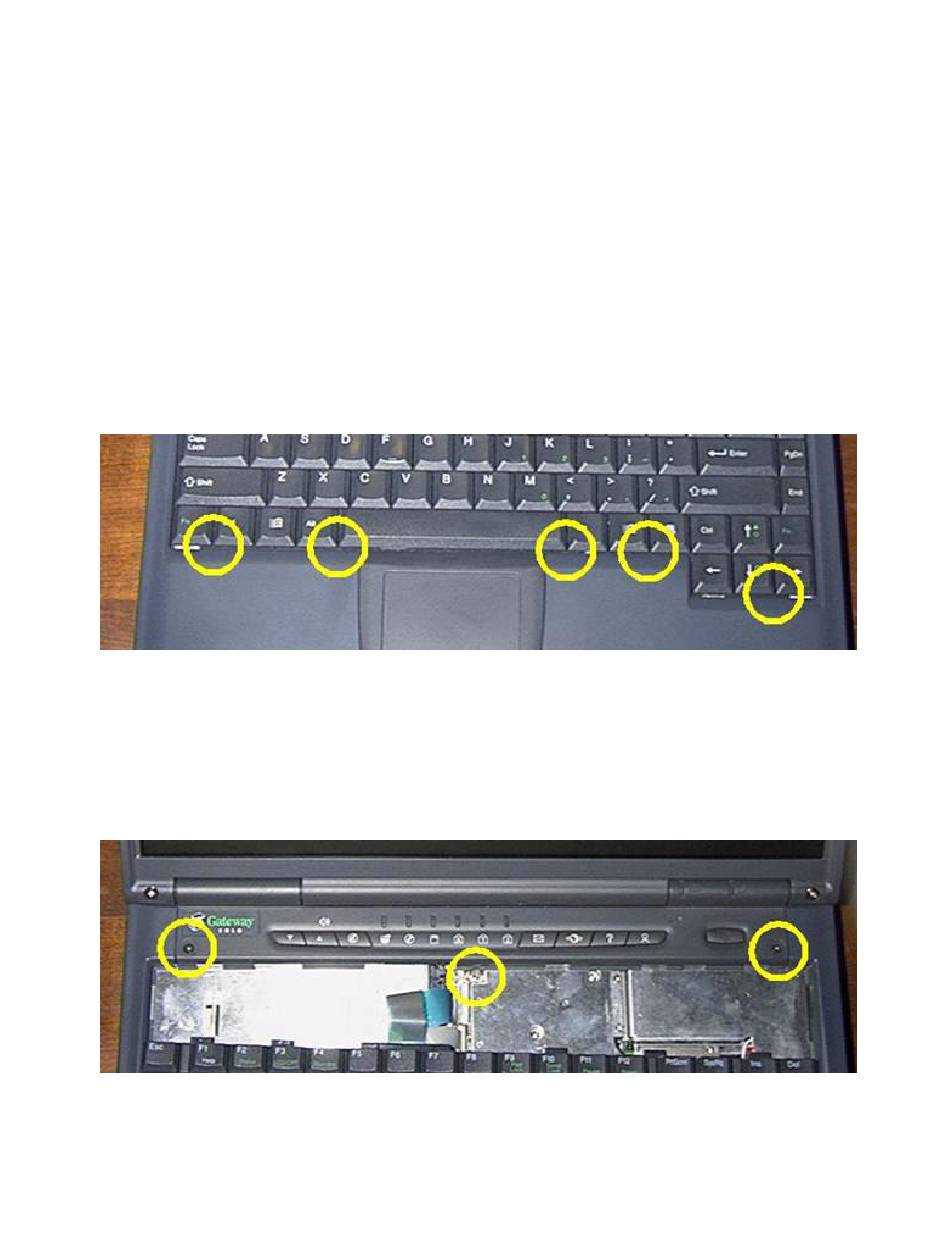

10/2/21, 10:04 AM Solo 9300 Assembly Solo 9300 Assembly/Disassembly Instructions (Please be patient while all the graphics load.) As with any dismantling of computer equipment, you do so at your own risk. Take appropriate electrostatic measures to avoid causing unnecessary damage to equipment.
Page 2
10/2/21, 10:04 AM Solo 9300 Assembly the ribbon cable that connects the two is very very fragile and is susceptible to damage. 5. Remove Audio Bar. The bar is attached via four screws on the bottom of the chassis. Once the screws are removed the bar comes off with an up and out motion once the chassis is turned over.
Page 3
10/2/21, 10:04 AM Solo 9300 Assembly There are also three additional screws that can be removed at this time if the chassis will be dismantled to actually get to the chassis. After the Audio Bar is removed, it is fairly easy to determine which screws will need to be removed to access the required part.
Page 4
10/2/21, 10:04 AM Solo 9300 Assembly 8. Remove top plastic. (Refer to picture from 6 above) The top plastic is held in place by eight screws, four of which are visible after the Audio Bar has been removed. The other four are are located under the touchpad assembly (2) and on either side of where the LCD hinges attach (2).
Page 5
10/2/21, 10:04 AM Solo 9300 Assembly 11. Remove metal motherboard area cover. It is held in place by three screws, 12. Remove the bezel plastic. Held in place by three screws. test.leecomputers.com/9300disassembly.htm?fbclid=IwAR0A2pg8Rg5bOAJkNG53Q8njngRJE4gH_Zpo6A8LBkZuLi_xylKNr49AFGs...
Page 6
10/2/21, 10:04 AM Solo 9300 Assembly 13. Remove the LCD mounting bracket. Held in place by eight screws. Three screws are located on the backside of the chassis (denoted by the yellow triangle). 14. Remove the LCD video adapter board. It is held in place by two screws. Change out for the board you need, etc.
Page 7
10/2/21, 10:04 AM Solo 9300 Assembly 15. Remove of the modem is simple, as it is of the MiniPCI type and can be remove from its connector and disconnected from the cable. To remove the audio board, first remove the metal board protector. It is held in place by four screws.
Page 8
10/2/21, 10:04 AM Solo 9300 Assembly 16. Remove the audio board. Held in place by four screws. The audio ports are in through the chassis plastic, so you may have to wiggle the board to get it removed. 17. Remove the modem/LAN bezel, if desired. It is held in place by two screws. NOTE: to remove the modem/LAN bezel it is not necessary to remove the audio board.
Page 9
10/2/21, 10:04 AM Solo 9300 Assembly test.leecomputers.com/9300disassembly.htm?fbclid=IwAR0A2pg8Rg5bOAJkNG53Q8njngRJE4gH_Zpo6A8LBkZuLi_xylKNr49AFGs...
