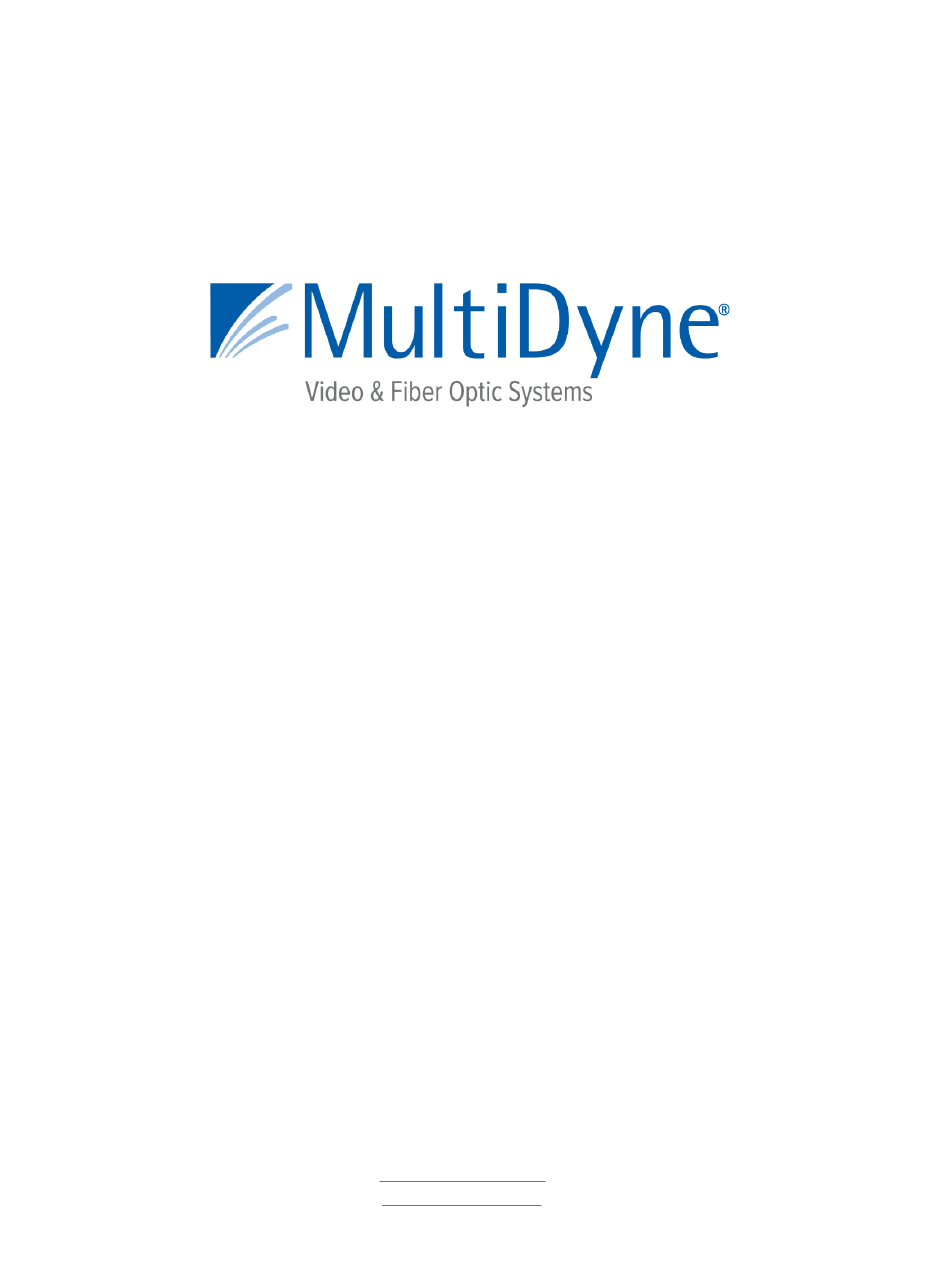

- Page 1 FiberSaver 25G 25GBase Fiber Transport USER MANUAL 252 Indian Head Road, Kings Park, NY 11754 USA (877) 685-8439 / (516) 671-7278 / FAX (516) 671-3362 sales@multidyne.com www.multidyne.com...
-
Page 2: Table Of Contents
Table of Contents Table of Contents............................ 2 Document Revisions..........................2 Safety Info............................... 3 Overview............................5 Feature Descriptions........................6 Operation Connection Diagram......................7 Accessories............................8 Specifications........................... 9 Contact Info............................10 Document Revisions Revision Description Date Author Initial 7/13/2023 P a g e... -
Page 3: Safety Info
• All Electrical Work to the facility must be performed by a qualified Licensed Electrician. All local Electrical Codes must be followed and, if necessary, must be inspected by a Local or State Inspector. • All servicing of MultiDyne equipment must be perform at the factory by a MultiDyne trained service technician or engineer. - Page 4 • Connect the unit only to a power source with the specified voltage rating. • Unless otherwise stated in the Installation Instructions, and in adherence to local Electrical Codes MultiDyne® Equipment should only be plugged into a standard 15 amp dedicated circuit. Laser Safety Information This unit is classified as a CLASS 1 LASER PRODUCT according to EN60825-1 (EU) and FDA 21CFR 1040.10 (USA).
-
Page 5: Overview
Overview The FiberSaver 25G provides a cost-effective solution for network expansion and capacity enhancement. It eliminates the need for deploying and maintaining multiple fiber links, which can be expensive and time-consuming. With CWDM technology, existing fiber infrastructure can be leveraged to its maximum potential. -
Page 6: Feature Descriptions
SPECIFICATIONS Feature Descriptions 2.1 Front LED Descriptions There are 2 columns of LEDs for each VB card. The left side covers signal and system status. The right side is a real-time optical power meter for the optical input. Status Optical Meter P a g e... -
Page 7: Operation Connection Diagram
SPECIFICATIONS Operation Connection Diagram P a g e... -
Page 8: Accessories
SPECIFICATIONS Accessories 4.1 Rack Mounting Installation Part Number Description VB6 MOUNTING KIT for 1, 2, or 3 VB6 units RM-1RU-VB6 4.2 Wall Mounting Kit Part Number Description Wall Mount Kit, VB Series 2, Universal for VB4, VB6, VB10 WMK-VBSERIES P a g e... -
Page 9: Specifications
SPECIFICATIONS Specifications Operating to 70° C Temperature 5.2 Electro-Optical -1 – +4 dBm TX Output Power -12 dBm RX Sensitivity Singlemode Fiber Type UPC (Ultra-physical contact) Fiber Polish ST, SC, or LC Fiber Connectors Optical Power Meter Accuracy +/- 2dB 1271–1371 CWDM Wavelengths 12dB... -
Page 10: Contact Info
MULTIDYNE, the Multidyne logo, are registered trademarks of MULTIDYNE Electronics, Inc. Copyright 2023 MULTIDYNE Electronics, Inc., Kings Park, New York. Printed in the United States of America. All Rights Reserved. Contents of this publication may not be reproduced in any form without the written permission of MULTIDYNE Electronics, Inc.
