Summary of Contents for Lauda VS 20 OH
-

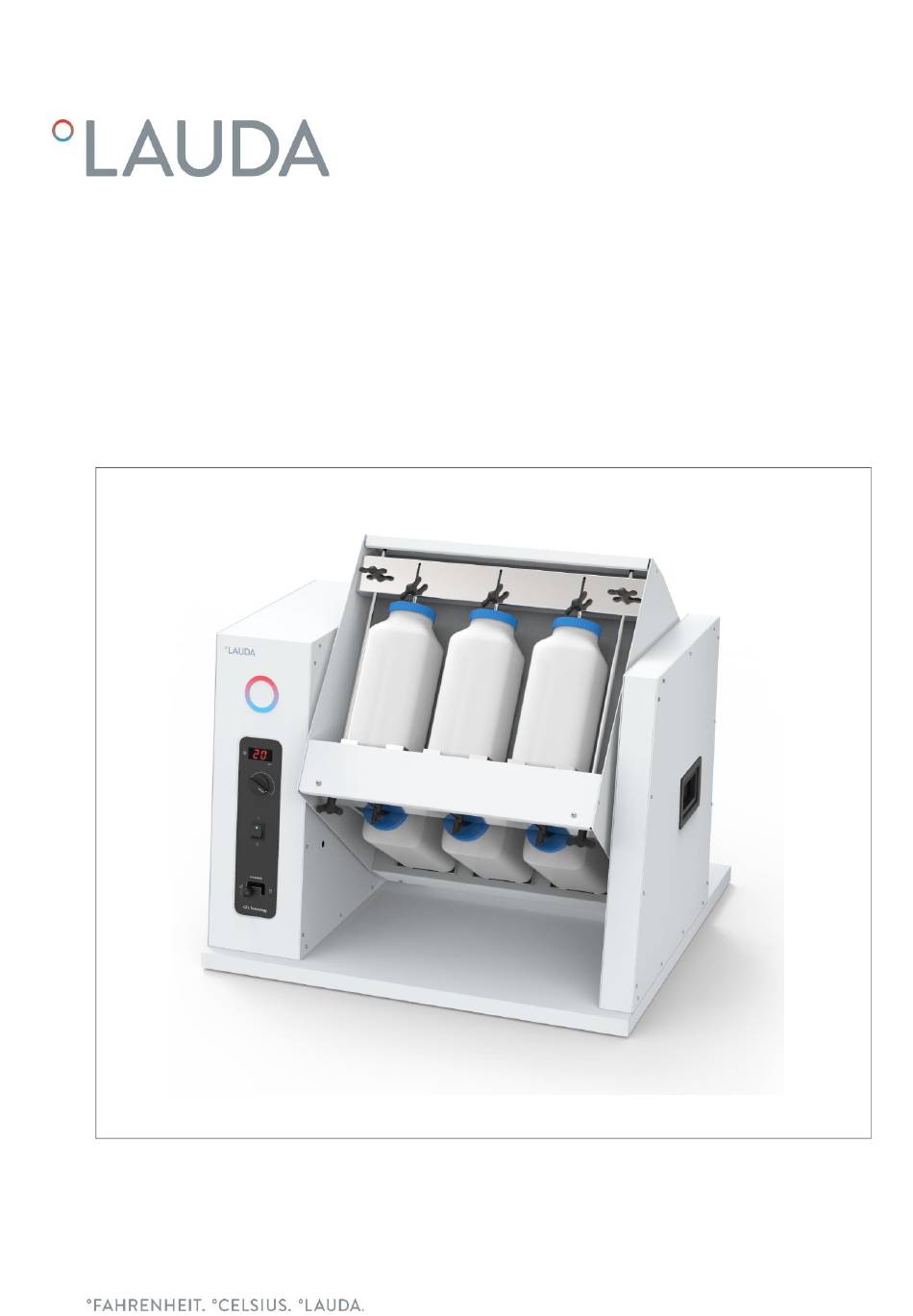

Page 1: Operating Instructions
Operating Instructions Varioshake Overhead Shaker VS 20 OH... - Page 2 2 / 20 Varioshake Overhead Shaker...
- Page 3 30938 Burgwedel - Germany Phone: +49 (0)5139 9958 0 Fax: +49 (0)5139 9958 21 Email: info@lauda.de Internet: https://www.lauda.de Translation of the original operating instructions Q4DT-E_13-012-EN-01, 04.07.2023 © 2023 LAUDA DR. R. WOBSER GMBH & CO. KG Varioshake Overhead Shaker 3 / 20...
- Page 4 4 / 20 Varioshake Overhead Shaker...
-
Page 5: Table Of Contents
12 Connection to the mains ..............................14 Electrical fuses ................................14 13 Notes ...................................... 15 14 Ordering spare parts / LAUDA Service ..........................16 15 Product Returns and Clearance Declaration ........................17 16 EC Declaration of Conformity ............................19 Varioshake Overhead Shaker... - Page 6 6 / 20 Varioshake Overhead Shaker...
-
Page 7: Use Of The Overhead Shaker
Improper Use LAUDA Varioshake Shaking Apparatus are no Medical Devices. They fall neither under national nor international Medical Device Directives and have to be used and applied accordingly. The Shaking Apparatus may not be used in potentially ex- plosive atmospheres and must neither be set up nor operated in laboratory areas with aggressive or corrosive ambient. -
Page 8: Transport, Set-Up And Location Of The Overhead Shaker
Transport, set-up and location of the overhead shaker Protect yourself and the unit during transport and setup by working carefully and avoid danger of e. g. shifting or tilting the unit. Place on solid, even and level surfaces inside buildings only. The location must provide sufficient space as well as the necessary carrying capacity for the unit (unit weight see Technical Data, plus weight of the accessories and load). -
Page 9: Clamping The Vessels
Clamping the vessels Attention: Only vessels of the same size may be clamped on all four levels. The weight of the vessels must be the same. Place vessels in the holders: Loosen the two outer wing screws of the height adjustment, press down on the vessel closure and tighten again (image B). -
Page 10: Functional Description
The desired speed is to be set with the speed setting button (Figure E). The current speed in rpm (revolutions per minute) is shown on the digital display. Attention: If the rotating rack is already in operation, the locking lever must not be actuated. Functional description Analogue control: The desired speed is set using a rotary control. -
Page 11: Breakdown In Case Of Overload And Mains Failure
1995 and recycles them. Before delivery, a legally binding declaration must be made that the device is free from contami- nation that is harmful to health and from hazardous substances caused by use. LAUDA laboratory devices are intended exclusively for commercial use and may not be disposed of via public waste dis- posal agencies. -
Page 12: Technical Data
Technical Data VS 20 OH Exterior dimensions (W x D x H) 700 mm x 700 mm x 680 mm Speed range 1 to 20 rpm Speed control Electronic, stepless Speed display digital Capacity 12 vessels Maximum vessel diameter 110 mm (round or square) -
Page 13: Circuit Diagram
Circuit diagram Radio interference suppression unit Speed display DC motor controller Forked light barrier Choke 9 µH, 6 A Choke 9 µH, 6 A Choke 2.5H 0.2A Fuse 500mAT Fuse 500mAT DC motor Potentiometer 1MΩ Potentiometer adjustment display Potentiometer speed adjustment Main switch Varioshake Overhead Shaker 13 / 20... -
Page 14: Connection To The Mains
Connection to the mains LAUDA Varioshake overhead shakers are supplied with a pre-assembled main plug. The connection to the protective conductor connection must be ensured. Color code of the power cord Power supply PE (protective conductor) ge/gr – yellog/green bl – blue sw –... -
Page 15: Notes
Notes Varioshake Overhead Shaker 15 / 20... -
Page 16: Ordering Spare Parts / Lauda Service
Phone: +49 (0)9343 503-350 Fax: +49 (0)9343 503-283 Email: service@lauda.de We are always at your disposal for questions and suggestions! LAUDA DR. R. WOBSER GMBH & CO. KG Laudaplatz 1 97922 Lauda-Königshofen Germany Phone: +49 (0)9343 503-0 Fax: +49 (0)9343 503-222 Email: info@lauda.de... -
Page 17: Product Returns And Clearance Declaration
Product Returns and Clearance Declaration Varioshake Overhead Shaker 17 / 20... - Page 18 18 / 20 Varioshake Overhead Shaker...
-
Page 19: Ec Declaration Of Conformity
EC Declaration of Conformity... - Page 20 LAUDA DR. R. WOBSER GMBH & CO. KG Schulze-Delitzsch-Straße 4+5 ◦ 30938 Burgwedel ◦ Germany Phone.: +49 (0) 5139 9958-0 ◦ Fax +49 (0) 5139 9958-21 Email: info@lauda.de ◦ Internet: https://www.lauda.de...
