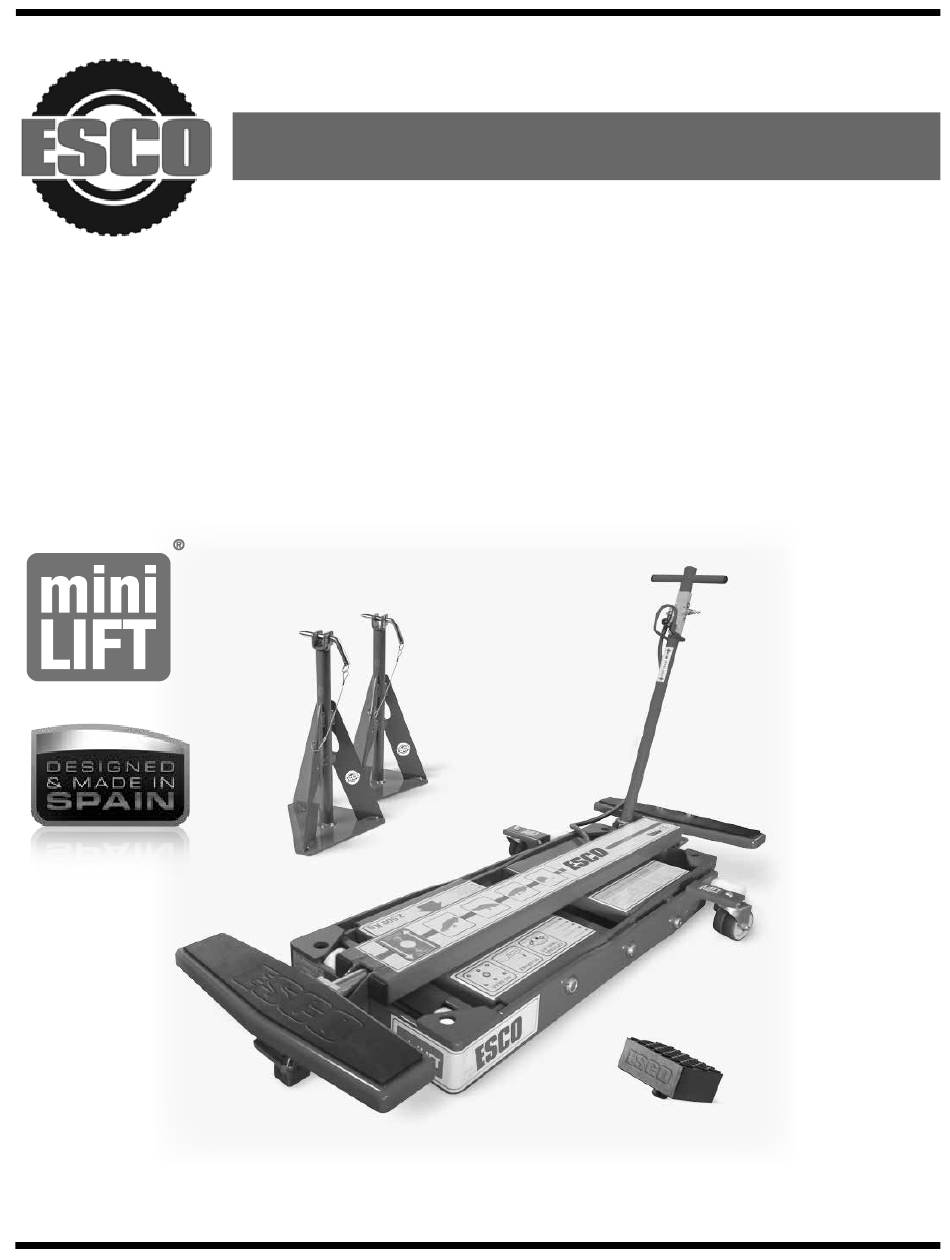

- Page 1 Equipment Supply Company Instruction Manual miniLIFT CLASSIC - Mobile Lift MODEL 92050...
-
Page 2: Table Of Contents
- Mobile Lift System - MODEL #92050 MANUFACTURER’S INTRODUCTION ESCO has carefully produced this instruction manual. It is a condition that before the installation and ��� use of the miniLIFT, the instruction manual, must be read by the operator. -
Page 3: General Characteristics
5,500 lbs. (equivilant to 2.500 KG noted on the unit). If the unit no longer shows the “Capacity Rating” on the labeling please consult an ESCO representative for replacement labeling. DESTINATION OF USE This product has been developed for vehicle repair activity and has not been designed to lift people OR any other object. -
Page 4: Technical Specifications
miniLIFT - Mobile Lift System - MODEL #92050 Technical characteristics and dimensions table miniLIFT DIMENSION UNIT VALUE Maximum load capacity 5500 Lbs. Maximum height above the ground 21.65 Minimum height above the ground 5.25 Width of platform Length of platform 54.4 Weight of unit with accessories Lbs. -
Page 5: Packaging And Transport
When opening the packaging, check that all the components are present. The check is to be done in the presence of the carrier, to see if a component is lost. ESCO is not responsible for any damage due to transportation, loading, unloading and unpacking. -
Page 6: Free Safety Zone
miniLIFT - Mobile Lift System - MODEL #92050 Pneumatic circuit connection Initially the lift is not connected to the operating control. The lift connects to the compressed air network using a fast connector, but only when it is in the neutral position, which is the default position. The functioning of the operating control will be explained later in the manual. -
Page 7: Implementation And Verification
To make the lift go down the control lever has to be in position of “down” or ���� The lift will descend to the ground. T���������������������������������������������������� If these operations have been carried out successfully, the miniLIFT Classic is ready for use. RAISING THE MINILIFT The commands have to be tested before performing any operation, as described in the previous section 9.1. -
Page 8: Proper Lifting Instructions
This will cause for an unstable lifting of the vehicle and could damage the vehicle. ESCO is not liable for any damage made to the vehicle due to the improper use of this lift. -
Page 9: Securities
- Mobile Lift System - MODEL #92050 WARNING: ESCO will take no responsibility neither civil, criminal or any injury to person that may occur. WORKING POSITION After the lifting operation, before proceeding with the work, the stability of the vehicle on the lift has to be tested. -
Page 10: Proper Installation Of Support Stands
ESCO recommends using the provided support stands with the miniLIFT. ESCO is not liable for the misuse of support stands in conjunction with the miniLIFT system. Any appropriate tonnage support stands may be used to sustain the load. -
Page 11: Minilift Safety Mesures
The maximum load capacity of the lift is 5,500 lbs. MINILIFT SAFETY MEASURES The only energy source of miniLIFT Classic is compressed air taken from the network of the workshop. Therefore, the causes of any anomalies are minimized: There are no electric motors or electrical components in the command, there is also no hydraulic oil cylinder that may lose oil. -
Page 12: Warranty
In case of minor repair, replacement parts can be ordered from ESCO, but if the repair or replacement is of a major component it must be carried out by a specialist of ESCO This will maintain the integrity of the lift and the warranty. -
Page 13: Available Optional Accessories
MODEL #92050 & MODEL 92055 Rubber Lifting Pads SUV Conversion Set MODEL #92057 MODEL #92057 miniLIFT. LOW MODEL #92055 Compact Mobile Lift with Lift & Move System! When it comes to quality hydraulic tools and equipment, ESCO is the brand you can depend on.
