ZIMX HB1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

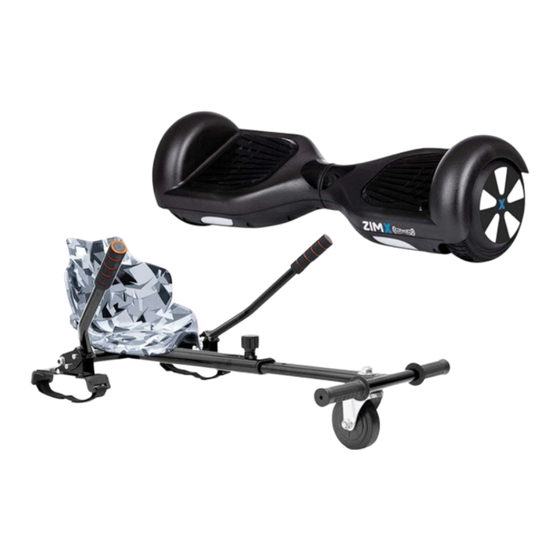

ZIMX HB1 & HK4
USER MANUAL
V1.0.1
*Images used in this manual may vary slightly from the product and are for reference purposes only.
Even if you have ridden a hoverboard for years, it is important for you
and every rider to read this manual before using this product.
KEEP FOR FUTURE REFERENCE
IMPORTANT:

Advertisement

Table of Contents
loading

Related Manuals for ZIMX HB1

Summary of Contents for ZIMX HB1

  • Page 1 ZIMX HB1 & HK4 USER MANUAL V1.0.1 IMPORTANT: KEEP FOR FUTURE REFERENCE *Images used in this manual may vary slightly from the product and are for reference purposes only. Even if you have ridden a hoverboard for years, it is important for you...

  • Page 3: Table Of Contents

    CONTENTS Warning································································2 Operating Principals ···········································3 Introduction····························································4 HB1 Hoverboard Seat Attachment·······························5 Assembling HK4 Hoverkart Seat Attachment···········6-7 Installing Your ZIMX HB1 Hoverboard·················7-9 Before Riding·······················································10 Riding Your HB1 Hoverboard····································11 Controls And Display··········································11-12 Charging Your HB1 Hoverboard····························12-13 Calibrate Your Hoverboard······································14 Safety Precautions and Product Safety·················15-19 Safety Alerts························································20...
  • Page 4 HELMETS SAVE LIVES! Always wear a properly fitted helmet that complies with safety standards when you ride your hoverboard. CORRECT FITTING: Make sure your helmet covers your forehead. INCORRECT FITTING: Forehead is exposed and vulnerable to serious injury.

  • Page 5: Warning

    Thank you for purchasing the ZIMX HB1 Hoverboard and ZIMX HK4 Hoverkart Bundle. Please read all instructions carefully before using and retain this manual for future use and reference.

  • Page 6: Operating Principals

    Inspect the entire device thoroughly before every ride, and do not ride it until any problems have been corrected. SPECIFICATIONS Model Net Bundle Weight (HB1 + HK4) 11.7 kg User Weight Load 20-100 kg Up to 8 mph (13 km/h)

  • Page 7: Introduction

    The HB1 hoverboard is classed as a personal transporter. Our technology and production processes are developed with strict testing for each HB1. Riding without following the contents of this manual may lead to damage to your device, or may cause bodily injury.

  • Page 9: Assembling Hk4 Hoverkart Seat Attachment

    ATTACHMENT If you have questions or concerns about any of these steps, please feel free to contact our Customer Service Team at info@zimx.uk A representative will be in touch to guide you through these steps. Carefully follow the steps shown on the following pages for assembling the Hoverkart Seat Attachment.

  • Page 10: Installing Your Zimx Hb1 Hoverboard

    Carefully follow the steps shown on the following pages for assembling the Hoverboard with Seat. Your Hoverboard Seat Attachment must be completely assembled before installing it onto your HB1 Hoverboard. Please refer to the ‘ ASSEMBLING YOUR HK4 HOVERKART SEAT ATTACHMENT’ section for assembling procedures.

  • Page 13: Before Riding

    ZIM X HB1 HOVERBOARD OPERATION It is important that you fully understand all elements of your Hoverboard HB1. If these elements are not used correctly, you will not have full control of it. Before you ride fast, or outside of a controlled environment, learn the functions of the various mechanisms on your Hoverboard HB1.

  • Page 14: Riding Your Hb1 Hoverboard

    Power Off: Press the power button once. FOOT MAT SENSORS There are four sensors under the foot mats on your HB1 Hoverboard. When the user steps off the hoverboard mats, it will automatically stop the HB1 from moving.

  • Page 15: Charging Your Hb1 Hoverboard

    Do not step or stand on any other area of your hoverboard. Do not put items on the foot mats. Doing so will make the HB1 turn on, and increase the probability of collision and cause injury to people, riders, or damage the device. BATTERY INDICATOR The display board is located in the middle of the HB1 Hoverboard.
  • Page 16 • The charger supplied with the HB1 should be regularly examined for damage to the cord, plug, enclosure and other parts. In the event of such damage, the Hoverboard must not be charged until it has been repaired or replaced.

  • Page 17: Calibrate Your Hoverboard

    CALIBRATE YOUR HOVERBOARD Many problems that surfaces are due to misconfigurations on the gyro board. Most often they are off balance and in that state your hoverboard does not know if you’re on a flat surface, going up/downhill or even if you are standing on it or not.

  • Page 18: Safety Precautions And Product Safety

    ZIMX is not liable for tickets or violations given to riders who do not follow these regulations. • For your safety, always wear a helmet that meets safety standards.

  • Page 23: Safety Alerts

    SAFETY ALERTS While riding your HB1 Hoverboard, if there is a system error or improper operation performed, the device will prompt the user in a variety of ways. You will notice the Running Indicator Light will turn RED and you will hear a beep sound alerting you to take precaution and cease operation, which may make the hoverboard stop suddenly.

  • Page 24: Safety Checklist

    Do not step on if the Running Indicator is red. • Do not operate the device in crowded areas. If you and your friend(s) are riding HB1 Hoverboard together, be sure to keep a safe distance between each other to prevent collisions, property damage, serious injuries or even death.

  • Page 25: Warranty

    2)The warranty will be performed in such a way that we shall decide whether to repair the defective parts or to replace them with working parts free of charge. ZIMX reserves the right to exchange the product for a replacement product of equal value if the product sent in cannot be repaired within a reasonable time or at a reasonable cost.

  • Page 26: Customer Service Support

    Further Specifications & Info WARNING!! It is currently illegal to ride electric scooters or self balancing scooters or hoverboards on public roads, pavements or cycle paths. They are intended only for use on private land with the owners permission.

This manual is also suitable for:

Hk4
