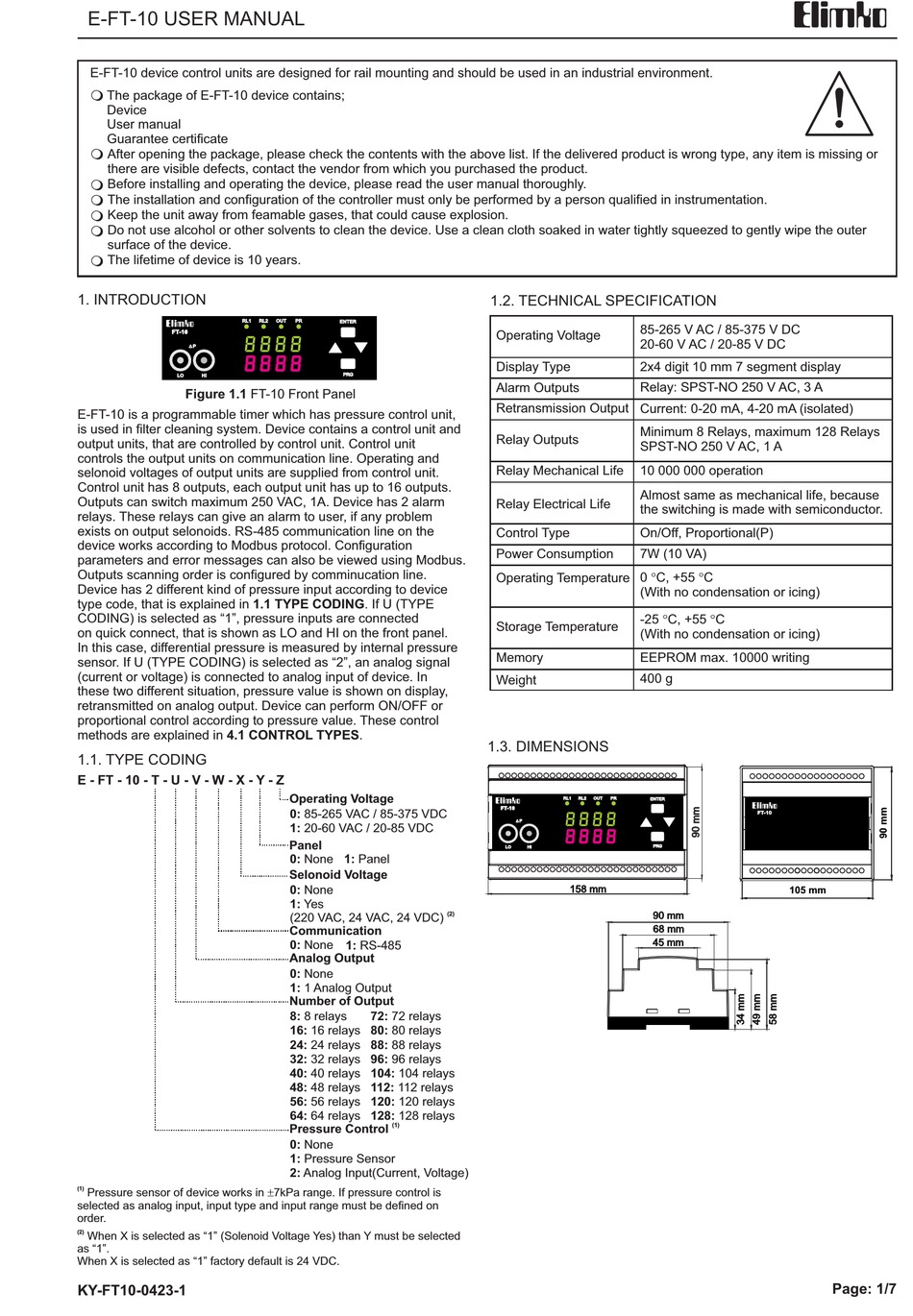

E-FT-10 USER MANUAL
E-FT-10 device control units are designed for rail mounting and should be used in an industrial environment.
m
The package of E-FT-10 device contains;
Device
User manual
Guarantee certificate
m
After opening the package, please check the contents with the above list. If the delivered product is wrong type, any item is missing or
there are visible defects, contact the vendor from which you purchased the product.
m
Before installing and operating the device, please read the user manual thoroughly.
m
The installation and configuration of the controller must only be performed by a person qualified in instrumentation.
m
Keep the unit away from feamable gases, that could cause explosion.
m
Do not use alcohol or other solvents to clean the device. Use a clean cloth soaked in water tightly squeezed to gently wipe the outer
surface of the device.
m
The lifetime of device is 10 years.

1. INTRODUCTION

Elimko
RL1
FT-10
8 8 8 8
P
8 8 8 8
LO
HI
Figure 1.1 FT-10 Front Panel
E-FT-10 is a programmable timer which has pressure control unit,
is used in filter cleaning system. Device contains a control unit and
Output Units, that are controlled by control unit. Control unit
controls the output units on communication line. Operating and
selonoid voltages of output units are supplied from control unit.
Control unit has 8 outputs, each output unit has up to 16 outputs.
Outputs can switch maximum 250 VAC, 1A. Device has 2 alarm
relays. These relays can give an alarm to user, if any problem
exists on output selonoids. RS-485 communication line on the
device works according to Modbus protocol. Configuration
parameters and error messages can also be viewed using Modbus.
Outputs scanning order is configured by comminucation line.
Device has 2 different kind of pressure input according to device
type code, that is explained in
CODING) is selected as "1", pressure inputs are connected
on quick connect, that is shown as LO and HI on the front panel.
In this case, differential pressure is measured by internal pressure
sensor. If U (TYPE CODING) is selected as "2", an analog signal
(current or voltage) is connected to analog input of device. In
these two different situation, pressure value is shown on display,
retransmitted on analog output. Device can perform ON/OFF or
proportional control according to pressure value. These control
methods are explained in
1.1. TYPE CODING
E - FT - 10 - T - U - V - W - X - Y - Z
(1)
Pressure sensor of device works in 7kPa range. If pressure control is
selected as analog input, input type and input range must be defined on
order.
(2)
When X is selected as "1" (Solenoid Voltage Yes) than Y must be selected
as "1".
When X is selected as "1" factory default is 24 VDC.
KY-FT10-0423-1
RL2
OUT
PR
ENTER
PRG

1.1 TYPE CODING

. If U (TYPE
.
Operating Voltage
0: 85-265 VAC / 85-375 VDC
1: 20-60 VAC / 20-85 VDC
Panel
0: None 1: Panel
Selonoid Voltage
0: None
1: Yes
(220 VAC, 24 VAC, 24 VDC)
Communication
0: None 1: RS-485
Analog Output
0: None
1: 1 Analog Output
Number of Output
8: 8 relays
72: 72 relays
16: 16 relays
80: 80 relays
24: 24 relays
88: 88 relays
32: 32 relays
96: 96 relays
40: 40 relays
104: 104 relays
48: 48 relays
112: 112 relays
56: 56 relays
120: 120 relays
64: 64 relays
128: 128 relays
(1)
Pressure Control
0: None
1: Pressure Sensor
2: Analog Input(Current, Voltage)
±
1.2. TECHNICAL SPECIFICATION
Operating Voltage
Display Type
Alarm Outputs
Retransmission Output
Relay Outputs
Relay Mechanical Life
Relay Electrical Life
Control Type
Power Consumption
Operating Temperature
Storage Temperature
Memory
Weight
1.3. DIMENSIONS
Elimko
RL1
RL2
OUT
PR
FT-10
8 8 8 8
P
8 8 8 8
LO
HI
158 mm
(2)
Elimko
85-265 V AC / 85-375 V DC
20-60 V AC / 20-85 V DC
2x4 digit 10 mm 7 segment display
Relay: SPST-NO 250 V AC, 3 A
Current: 0-20 mA, 4-20 mA (isolated)
Minimum 8 Relays, maximum 128 Relays
SPST-NO 250 V AC, 1 A
10 000 000 operation
Almost same as mechanical life, because
the switching is made with semiconductor.
On/Off, Proportional(P)
7W (10 VA)
°
°
0 C, +55 C
(With no condensation or icing)
°
°
-25 C, +55 C
(With no condensation or icing)
EEPROM max. 10000 writing
400 g
ENTER
Elimko
FT-10
PRG
105 mm
90 mm
68 mm
45 mm
Page: 1/7
