Oraimo OSS-L101A - Electric Spin Scrubber Manual

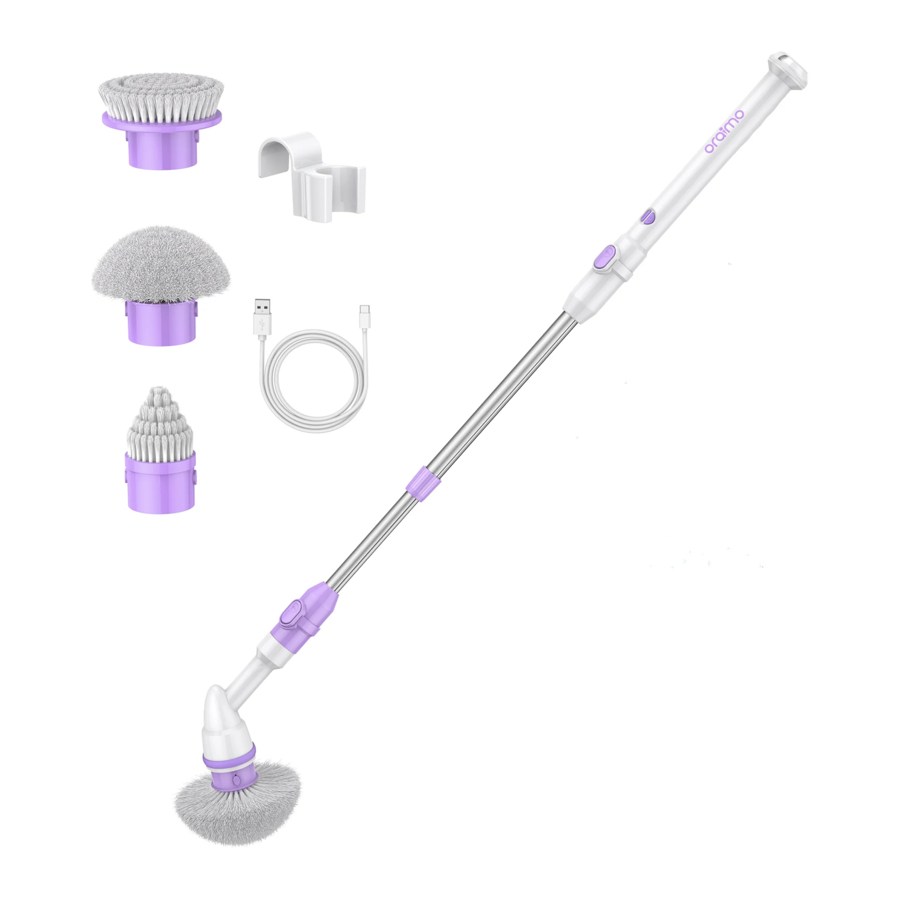

Package Contents

• Spin Scrubber x 1
• Corner Brush x 1
• Large Flat Brush x I
• Dome Brush x 1
• Drying Net x 1
• Type-C Charger Cable x 1
• Hook x 1
• Welcome Guide x 1

Product Overview

1. Charging Port Cover
2. Handle
3. On/Off Button
4. Spin Speed Button
5. Release Button
6. Handle Connector
7. Extension Pole
8. Length Adjust Button
9. Release Button
10. Spin Scrubber Head
11. Brush Connector
12. Corner Brush
13. Large Flat Brush
14. Dome Brush
15. Hook
16. Drying Net

Specifications

Size: 1100*113*71mm
Rated Voltage: DC 3.7V
Battery Capacity: 2500mAh
Material: ABS

Product Operation Instructions

• Always wear rubber gloves and keep proper eye protection to avoid contact from splashing of soaps or detergents on skin and/or eyes while brush head is spinning and when brushes are removed or attached.
• After using oraimo UltraCleaner Scrubber, turn the unit off while brush is still in contact with surface to avoid getting splashed with soaps or detergents.
• Always test on a small, inconspicuous area before using on a larger area. Always follow surface manufacturer's guidelines for cleaning and maintenance,
• Do not expose the unit to excessive water. If oraimo UltraCIeaner Scrubber accidentally becomes submerged in water or water gets into "Charging Port ", shake out liquid and air dry the machine 24 hours at least.

1. Choose proper Brush Attachment and attach to oraimo UltraCIeaner Scrubber as directed in "Assembly Instructions.
   • Dome Brush: Best for large jobs, cleaning tile, and grout.
   • Corner Brush: Best for corners, door tracks, and tight spaces.
   • Large Flat Brush: Best for tough jobs, where you need to focus power on a certain area.
2. Wet the intended area and apply desired cleaning product.
3. Place tip of brush on surface to be cleaned.
4. Press ON/OFF button to switch on the machine then adjust the speed by press speed button.
5. When done, press ON/OFF button to turn off

Charging Instructions

*In order to extend the battery life, please avoid consecutive charging exceed 12 hours. It is not necessary to wait until battery power is fully depleted before recharging.

1. Make sure turn off the machine before charging.
2. Open "Charging Port Cover" located on bottom of "Handle" of machine.
3. Insert cable end of Charger" into 'Charging Port.
4. Plug "Charger" into wall outlet. The indicator light next to "Charging Port" will turn to RED to show the machine is charging.
5. The Red light turns to Blue after the machine is fully charged. Blue light will remain lit when the battery is completely charged.
6. When done close Charging Port Cover".

Cleaning & Maintenance

1. Use a wet, non-abrasive cloth to clean oraimo UltraCIeaner Spin Scrubber. If needed, use a mild detergent. Then place it in a dry environment to allow it to dry thoroughly.
   1. Do NOT immerse or run under water.
   2. Do NOT clean with alcohol or petrol.
2. Rinse Brush attachments under water and clean thoroughly after use. Then place them in a dry environment to air dry them thoroughly.
   Correct Disposal of this product:
   This product uses a Li-ion rechargeable and recyclable battery. When it can no longer be recharged, it should be removed from the unit and recycled.
   The battery must not be incinerated or composted.

Attention
When using the electric spin scrubber, basic precautions should always be followed, including the following:

• Before the first operation read this manual carefully and keep it for future reference.
• This product is not a toy, Close supervision is required when this machine is used by or near children.
  Store out of reach of children.
  To protect against the risk of electric shock, do not put the battery charger in the water or other liquid. Do not charge battery if it is wet or shows signs of corrosion, Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not incinerate the battery. It may explode in a fire. A small leakage from the battery cell may occur under extreme usage, charging or temperature conditions. This does not indicate a failure. However, if the outer seal is broken, cracked or damaged and this leakage gets on your skin: Please wash it immediately with soap and water or neutralize with mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush them immediately with dean water for at least of ten minutes. Seek medical attention.
• Do not charge the unit outdoors, store indoors after each outdoor use.
• This appliance can be used by children aged from 8 years$ and above and persons with reduced physical/ sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved, Children shall not play with the appliance, Cleaning and user maintenance shall not be made by children without supervision.
• Do not use the charger in wet or damp conditions. It is intended for indoor use only. Do not use charger near sinks or tubs. Do not immerse it in water.
• Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces. The charger should be placed away from sinks or hot surfaces.
• Do not operate charger if it has experienced a sharp blow, been dropped, or otherwise damaged in any way. Do not disassemble the charger for any reason. For the best results, do not charge a battery when the air temperature is below 40⁰ F (5 ⁰0 or above 105 ⁰ F go^o c).
  Unplug the charger when not in use or before cleaning.
• Do not abuse the cord. Do not carry the charger by the cord or yank the cord to disconnect, Grasp the charger plug and pull to disconnect. Keep charger cord away from heat and sharp edges,
• Do not operate in the presence of explosives and/or other flammable fumes or liquids.
• If abnormal noise, smell, smoke or any other failure or breakage is found during the operation, turn off the switch and unplug it- Then, contact the customer support team immediately Do not repair by yourself.
• Do not store or use it close to high temperatures.
• Always keep proper eye protection when using the oraimo UltraCleaner Scrubber with irritating substances. Rubber gloves are also recommended.
• Please make sure to turn off the machine first When changing accessories.
• Please make sure to charge the machine when in the OFF position,
• This appliance is only for household use, not for commercial or industrial use

  The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
• Always store the unit indoors.
• Keep hair, loose clothing, and all parts of the body away from moving parts,
• Do not use the appliance when charging.
• Do not submerge the handle in water or other liquid.
• To disconnect, turn all controls to the OFF position, then remove the plug from outlet.
  Do not operate any appliance with a damaged cord or or after the
• appliance malfunctions or is dropped or damaged in any manner.
