FUNCTIONS & FEATURES

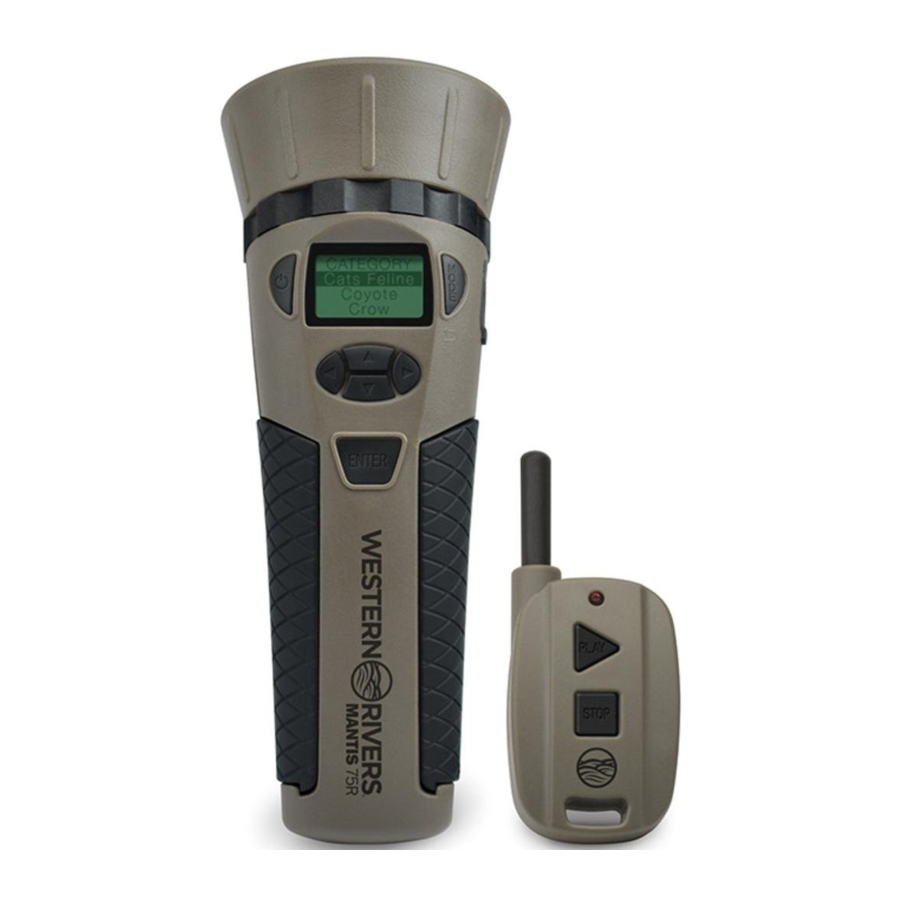

This unit comes preloaded with 75 different animal sound files to play from, plus a remote control unit that allows for remote use up to 300' direct line of sight.

OVERVIEW

BATTERIES

• Game Caller - ‐ (4) AAA – not included
  • Unscrew the battery compartment cover off.
  • Install/Remove batteries from compartment.
  • Place batteries in the proper order to avoid damaging the unit.
  • Screw the battery compartment cover on.
• Remote Control – (1) CR2025 Lithium – not included
  • Remove the four screws from the back of the remote.
  • Carefully removed cover.
  • Replace battery correctly "+" Up / "- ‐" Down to avoid damaging the remote.
  • Carefully replace cover and replace the screws.

BUTTONS

• Power button
  • Hold for 1.5 seconds to turn caller ON.
  • Hold for 1.5 seconds to turn caller OFF.
• Mode/Back button
  • Press "Mode" to toggle to the Main Screen, Sound Selection and Settings.
• Volume – Left & Right Arrows (Default – 50%)
  • The volume buttons will allow the user to adjust the volume in playback/normal mode.
• Scroll – Up & Down Arrows
  • The scroll buttons will allow the user to scroll through items shown on the screen.
• Enter Button
  • The enter button is used to confirm a selection when scrolling through animal categories or sounds. It is also used to select or toggle ON/OFF the "Repeat", "Auto- ‐Backlight", and "Remote" functions.
• Play/Stop Button
  • Located on the underside of the unit.
  • In "Play Back" mode, when pressed, the currently selected sound will be played one time.
  • If the "Repeat" setting is turned on, the caller will continuously playback the selected sound when the Play/Stop button has been pressed.
  • Press again to stop the play back.
• Play Button (Remote)
  • In "Play Back" mode, when pressed the currently selected sound will be played one time.
  • If the "Repeat" setting is turned on, the caller will continuously playback the selected sound when the Play button has been pressed.
• Stop Button (Remote)
  • To stop the playback.

MAIN SCREEN
This is the main screen of the unit that the user will use most of the time. In this screen the user can:

• Play a sound file – Play Button
• Adjust the volume – Volume Buttons
• Select a sound to play – Scroll Buttons
• Change to a different screen – Mode Button

There will be four icons in the bottom of the screen. Those icons are used to display the state of the settings:

• Battery level
• Remote
• Repeat and repeat delay
• Sound level

CATEGORY SCREEN
In this screen the user can select the category group of sound files that will be displayed & played in the main screen.

• When this screen is entered from the Main Screen, the heading "CATEGORY" will display on the screen followed by the categories of sound files.
• The Scroll buttons are used to scroll up and down between the different categories and sounds.
• Pressing the Enter button will take you into that category of sounds.
• Pressing the Mode/Back button will take the user to the Settings.

SETTING SCREEN

• Repeat (Default – OFF)
  • When turned ON, it will repeat the call over and over again.
  • When the unit plays while the repeat is turned OFF, the game call will play 1 time only.
• Repeat Delay (Default – NONE)
  This function sets the length of delay between the calls being repeated.
  • o The options are:
    • None
    • 2 seconds
    • 5 seconds
    • Random
      Note: (Random will be either 2 or 5 seconds picked randomly.)
• Auto- ‐Backlight (Default – ON)
  • When turned ON, the backlight will activate when a button is pressed (except for the Play/Stop button and remote control).
  • When turned off, the backlight won't be active.
• Remote (Default – ON)
  This will toggle the remote function on and off.
  • Toggling off the remote function is meant to save battery life.
• Handheld (Default – OFF)
  This will toggle the handheld function on and off.
  • Toggling off the handheld function is meant to save battery life.

ADDITIONAL FEATURES

• Start up
  • The unit will remember the last settings used; and will start up with these settings.
  • Otherwise it will use the default settings.
• LCD Backlight
  • If auto- ‐backlight is set to "On", the green LED backlight will turn on for 10 seconds any time a button is pressed (except the Play/Stop button).
  • If a button (except the Play/Stop button and remote button) is pressed while the green LED backlight is on, the 10 second clock will reset.
  • The backlight will turn off 10 seconds after the last button press.
  • The Play/Stop button will never activate the LCD backlight.
• Auto Power Off
  • If the remote function is set to ON, after 5 hours of no activity, the unit will automatically power OFF. The user must press the power button to play a sound.
  • If the remote function is set to OFF, after 30 minutes with no buttons being pressed, the unit will automatically power OFF. The user must press the power button to play a sound.
• Audio Jack (For external speaker)
  • The 3.5mm jack will auto detect if the jack is being used or not.
  • When the 3.5mm jack is being used, there is NO audio playing from the internal speaker.

SPECIFICATIONS

• Game Caller
  • LCD screen:
    • Monochromatic dot matrix LCD screen
    • Green LED backlight
  • Speaker:
    • 2" Mylar speaker
  • Batteries:
    • (4) AAA batteries (not included)
  • External speaker jack:
    • 3.5mm
• Remote Control
  • o Battery:
    • CR2025 Lithium Battery
