Summary of Contents for WP Suspension XACT PRO 7500

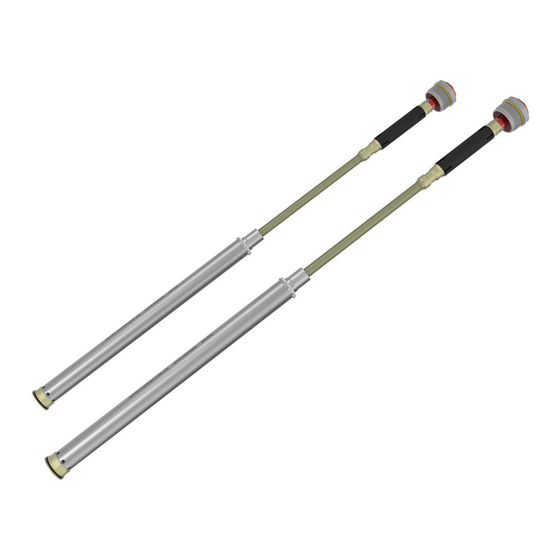

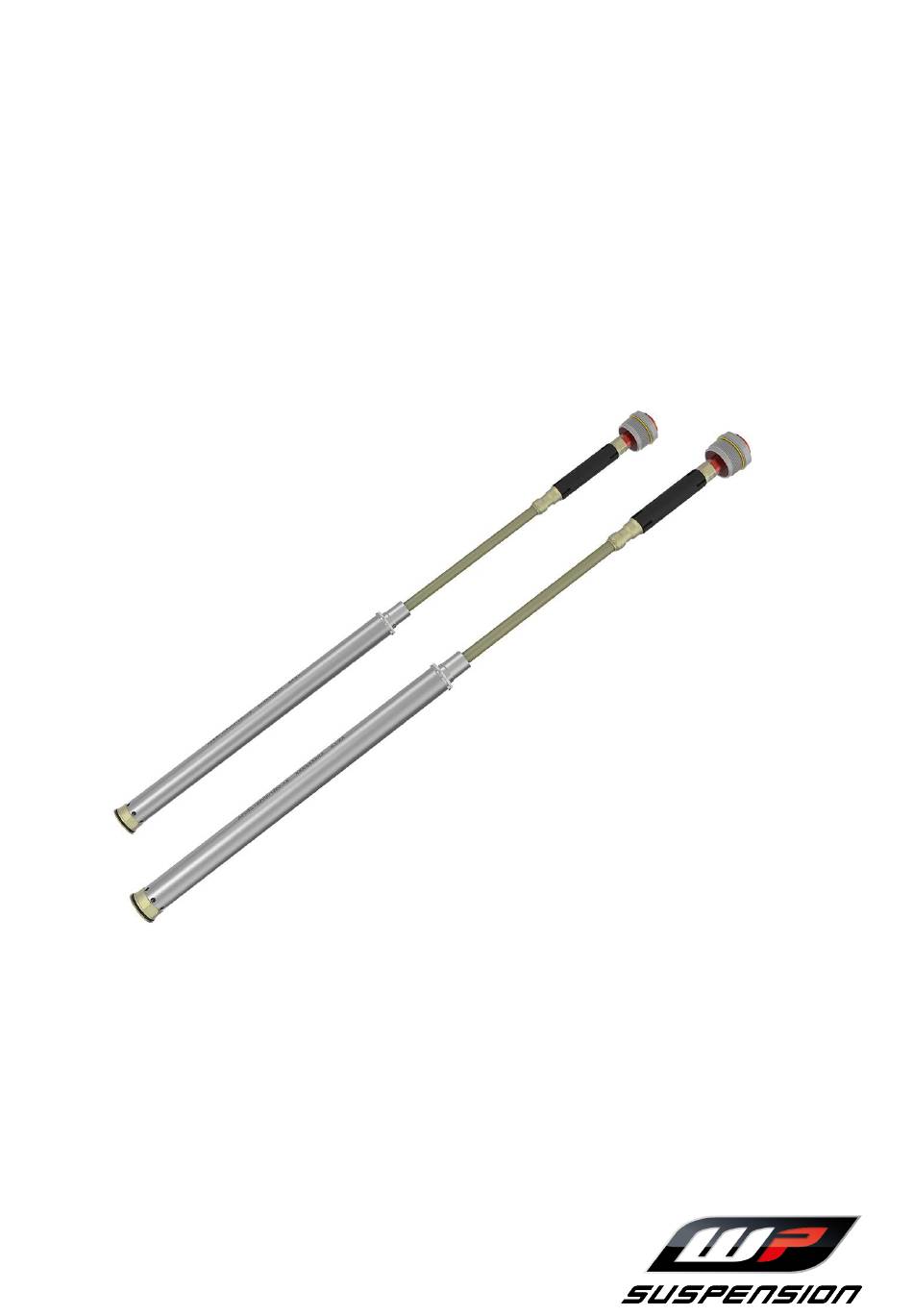

- Page 1 OWNER'S MANUAL XACT PRO 7500 Art. no. 53000268en http://www.wp-suspension.com...
- Page 3 All specifications contained herein are non-binding. WP Suspension GmbH specifically reserves the right to modify or delete technical specifications, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without providing reasons, to adapt these to local conditions, as well as to stop the production of a particular model without prior notice.
-
Page 4: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS TUNING THE CHASSIS........14 MEANS OF REPRESENTATION......3 Checking the basic chassis setting Symbols used ........3 with the rider's weight......14 Formats used ........3 Checking the basic setting of the SAFETY ADVICE ..........4 fork............ -
Page 5: Means Of Representation 1
MEANS OF REPRESENTATION 1 Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). All work marked with this symbol requires specialist knowledge and technical understand- ing. -
Page 6: Safety Advice
2 SAFETY ADVICE Use definition – intended use This chassis component is designed and built to withstand the normal stresses and strains of regular racing. Info Only use this chassis component in closed-off areas remote from public road traffic. Only use this chassis component in the vehicle for which the chassis component is approved and/or recommended. -
Page 7: Work Rules
SAFETY ADVICE 2 If there are faults, which impair safety, have them immediately remedied in a WP Authorized Center. Adhere to the information and warning labels on the chassis component. Work rules Special tools are necessary for certain tasks. The tools are not a component of the chassis component, but can be ordered using the number in parentheses. -
Page 8: Important Notes
Customer service If you have any questions about your chassis component or WP, your WP Authorized Center will be pleased to advise you. A list of WP Authorized Centers can be found on the WP website. International WP Suspension website: http://www.wp-suspension.com... -
Page 9: Serial Numbers 4
SERIAL NUMBERS 4 Cartridge article number Cartridge article number is located on the cartridge. M01944-10... -
Page 10: Preparing For Use
5 PREPARING FOR USE Advice on preparing for first use Warning Danger of accident Modifications to the suspension setting may seriously alter the handling charac- teristic. Extreme modifications to the suspension setting may cause a serious deterioration in the handling characteristic and overload components. –... -
Page 11: Riding Instructions 6
RIDING INSTRUCTIONS 6 Checks and maintenance measures when preparing for use Info Before every use, check the condition of the chassis component and ensure that it is safe to operate. The chassis must be in perfect technical condition when it is being operated. –... -
Page 12: Service Schedule
7 SERVICE SCHEDULE Additional information Any further work that results from the required work or from the recommended work must be ordered sepa- rately and can be invoiced separately. Different service intervals may apply in your country, depending on the local operating conditions. Required work Every 40 operating hours ●... -
Page 13: Service Work On The Chassis 8
Installing the WP PRO COMPONENTS fork legs – Install the WP PRO COMPONENTS cartridge in accordance with WP Suspension fitting instructions. Info No fork springs are included with the WP PRO COM- PONENTS cartridge. Fork springs can be obtained at an authorized WP center. -
Page 14: Bleeding The Fork Legs
8 SERVICE WORK ON THE CHASSIS Bleeding the fork legs Preparatory work – Raise the motorcycle with a lift stand. ( p. 11) Main work – Release bleeder screws Any excess pressure escapes from the interior of the fork. – Tighten the bleeder screws. -
Page 15: Removing The Motorcycle From The Lift Stand
SERVICE WORK ON THE CHASSIS 8 Removing the motorcycle from the lift stand Note Danger of damage The parked vehicle can roll away or fall over. – Park the vehicle on a firm and level surface. – Remove the motorcycle from the lift stand as per the instruc- tions of the vehicle manufacturer. -
Page 16: Tuning The Chassis
9 TUNING THE CHASSIS Checking the basic chassis setting with the rider's weight – For optimal motorcycle riding characteristics and to avoid damage to forks, shock absorbers, link fork and frame, the basic settings of the suspension components must match the rider's weight. -
Page 17: Adjusting The Rebound Damping Of The Fork
TUNING THE CHASSIS 9 Guideline Compression damping Comfort 17 clicks Standard 15 clicks Sport 12 clicks Info Turn clockwise to increase damping; turn counter- clockwise to reduce damping during compression. Adjusting the rebound damping of the fork Info The hydraulic rebound damping determines the fork suspension behavior. –... - Page 18 9 TUNING THE CHASSIS Main work – Turn preload adjuster counterclockwise to the last percepti- ble click. Ring wrench (T1307) Info The ring wrench is included. Make the same adjustment on both fork legs. M01947-01 – Turn clockwise by the number of turns corresponding to the fork type.
-
Page 19: Technical Data 10
TECHNICAL DATA 10 10.1 Fork Cartridge article number AP08C102V001230 Cartridge XACT PRO 7500 Compression damping Comfort 17 clicks Standard 15 clicks Sport 12 clicks Rebound damping Comfort 17 clicks Standard 15 clicks Sport 12 clicks Spring preload – preload adjuster... -
Page 20: Substances
11 SUBSTANCES Fork oil (SAE 4) (48601166S1) Standard/classification – SAE ( p. 19) (SAE 4) Guideline – Use only oils that comply with the specified standards (see specifications on the container) and that exhibit the corresponding properties. -
Page 21: Standards 12
STANDARDS 12 The SAE viscosity classes were defined by the Society of Automotive Engineers and are used for classifying oils according to their viscosity. The viscosity describes only one property of oil and says nothing about quality. -
Page 22: Index Of Special Terms
13 INDEX OF SPECIAL TERMS Preload adjuster Device on the suspension components that enables the adjustment of the spring preload... -
Page 23: List Of Abbreviations 14
LIST OF ABBREVIATIONS 14 Art. no. Article number circa compare e.g. for example etc. et cetera i.a. inter alia number poss. possibly... -
Page 24: Index
INDEX INDEX Service schedule ..... . 10 Spare parts ......6 Accessories . - Page 25 *53000268en* 53000268en 08/2021 WP Suspension GmbH 5230 Mattighofen | Austria http://www.wp-suspension.com...
