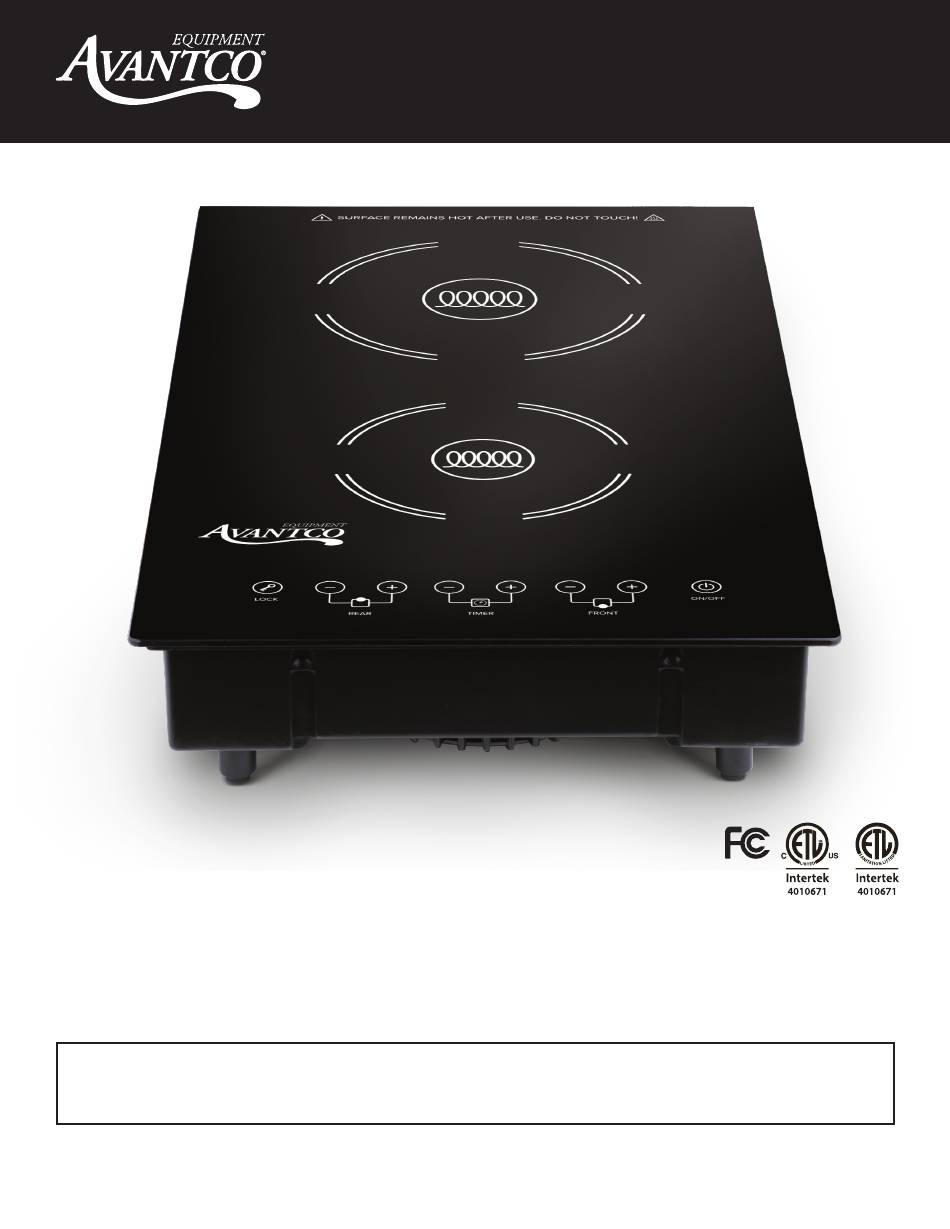

- Page 1 User Manual User Manual CONFORMS TO UL STD. 197 CONFORMS TO NSF/ANSI STD. 4 Double Drop-In Induction Range Model: 177ID18DB, 177ID18SBSA, 177ID18DBA 06/2023 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
-
Page 2: Table Of Contents
User Manual Index Important Safeguards ....... . . 2 In The Box ......... . 4 Before First Use. - Page 3 User Manual CAUTION! AN ELECTRIC APPLIANCE IS NOT A TOY! • Never leave the appliance unsupervised when in use. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 4: In The Box
User Manual • Do not place any kind of tissues or cloth or other objects which are easily flammable under or on the appliance to avoid the risk of fire or electrical shock. Never store flammable products near the appliance, they could catch fire. - Page 5 User Manual Functions & Advantages of Induction Cooking The bottom of the Eddy currents cookware is made heat the bottom of of magnetic material the cooking pot Alternating Control element electromagnetic field ca. 25KHz/60Hz • The cookware must be magnetic. Before switching on the appliance, always place the magnetic cookware centered onto the cooking field.
- Page 6 User Manual Technical operating mode A copper induction spool under the glass plate generates an alternating electro-magnetic field. The eddy current creates magnetic fields and directly heats up the bottom of the cookware. The eddy current changes immediately into heat. The glass plate itself stays cold, but the hot bottom of the cookware releases its heat to the glass plate and heats it up.
- Page 7 User Manual Installation Instructions Installation must conform to all applicable codes. Improper installation will void the manufacturer’s warranty. Do not obstruct or reduce the airflow of the ventilation openings on the sides, bottom, or the rear of the unit. Blocking airflow could cause the unit to overheat. Do not install near any combustible surfaces.
-
Page 8: Operation
User Manual Operation CAUTION! NEVER LEAVE THE APPLIANCE UNATTENDED WHEN IT IS IN OPERATION! Please follow the sequence below when adjusting the appliance. You can adjust power level, temperature, and cooking time (minutes) by using the “+” key to increase or “-” key to decrease. The appliance provides 2 induction cooking plates. - Page 9 User Manual MODEL NO. 177ID18DB, 177ID18DBA www.AvantcoEquipment.com...
- Page 10 User Manual 14 17 in 20 47 in 360 mm 520 mm 3.03 in 77 mm 55 mm MODEL NO.: 77ID18DBA MODEL NO. 177ID18SBSA www.AvantcoEquipment.com...
-
Page 11: Control Panel
User Manual Control Panel LED Display LED Display LED Display Lock Rear Burner Timer Controls Front Burner ON/OFF Controls Controls Safety Functions Safety Indicates Procedure Code Please make sure to you are using the correct and high quality induction-ready cookware. Steel, cast iron, enameled iron, or stainless steel with flat-bottom Without Cookware or pans / pots with diameter from 5"... -
Page 12: Cleaning, Maintenance, & Storage
User Manual Safety Indicates Procedure Code Top Plate Sensor Open Circuit or without connection The sensor has been damaged. Could be damaged during the shipping. If you can see loose wires, then contact customer service. The connection of sensor and PCB is bad because the fasteners are loose.
