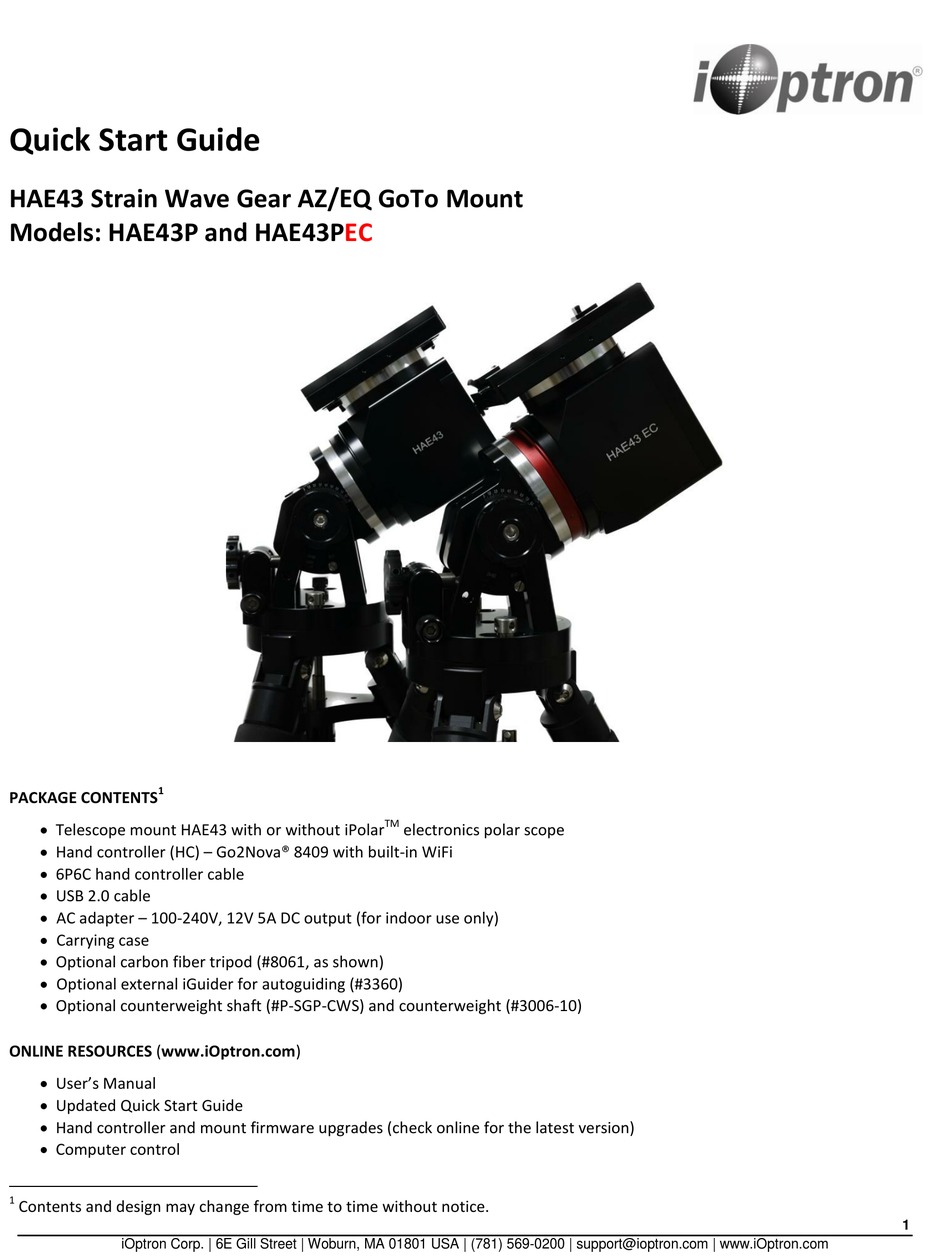

Quick Start Guide
HAE43 Strain Wave Gear AZ/EQ GoTo Mount
Models: HAE43P and
1
PACKAGE CONTENTS
 Telescope mount HAE43 with or without iPolar
 Hand controller (HC) – Go2Nova® 8409 with built-in WiFi
 6P6C hand controller cable
 USB 2.0 cable
 AC adapter – 100-240V, 12V 5A DC output (for indoor use only)
 Carrying case
 Optional carbon fiber tripod (#8061, as shown)
 Optional external iGuider for autoguiding (#3360)
 Optional counterweight shaft (#P-SGP-CWS) and counterweight (#3006-10)
ONLINE RESOURCES (www.iOptron.com)
 User's Manual
 Updated Quick Start Guide
 Hand controller and mount firmware upgrades (check online for the latest version)
 Computer control
1
Contents and design may change from time to time without notice.
iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | support@ioptron.com | www.iOptron.com
HAE43PEC
TM
electronics polar scope
1
