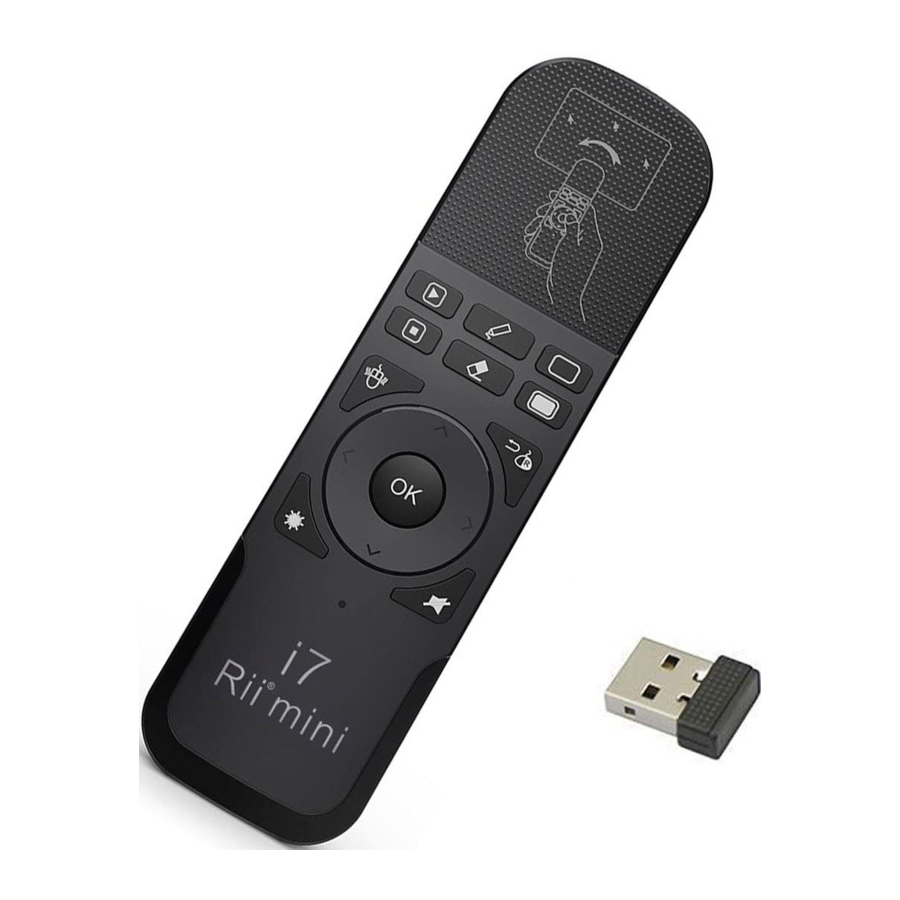

Rii mini i7 - Remote Control Manual

Overview

You can use it for emails, chat, or to enjoy your favorite games. It is compatible with HTPC, Smart TV, TV BOX running Android systems. It also supports Sony Playstation3. Use it with your HTPC on your Sofa or browse the internet in the most comfortable fashion.

Package Contents

• Air Mouse Keyboard
• USB Wireless Receiver
• User Manual
• AAA * 2 battery(Optional)

System Requirements

• HID compatible device
• Terminal with USB port
• Windows 2000
• Windows XP
• Windows Vista, Windows CE, Windows 7, Windows 8
• Linux (Debian-3.1,Redhat-9.0, Ubuntu-8.10, Fedora-7.0 tested)
• Android OS (With standard USB interface)

Specifications

• Receiver(dongle): Nano style
• Connection port: With USB2.0 above
• Transmission mode: GFSK 2.4GHz, up to 10 meters
• Transmission Power: Less than +4db
• Power supply: AAA * 2 battery
• Sleeping current class1: 30uA
• Operation voltage: 3V
• Operating current: <15mA
• Product Weight: 65g (Contains battery and receiver)
• Product Size: 132*40*22mm

Installation

• Open the battery compartment located on the backside of the keyboard and pick up USB receiver.
• Insert the USB Receiver into an available USB port.
• Place 2PCS AAA batteries into the remote battery chamber.
• Turn on the keyboard with Press any keys.
• The remote is found and installed automatically. No further actions are required – you are now ready to use your remote!

NOTE: When the battery is low, the low-voltage light will blink to warn the user. The unit will be automatically turned off if the battery has been depleted. Need to replace AAA * 2 batteries

Using Air mouse

Air mouse function relies on specific keys to activate. In the open status, the mouse will folloo help you perform the moving, clicking, dragging, etc. In any status, you can click the Switch button to lock the mouse and the terminal will enter sleep mode. In locked status, you can click any key to activate it.
You will enjoy more convenience and control on-screen menu easier.

Auto Sleep and Wake-up feature

The keyboard supports auto sleep and wake-up. Without operation around 3 minutes, the keyboard will enter sleep mode. In sleep status, all LED indicators are off. Pressing any key can wake it up.

• Never try to open or repair this product yourself.
• Keep this device away from fluids, such as water.

Maintenance

• Do not attempt to disassemble the device.
• Doing so will void the warranty.
• The battery will discharge if it is stored for a long time without operation.
• Do not expose the device in extreme heat or cold environment, which will shorten the battery life.

Disposal

Always dispose the used appliance at a recycling centre.
Do not dispose the used appliance together with the household waste.

Notice:
Due to 2.4G wave technology adoption, the connection can be subject to interference from obstacles, like walls, metals, or other electronic devices. Please keep the space between the keyboard and USB receiver free of obstacle.
In line with the policy of continued development, the manufacturer reserves the right to amend. The specifications without prior notification. The illustrations in the user manual are for reference only. Please operate according to the real design.
