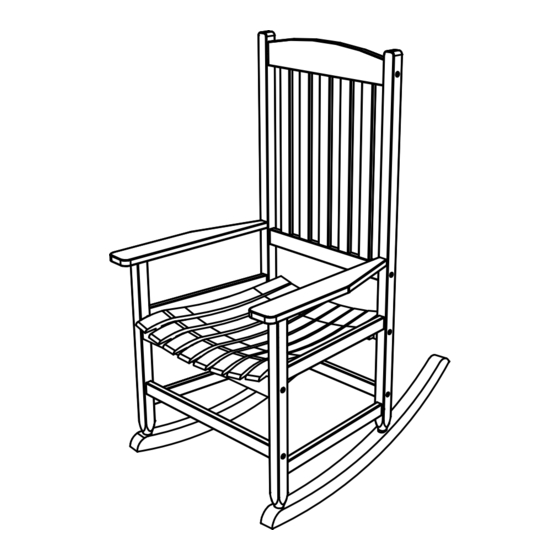

Savannah White Acacia Wood Outdoor Rocking Chair
ASSEMBLE ON A FLAT, CLEAN NON-MARRING SURFACE
PART LI
ST:
A
B
C
D
E
F
G
(Ø6x60mm) X 16 PCS
UNPACK ALL HARDWARE BAGS AND
COMPONENTS TO ENSURE YOU HAVE
ALL PARTS.
HAVE 2 ADULTS ON HAND FOR
ASSEMBLY.
HELPFUL HINTS
1. MAKE SURE ALL PARTS ARE INCLUDED BEFORE ASSEMBLY
2. TO PREVENT PREMATURE CRACKING OF PARTS, ASSEMBLE LOOSE AND ONLY TIGHTEN ALL SCREWS AT
THE LAST STEP, UNLESS SPECIFIED OTHERWISE.
89-RC01WH, 89-RC01BL
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
2 PCS
HARDWARE AND TOOL:
SCREW
RIGHT FRAME
BACK
SEAT
SHORT SPINDLE
LONG SPINDLE
LEFT FRAME
ROCK RAIL
ALLEN KEY X 1
READ INSTRUCTIONS IN DETAIL, PAGE TO
PAGE.
SAVE ALL PACKAGING UNTIL FINISHED
Page 1/2
Advertisement
Summary of Contents for Savannah 89-RC01WH
- Page 1 Savannah White Acacia Wood Outdoor Rocking Chair 89-RC01WH, 89-RC01BL ASSEMBLE ON A FLAT, CLEAN NON-MARRING SURFACE PART LI 1 PC RIGHT FRAME 1 PC BACK 1 PC SEAT 1 PC SHORT SPINDLE 1 PC LONG SPINDLE 1 PC LEFT FRAME...
- Page 2 ASSEMBLY INSTRUCTIONS (CONTINUED) ASSEMBLY STEPS: ASSEMBLE LOOSE FIRST AND THEN TIGHTEN Fully tighten the rock rail to the left and right frames. Fully tighten all screws Page 2/2...
