PCB Piezotronics ICP HT352B01 Installation And Operating Manual page 15

Model Number
352B01
Performance
Sensitivity(± 20 %)
Measurement Range
Frequency Range(± 5 %)
Frequency Range(± 10 %)
Resonant Frequency
Broadband Resolution(1 to 10,000 Hz)
Non-Linearity
Transverse Sensitivity
Environmental
Overload Limit(Shock)
Temperature Range(Operating)

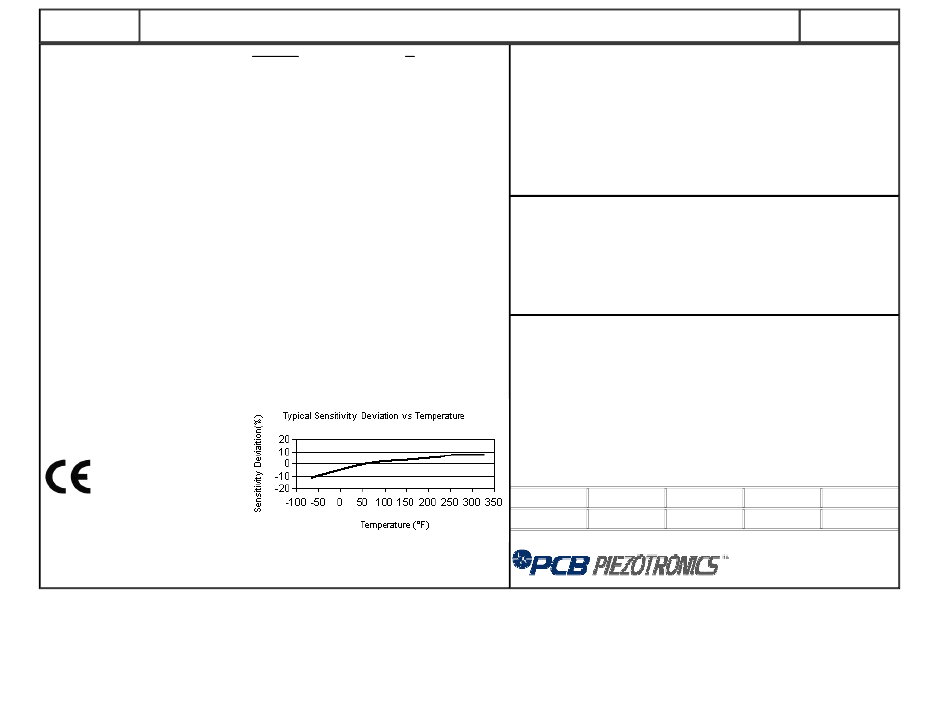

Temperature Response
Electrical
Excitation Voltage
Constant Current Excitation
Output Impedance
Output Bias Voltage
Discharge Time Constant
Physical
Size (Diameter x Height)
Weight(without cable)
Sensing Element
Sensing Geometry
Housing Material
Sealing
Electrical Connector Solder pins with attached cable
Electrical Connection Position
Cable Length
Cable Type
Mounting
[4]
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
®
ICP is a registered trademark of PCB Group, Inc.
ICP® ACCELEROMETER
ENGLISH SI
1.0 mV/g 0.10 mV/(m/s²)
± 5000 g pk ± 49,050 m/s² pk
2 to 10,000 Hz 2 to 10,000 Hz
1 to 20,000 Hz 1 to 20,000 Hz
≥ 65 kHz ≥ 65 kHz
0.02 g rms 0.2 m/s² rms
≤ 1 % ≤ 1 %
≤ 5 % ≤ 5 %
± 10,000 g pk ± 98,100 m/s² pk
-65 to +250 °F -54 to +121 °C
See Graph See Graph
18 to 30 VDC 18 to 30 VDC
2 to 20 mA 2 to 20 mA
≤ 200 Ohm ≤ 200 Ohm
7 to 12 VDC 7 to 12 VDC
0.3 to 1.0 sec 0.3 to 1.0 sec
0.24 in x 0.32 in 6.1 mm x 8.1 mm
0.03 oz 0.7 gm
Ceramic Ceramic
Shear Shear
Titanium Titanium
Welded Hermetic Welded Hermetic
Solder pins with attached cable
Top Top
10 ft 3 m
030 Coaxial 030 Coaxial
Adhesive Adhesive
OPTIONAL VERSIONS
Optional versions have identical specifications and accessories as listed for the standard model
except where noted below. More than one option may be used.
HT
- High temperature, extends normal operation temperatures
Temperature Range(Operating)
[2]
[3]
[1]
[2][1]
NOTES:
[1] 250° F to 325° F data valid with HT option only.
[2] Typical.
[3] Zero-based, least-squares, straight line method.
[4] See PCB Declaration of Conformance PS023 for details.
[2]
SUPPLIED ACCESSORIES:
Model 080A109 Petro Wax (1)
Model 080A90 Quick Bonding Gel (1)
Model ACS-1 NIST traceable frequency response (10 Hz to upper 5% point). (1)
Entered: AP Engineer: JJB
Date: 11/8/2013 Date: 11/8/2013
3425 Walden Avenue, Depew, NY 14043
Revision: D
ECN #: 42197
-65 to +325 °F -54 to +163 °C
Sales: WDC Approved: JJB Spec Number:
Date: 11/8/2013 Date: 11/8/2013
Phone: 716-684-0001
Fax: 716-684-0987
E-Mail: info@pcb.com
20666
