SM1911M Us er Ma nual

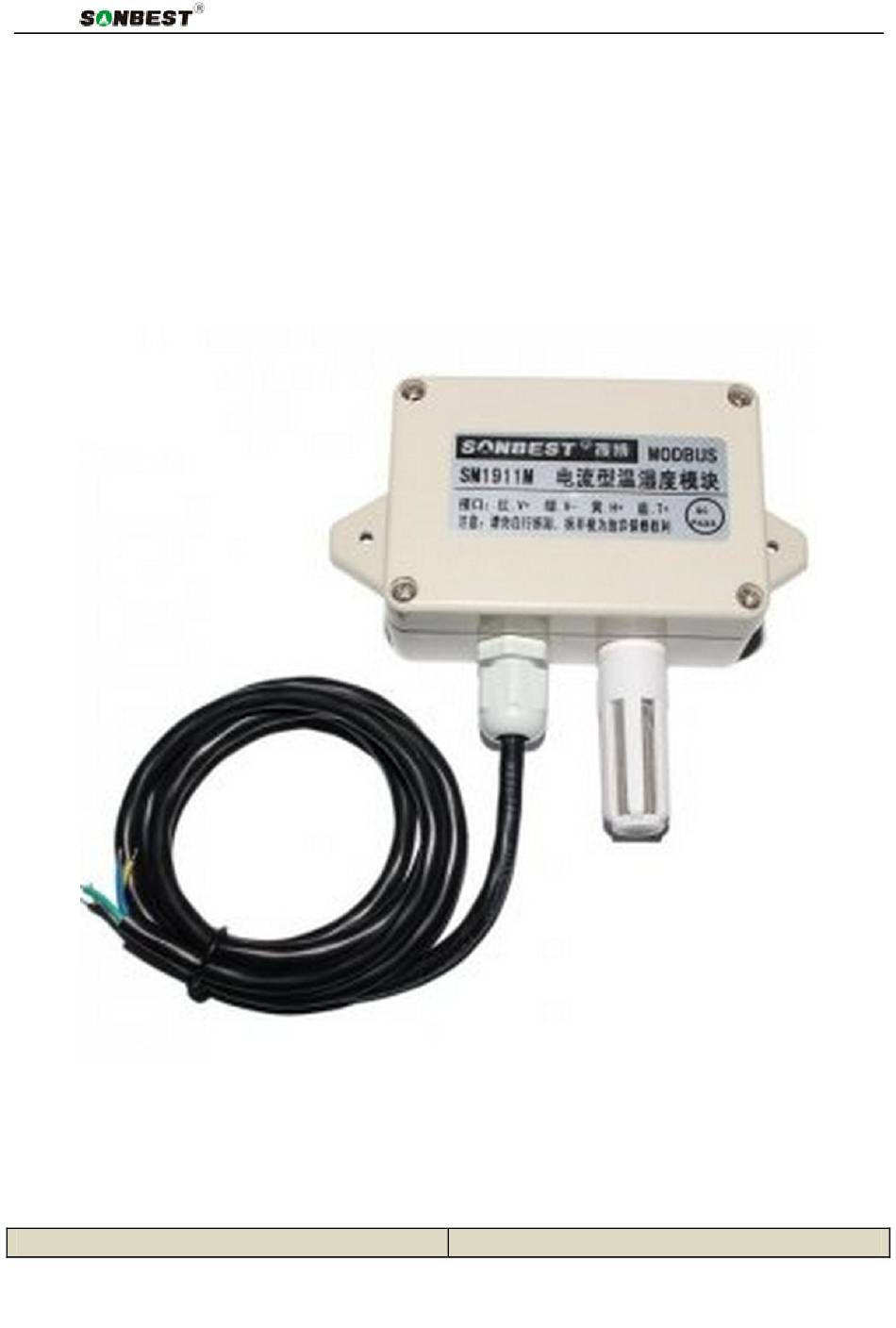

SM1911M
4-20mA current type temperature and humidity sensor
User Manual
File Version: V22.1.17
SM1911M using the standard DC4-20mA current output signal,easy access to PLC，DCS and other
instruments or systems for monitoring temperature,humidity state quantities.The internal use of
high-precision sensing core and related devices to ensure high reliability and excellent long-term
stability,can be customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and
other output methods.
Technical Parameters
Technical parameter
Parameter value
best Industrial Co., Ltd
Page1
Sha nghai Son
Advertisement
Related Manuals for SONBEST SM1911M
Summary of Contents for SONBEST SM1911M
- Page 1 User Manual File Version: V22.1.17 SM1911M using the standard DC4-20mA current output signal,easy access to PLC，DCS and other instruments or systems for monitoring temperature,humidity state quantities.The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability,can be customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.
- Page 2 SM1911M Us er Ma nual Brand SONBEST Temperature measuring range -30℃~80℃ ±0.5℃ @25℃ Temperature measuring accuracy Humidity measuring range 0~100%RH ±3%RH @25℃ Humidity accuracy Communication Interface DC4~20mA Power DC12~24V 1A Running temperature -40~80° C Working humidity 5%RH~90%RH Wiring instructions Any incorrect wiring can cause irreversible damage to the product.
- Page 3 SM1911M Us er Ma nual (80-(-30))*(12-4)÷ (20-4)+-30 31.875 (80-(-30))*(13-4)÷ (20-4)+-30 38.75 (80-(-30))*(14-4)÷ (20-4)+-30 45.625 (80-(-30))*(15-4)÷ (20-4)+-30 52.5 (80-(-30))*(16-4)÷ (20-4)+-30 59.375 (80-(-30))*(17-4)÷ (20-4)+-30 66.25 (80-(-30))*(18-4)÷ (20-4)+-30 73.125 (80-(-30))*(19-4)÷ (20-4)+-30 (80-(-30))*(20-4)÷ (20-4)+-30 As shown in the above formula, when measuring 8mA, current current is 31.5 ℃。...
- Page 4 SM1911M Us er Ma nual Contact Us Company: Shanghai Sonbest Industrial Co., Ltd Address:Building 8,No.215 North east road,Baoshan District,Shanghai,China Web: http://www.sonbest.com Web: http://www.sonbus.com SKYPE: soobuu Email: sale@sonbest.com Tel: 86-021-51083595 / 66862055 / 66862075 / 66861077 best Industrial Co., Ltd...
