AXA RK 8U Quick Start Manual

®
®
Assembly is EASY and offers wide-ranging configurations for your A/V equipment.
Scan QR Codes for product details, videos and website.

important notes:

1. corner pillars have two different sized threaded holes on each side.
2. make sure to use corresponding hole size with correct threaded screw size.
3. corner pillars can be installed using all 6mm side, all 5mm side or both.
4. corner pillars should be installed in unison.
RK SERIES
RK-8U
RK
22U
RK
16U

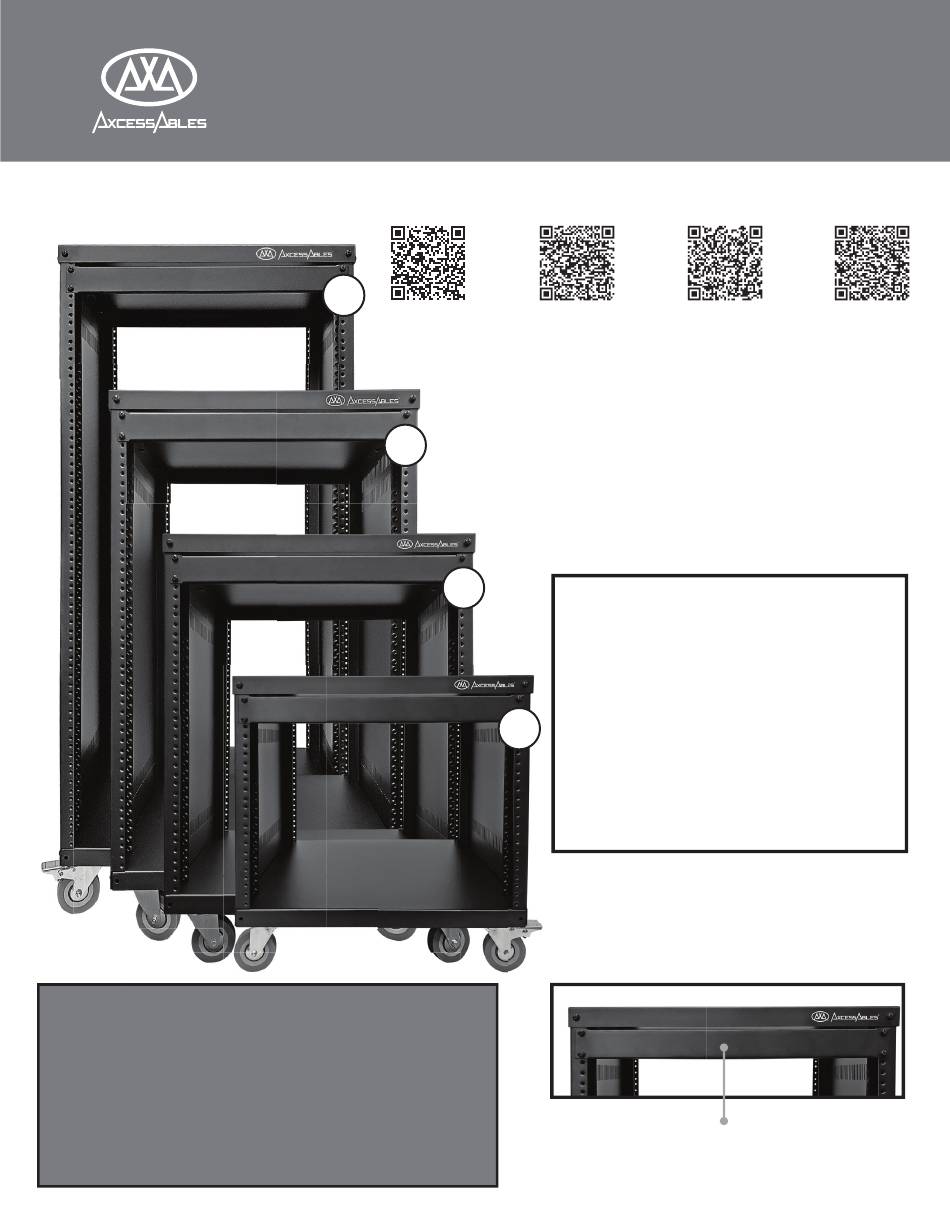

UNIVERSAL EQUIPMENT RK SERIES
ROLLING CABINET A/V RACKS
RK-12U
● WHEELS COME ALREADY INSTALLED FOR convenience.
● Unpack all pieces. CAREFULLY DISCARD ALL PLASTIC
BAGS AWAY FROM CHILDREN AND PETS.
● Depending on where you live, there are two options for rack
mounting screws (5mm North America and 6mm Europe).
The 5mm side is marked by the two slots on each of the
CORNER PILLARS.
● Assemble the four CORNER PILLARS to the base first.
(Use the included screwdriver)
RK
12U
PLEASE PAY ATTENTION TO THESE DETAILS
FOR A STRAIGHTFORWARD INSTALLATION.
● CORNER PILLARS can be installed 4 WAYS:
1. ALL (5mm) Holes facing out
RK
2. ALL (6mm) Holes facing out
8U
3. (6mm) Holes on the front and (5mm) Holes
in the back OR
4. (5mm) Holes on the front and (6mm) Holes
in the back
● ● Remove all top screws from installed CORNER PILLARS.
● Insert SIDE PANELS and tighten bottom screws in place.
● Install TOP PLATE and tighten all remaining screws.
AxcessAbles RK Series Cabinets include a complimentary
AxcessAbles RKBLNK1U
RK-16U RK-22U
Universal 1U Blank Rack Panel Spacer.
