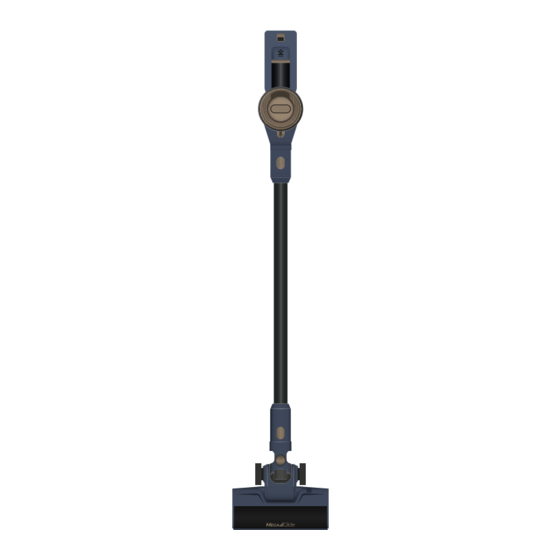

Summary of Contents for Avalla D-3

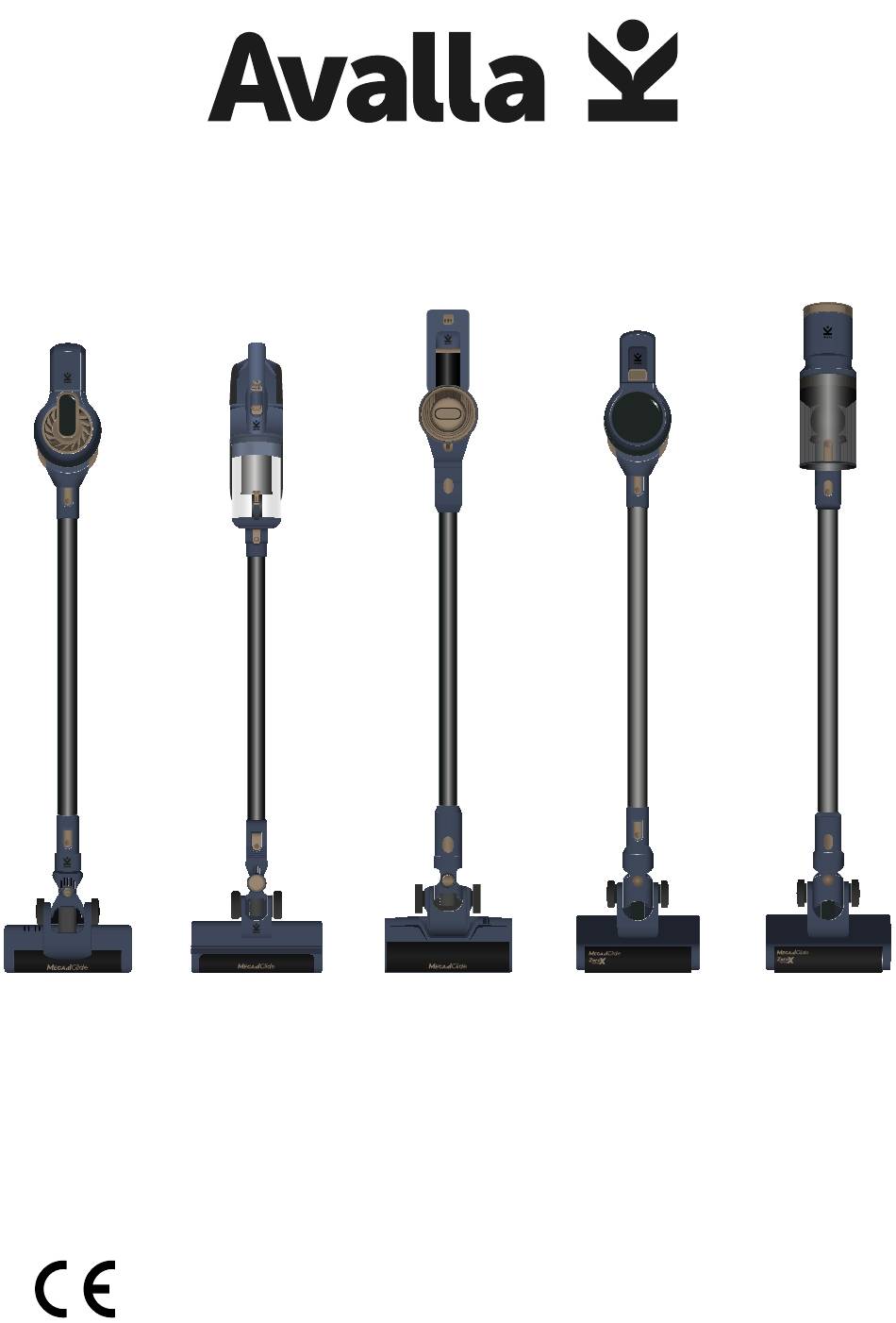

- Page 1 Vacuum Cleaner D-50 D-70 Read this manual carefully before use and keep it for future reference. Failure to do so may result in injury, property damage and may void the warranty. avalla.com...
-
Page 2: Table Of Contents
Contents Contents Quick start guide: D-3 • Parts guide • Assembly and operation Emptying and Cleaning: D-3 Charging: D-3 Quick start guide: D-5 • Parts guide • Assembly and operation • Control panel Emptying and Cleaning: D-5 Charging: D-5 Quick start guide: D-9 •... - Page 3 Buy your spare filters and accessories at: www.avalla.com...
-
Page 4: Quick Start Guide
Quick start guide: D-3 Parts guide Focus tool Brush tool Charging dock 01. Power trigger 02. Dust bin 03. Battery 04. Battery indicator 05. T.Link connection 06. Extension tube 07. Mega-Glide floor brush Caution: Make sure the unit is switched off before swapping parts. -
Page 5: Assembly And Operation
• Attach your chosen accessory • Press and hold the ‘Power trigger’ to turn the D-3 on. • Press the ‘Power trigger’ to switch to high speed. • Press the ‘Power trigger’ again to turn the D-3 off. -
Page 6: Emptying And Cleaning
Emptying and Cleaning: D-3 08. Dust bin 11. HEPA filter 09. Lock 12. Stainless steel pre-filter 10. Dust bin lid Emptying the dust bin • Press the ‘Lock’ to release the ‘Dust bin lid’. • Empty the ‘Dust bin’. Cleaning the bin/filters •... -
Page 7: Charging
14. Power in 17. Battery release 15. Mounting holes (x4) (one on each side of battery) The D-3 can be charged in two ways; via the wall mounted ‘Charging dock’ or by plugging the unit in directly. Charging dock •... -
Page 8: Quick Start Guide
Quick start guide: D-5 Parts guide Focus tool Brush tool 01. Power input 02. Battery (underside of unit) 03. Control panel 04. Dust bin 05. T.Link connection 06. Extension tube 07. Mega-Glide floor brush Caution: Make sure the unit is switched off before swapping parts. Make sure attachments are securely locked in place before use. -
Page 9: Assembly And Operation
Assembly and operation Any of the accessories can be attached to the ‘Extension tube’ or directly to the body giving you a portable and versatile vacuum cleaner, suitable for any situation. Control panel 08. Dust bin release 09. Battery indicator 10. -
Page 10: Emptying And Cleaning
Emptying and Cleaning: D-5 13. Dust bin release 16. Stainless steel pre-filter 14. Lid Lock 17. Dust bin 15. HEPA filter Emptying the dust bin • For easy emptying, pull the ‘Dust bin release’ and lift the ‘Dust bin’ up and away from the main body. •... -
Page 11: Charging
Charging: D-5 18. Charging port (back of unit) 19. Battery release (base of unit) Direct charge • Plug the power adaptor into the ‘Charging port’. • The ‘Battery indicator’ will flash to show the charge level. Battery • To remove the battery, pull the ‘Battery release’ and remove the battery from the unit. -
Page 12: Quick Start Guide
Quick start guide: D-9 Parts guide Focus tool Brush tool Wall bracket 01. Battery 02. Dust bin 03. Control panel 04. V.Link connection 05. Extension tube 06. Mega-Glide floor brush Caution: Make sure the unit is switched off before swapping parts. Make sure attachments are securely locked in place before use. -
Page 13: Assembly And Operation
Assembly and operation Any of the accessories can be attached to the extension tube or directly to the body giving you a portable and versatile vacuum cleaner, suitable for any situation. Control panel 07. Battery indicator 08. Speed 09. Power •... -
Page 14: Emptying And Cleaning
Emptying and Cleaning: D-9 10. Dust bin release 13. HEPA filter 11. Lid Lock 14. Stainless steel pre-filter 12. Dust bin lid 15. Dust bin Emptying the dust bin • For easy emptying, press the ‘Dust bin release’ and twist the ‘Dust bin’... -
Page 15: Charging
Charging: D-9 16. Mounting holes (x2) 18. Charging port (back of unit) 17. Tool storage 19. Battery release Wall bracket • Find a suitable place to mount the ‘Wall bracket’. • Mount the ‘Wall bracket’ using appropriate screws and wall plugs. -
Page 16: Quick Start Guide
Quick start guide: D-50 Parts guide Focus tool Brush tool Charging dock 01. Power trigger 02. Dust bin 03. Battery 04. Control panel 05. T.Link connection 06. Extension tube 07. Mega-Glide ZeroX floor brush Caution: Make sure the unit is switched off before swapping parts. Make sure attachments are securely locked in place before use. -
Page 17: Assembly And Operation
Assembly and operation Any of the accessories can be attached to the extension tube or directly to the body giving you a portable and versatile vacuum cleaner, suitable for any situation. Control panel 08. Light bar 09. Speed 10. Floor brush indicator 11. -
Page 18: Emptying And Cleaning
Emptying and Cleaning: D-50 16. Dust bin 19. HEPA filter 17. Lock 20. Stainless steel pre-filter 18. Dust bin lid Emptying the dust bin • Press the ‘Lock’ to release the ‘Dust bin lid’. • Empty the ‘Dust bin’. Cleaning the bin/filters •... -
Page 19: Charging
Charging: D-50 21. Charger release 24. Charging port (base of unit) 22. Power in 25. Battery release 23. Mounting holes (x4) The D-50 can be charged in two ways; via the wall mounted ‘Charging dock’ or by plugging the unit in directly. Charging dock •... -
Page 20: Quick Start Guide
Quick start guide: D-70 Parts guide Focus tool Brush tool Charging dock 01. Power trigger 02. Battery 03. Dust bin release (on each side) 04. Control panel (on top) 05. Dust bin 06. V.Link connection 07. Extension tube 08. Mega-Glide ZeroX floor brush Caution: Make sure the unit is switched off before swapping parts. -
Page 21: Assembly And Operation
Assembly and operation Any of the accessories can be attached to the ‘Extension tube’ or directly to the body giving you a portable and versatile vacuum cleaner, suitable for any situation. Control panel 09. Light bar 10. Charging fault indicator 11. -
Page 22: Emptying And Cleaning
Emptying and Cleaning: D-70 19. Lid lock 22. Stainless steel pre-filter 20. Dust bin release 23. Dust bin (one on each side) 24. Dust bin lid 21. HEPA filter Emptying the dust bin • For easy emptying, press the ‘Dust bin release’ and lift the ‘Dust bin’... -
Page 23: Charging
Charging: D-70 25. Tool storage 28. Battery release 26. Power in 29. Charging port (base of unit) 27. Mounting holes (x4) Wall mount • Find a suitable place to mount the ‘Charging dock’. • Mount the ‘Charging dock’ using appropriate screws and wall plugs. -
Page 24: Cleaning
Cleaning Mega-Glide head D-3 01. Roller lock 04. Socket 02. Roller 05. Motorised axle 03. End cap • Slide the ‘Roller lock’ to unlock the ‘Roller’. • Remove the ‘Roller’ by lifting the free end. • Remove the ‘End cap’. -
Page 25: Mega-Glide Head
Mega-Glide head D-5 01. Lock switch 03. Roller 02. Roller lock 04. End cap • Pull the ‘Lock switch’ back, lift the ‘Roller lock’. • Lift the free end and pull the ‘Roller’ out of the Mega-Glide head. • Remove the ‘End cap’. •... -
Page 26: Mega-Glide Head
Mega-Glide head D-9 01. Lock switch 03. End cap 02. Roller • Pull the ‘Lock switch’ back. • Lift the free end and pull the ‘Roller’ out of the Mega-Glide head. • Remove the ‘End cap’. • Remove any debris from the ‘Roller’ •... -
Page 27: Mega-Glide Zerox Head
Mega-Glide ZeroX head D-50/D-70 01. Lock switch 03. Roller 02. Roller lock 04. End cap • Pull the ‘Lock switch’ back and lift the ‘Roller lock’. • Lift the free end and pull the ‘Roller’ out of the Mega-Glide head. •... -
Page 28: Health And Safety
Health and safety General safety instructions Symbols from the unit, packaging and instruction manual Read the Coaxial power Class II European Indoor use instruction connector Double Conformity only manual Insulated The following must always be observed for safety • This appliance is not intended to be used by children, keep it away from children. - Page 29 We also recommend that you check the use and care instructions from the floor manufacturer. • Only use genuine Avalla accessories, designed for your specific model. • Do not use batteries that have been damaged or modified. Damaged or modified batteries pose a risk of fire or explosion.
-
Page 30: Troubleshooting
2000 mAh 2000 mAh 2000 mAh 300W 300W Power 150W 250W 300W 2.2 Kg 2.5 Kg Weight 1.8 Kg 1.6 Kg 2.2 Kg Avalla Ltd. Unit A 73, Common Road, Chandler’s Ford, Eastleigh, SO53 1HE. United Kingdom Company no. 13477899 support@avalla.com...
