BioSync Fingerprint Readers
B100-PR Fingerprint Reader
Setup Guide
                                                                       - 1 -                                          P/N: 02382-001 - Rev C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B100-PR and is the answer not in the manual?

Questions and answers

Summary of Contents for Keri Systems B100-PR

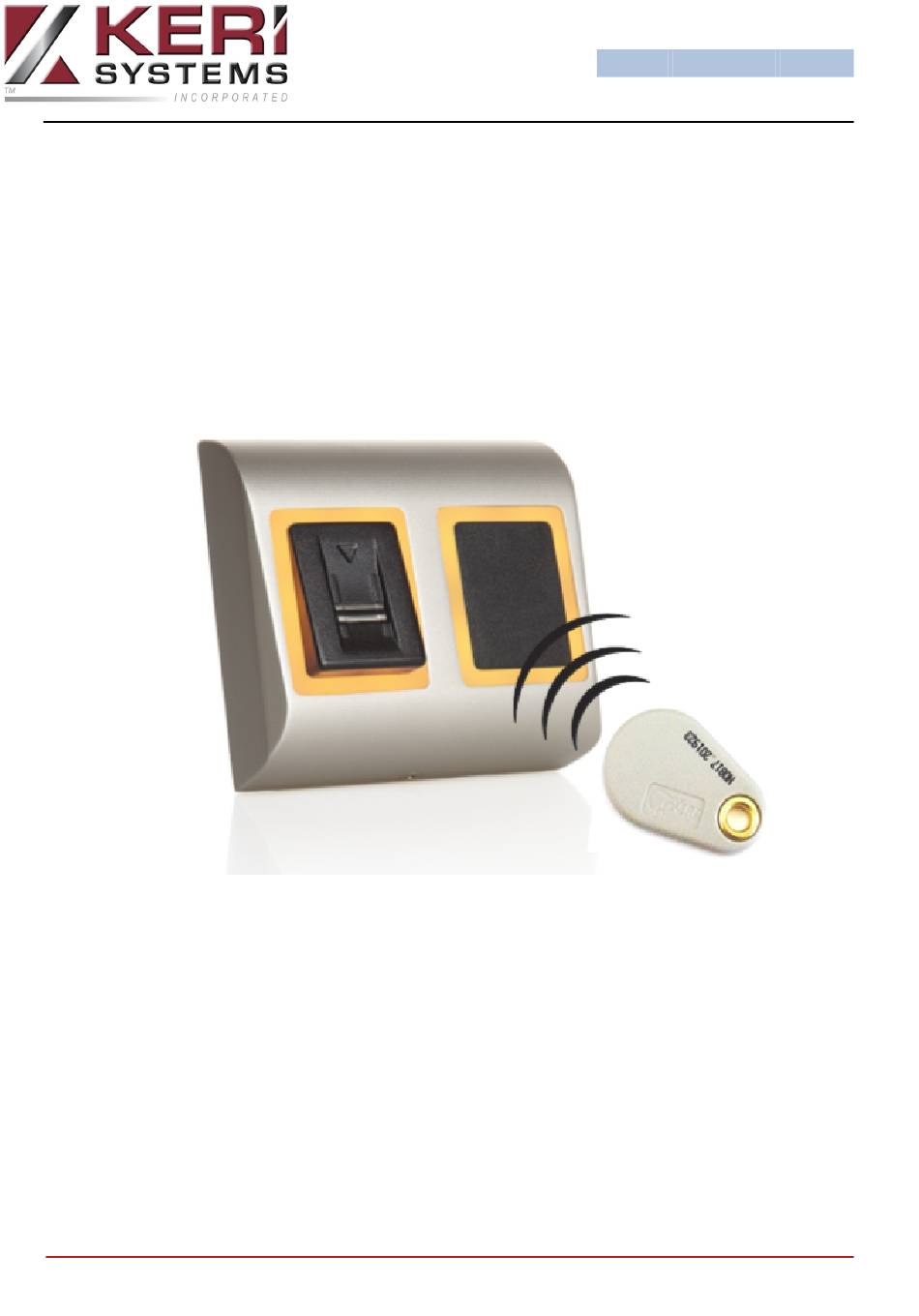

  • Page 1 BioSync Fingerprint Readers B100-PR Fingerprint Reader Setup Guide                                                                        - 1 -                                          P/N: 02382-001 - Rev C...

  • Page 2: Table Of Contents

    2.0 Set the Correct Card Type 3.0 Mounting Instructions 4.0 Wiring Instructions 5.0 Connecting the B100 Readers to Multiple NXT-MSC Controllers 6.0 Add the B100-PR to BioManager 7.0 Enrolling NXT Credentials 8.0 Enrolling 26-Bit Wiegand Credentials 9.0 Enrolling Fingerprints 10.0 Changing the B100-PR Reader Mode 11.0 Enable/Disable the Backlight...

  • Page 3: Introduction

    BioSync Fingerprint Readers 1.0 Introduction Setting up a B100-PR reader as a new installation is a three step process. Each of these steps is covered in its own document: BioManager Software Installation (p/n: 02301-001) CNV Converter Setup (p/n: 02303-001) - (for connection via Ethernet)
  • Page 4 - Connection between the biometric readers is RS485 and it is used for fingerprint trans- fer and configuration. The B100-PR is a combination fingerprint and proximity card reader. It is configurable via a dip switch (located on the rear of the unit) to read Keri NXT, EM, HID and AWID 125KHz credential types.

  • Page 5: Set The Correct Card Type

    BioSync Fingerprint Readers 2.0 Set the Correct Card Type 1. Ensure the power is OFF at the reader. 2. Use a small flat-head screwdriver to set the correct card type on the dip switch. 3. Power ON the reader. 3.0 Mounting Instructions                                                                        - 5 -                                          P/N: 02382-001 - Rev C...

  • Page 6: Wiring Instructions

    (fitted with additional heater if very low temperature), to keep a constant sensor level performance. Keri Systems cannot guarantee the functionality of the product if recommended advice is not followed. It is also strongly recommended to use double technology biometric readers when used outdoors to offer first higher security and also the possibility of using different readers depending on users.
  • Page 7 BioSync Fingerprint Readers IMPORTANT: If you have an NXT 4x4 module connected on the same bus as the B100-PR, you MUST use a separate power supply to power the reader. The Reader Interface Module can only be used with NXT and NXT-MSC controllers.
  • Page 8 The shield wire connects with the black (Ground) wire at the controller. At the reader side they are kept separate to prevent a ground loop. The B100-PR readers can be connected to virtually any controller that conforms to Wiegand format standards (standard 26-bit or a custom Wiegand format).

  • Page 9: Connecting The B100 Readers To Multiple Nxt-Msc Controllers

    The maximum current draw of the B100-PR is approximately 150mA. When using a separate power supply for the reader, connect the GND for both devices to ensure correct transfer of the Wiegand signal.

  • Page 10: Add The B100-Pr To Biomanager

    Once you have installed the BioManager Software, setup the CNV-1000 converter, set the reader's DIP switch and added the CNV converter as a portal, you are ready to add the B100-PR reader to the BioManager software. Scan for the B100 Reader When using the CNV-1000 converter you can use the scan facility.
  • Page 11 4. Enter a description for the B100-PR reader. 5. Select the exact model (B100-PR) from the Type drop-down list. 6. Select the Wiegand output type - typically for the B100-PR this would be left at the default setting of Wiegand26.
  • Page 12 BioSync Fingerprint Readers Note: - Even when using Keri NXT credentials, this setting should still be left at the default of Wiegand26. 7. On the reverse of the reader you will see a white label which displays a wiring dia- gram and the device ID/serial number - you should make a note of this number.

  • Page 13: Enrolling Nxt Credentials

    BioSync Fingerprint Readers 12. You are now ready to start adding users and fingerprints. 7.0 Enrolling NXT Credentials 1. From the lower-left pane of the BioManager client, double-click Users. 2. The Users window will open. 3. Click the New User button. 4.
  • Page 14 BioSync Fingerprint Readers 5. In the User ID's (Card numbers) field, enter the NXT credential number - this is the number printed on the card/tag - (don't include the 4 digits after the letter N). 6. The Site code and User code are automatically infilled (you do not need to be con- cerned about these fields).

  • Page 15: Enrolling 26-Bit Wiegand Credentials

    BioSync Fingerprint Readers 9. The user and credential is now added to the BioManager software and is ready to be added to Doors.NET. 8.0 Enrolling 26-Bit Wiegand Credentials The following section explains how to add 26-bit Wiegand credentials, for example 125KHz HID ISOProx or ProxCard II credentials.
  • Page 16 BioSync Fingerprint Readers 4. Enter the new user name. 5. In the Site code field enter the credential's facility code (also referred to as a site code). (1) 6. In the User code field enter the credential Imprint number. (2) 7.

  • Page 17: Enrolling Fingerprints

    BioSync Fingerprint Readers 10. The user and the 26-bit Wiegand credential are now added to the BioManager soft- ware and is ready to enroll into Doors.NET. 9.0 Enrolling Fingerprints Now that the credential has been enrolled, you are ready to enroll user fingerprints. The fingerprint is associated with the enrolled User ID number, this means if the reader is in Fingerprint-Only mode the same card number will be transmitted when the fingerprint is verified (the same as with all other reader modes) - There is not a separate enrolled num-...
  • Page 18 BioSync Fingerprint Readers 4. On the hands image, right-click the small circle corresponding to the fingerprint you will be enrolling (for example; your right-index finger). 5. Select Enroll. 6. Swipe the finger a minimum of 5 times at the B100 reader. 7.

  • Page 19: Changing The B100-Pr Reader Mode

    BioSync Fingerprint Readers 10.0 Changing the B100-PR Reader Mode The following steps explain how to change the user authentication operating mode of the reader. 1. In the BioManager software in the upper-left pane, right-click on the BioSync reader and select Properties.

  • Page 20: Enable/Disable The Backlight

    BioSync Fingerprint Readers 11.0 Enable/Disable the Backlight The following steps explain how to enable or disable the reader backlight: 1. Right-click the B100-PR reader in the BioManager software. 2. Select the reader properties. 3. Select or deselect the Disable Backlight option.

  • Page 21: Enrolling The Users Into Doors.net

    BioSync Fingerprint Readers 12.0 Enrolling the Users into Doors.NET The same users now need to be added to Doors.NET because so far the users only exist on the fingerprint reader, (not at the controller). In this example the reader is wired into an NXT-MSC controller but the same enrollment procedure applies to all controller types.
  • Page 22 BioSync Fingerprint Readers 3. The reader properties will appear on the right. 4. Locate Manufacturer Model and select Keri BioSync B100-PR from the drop-down list. 5. Save the reader settings 6. Close the hardware page. 12.2 Manually Enroll the Cardholder 1.
  • Page 23 BioSync Fingerprint Readers 4. Ensure Calculate Internal Number is selected the format is correct. 5. Enter the Facility Code and the Imprint (Site Code and User Code in BioManager). 6. Set the status to Active. 7. Click the Add Card button. 8.
  • Page 24 BioSync Fingerprint Readers 9. Go to the Access Rights tab and assign an access group to the new cardholder (i.e Total Access). 10. Save the new record 11. If you now gain access at the B100 reader the reader's LED should go green and you should see an access granted event in the Live Events grid.
  • Page 25 BioSync Fingerprint Readers Contact Keri Systems Keri USA Keri UK, Ireland, Europe Unit 17, Park Farm Industrial Estate, 302 Enzo Drive. Suite 190, San Jose, Ermine Street, Buntingford, Herts, SG9 CA, 95138 USA 9AZ UK Telephone: (800) 260-5265 (408) 435-8400...
