- Page 1 Monicon International Co., Ltd GTR-117CP GTR-117 Control Panel User Manual Site：http://www.monicon.com.tw ：s a l e s @ m o n i c o n . c o m . t w E - m a i l...
-
Page 2: Panel Description

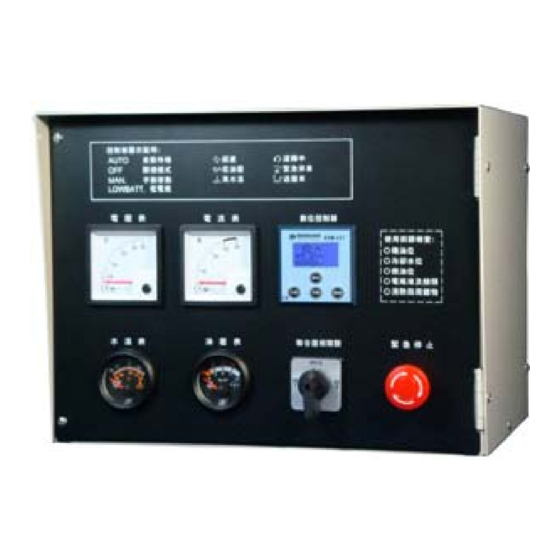

Panel Description Volt. Meter - Indicating generator output voltage Amp. Meter - Indicating generator output current GTR-117 – Generator Controller Water Temp. Meter - Indicating engine coolant temperature Oil Pressure Meter - Indicating engine oil pressure Emergency Stop – During emergency situations, press this button to close the fuel... - Page 3 Monicon International Co., Ltd GTR-117CP Mode Description: Manual: In manual mode, controller switches the power of the Gen-set into the load. AUTO: In auto mode, controller detects the utility failure and order the procedure of the Gen-set power supply when received the ATS signal from outside.
-
Page 4: Back View
Monicon International Co., Ltd GTR-117CP Back View... - Page 5 Monicon International Co., Ltd GTR-117CP Terminal wiring Description Front Panel Rear Panel...
- Page 6 Monicon International Co., Ltd GTR-117CP AC Connection DC connection...
