EUROSCAN RX2-6 / TX2-6
Cabin and trailer recorder
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RX2-6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Euroscan RX2-6

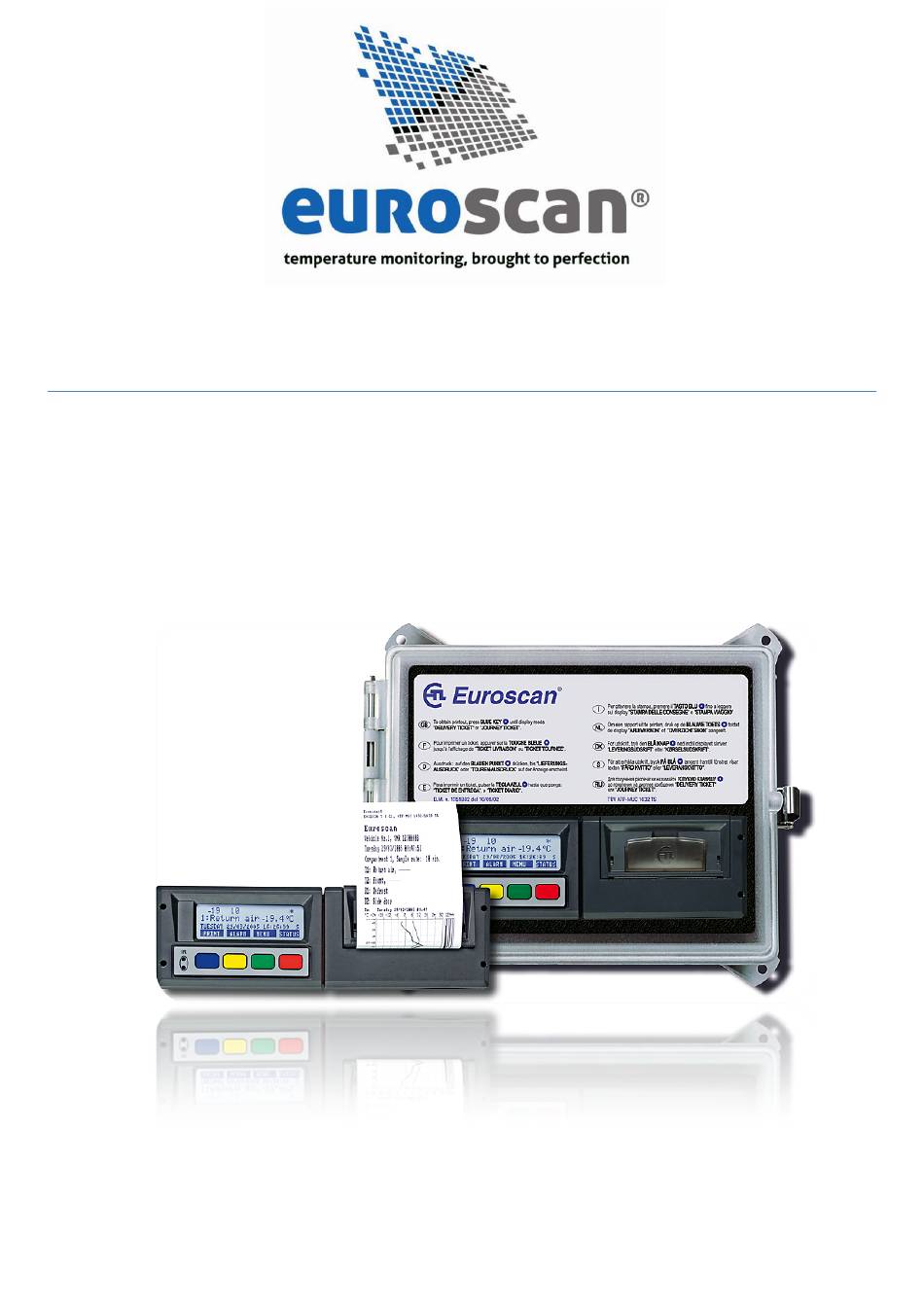

  • Page 1 EUROSCAN RX2-6 / TX2-6 Cabin and trailer recorder USER MANUAL...

  • Page 2: Table Of Contents

    EUROSCAN RX2-6 / TX2-6 USER MANUAL TABLE OF CONTENTS INTRODUCTION ....................... 4 Data security ............................. 4 Menu 1 Print menu ..................6 Select compartment to print ..................6 Time zone offset for printing ..................6 Print event report ......................6 Print parameter report ....................
  • Page 3 EUROSCAN RX2-6 / TX2-6 USER MANUAL T4 input > on/off, menu structure as 5.1 ..............12 T5 input > on/off, menu structure as 5.1 ..............12 T6 input > on/off, menu structure as 5.1 ..............12 Menu 6 Digital inputs settings ..............13 Digital input 1 >...
  • Page 4 EUROSCAN RX2-6 / TX2-6 USER MANUAL Alarm Group 2 > On/Off, menu structure as menu 8.1 ..........17 Alarm Group 3 > On/Off, menu structure as menu 8.1 ..........17 Alarm Group 4 > On/Off, menu structure as menu 8.1 ..........17 ALARM BEHIND PIN ....................

  • Page 5: Introduction

    USER MANUAL INTRODUCTION This manual is a user guideline for the use of the EUROSCAN RX2-6/TX2-6 6 sensor temperature recorders. To avoid guarantee exclusion due to incorrect installation, it is essential to follow the instructions and recommendations in the installation manual.
  • Page 6 Press for 2 seconds to reject the input and go back to the previous menu. Green accept Accept input and go to next menu point. EUROSCAN RX2-6/TX2-6 has four different user menus which are accessible via the keyboard without PIN code: • Print menu •...

  • Page 7: Menu 1 Print Menu

    EUROSCAN RX2-6 / TX2-6 USER MANUAL Menu 1 Print menu Press the blue button. The last selected print choice will be displayed. Delivery ticket Printing now starts after 2 seconds. Repeatedly pressing the blue CURRENT VALUES button will scroll between the available print options: delivery ticket, <-CNCL...

  • Page 8: Print Time Period

    EUROSCAN RX2-6 / TX2-6 USER MANUAL 1.7 Print time period 1.7 Print time period With this option you define the total print period. (10 hour(s)) ↑ ↓ EDIT <-MENU 1.8 Day start time 1.8 Day start time This option defines the time which is taken as start time for the ( 0:00) printout (printout is printed backwards until this time).

  • Page 9: Menu 2 Alarm Settings

    Compartment 4 (same as Compartment 1) Digital input 1 The Euroscan X2-6 recorders are provided with 4 digital inputs that can be used for invoking alarms from door switches and refrigerators. An alarm condition is reached if an input remains in an alarm condition for a certain period of time.

  • Page 10: Menu 3 User Settings Menu

    EUROSCAN RX2-6 / TX2-6 USER MANUAL Menu 3 User settings menu With the user settings, several adjustments can be made to offer the 3.1 Set time user a maximum of user convenience. By pressing the green button (14:00:31) the user setting menu will be activated.

  • Page 11: Set Buzzer Volume

    EUROSCAN RX2-6 / TX2-6 USER MANUAL 3.7 Set buzzer volume 3.7 Set buzzer Change the buzzer volume with < > and confirm with ACCEPT. This only applies to key presses, and not to alarms. volume < > ACCEPT <-CNCL 3.8 Set buzzer frequency 3.8 Set buzzer...

  • Page 12: Menu 4 Status Menu

    In order to return to the main display please press any button. 4.x Parameter menu Parameter Settings The EUROSCAN TX2-6/RX2-6 recorder has been designed to enable ENTER PINCODE a multiple number of desired applications for individual customers. By using the corresponding parameter settings you can adjust the recorder functionality to the required needs.

  • Page 13: Menu 5 Temperature Input Settings

    EUROSCAN RX2-6 / TX2-6 USER MANUAL Menu 5 Temperature input settings Inputs for temperature measurements can be switched on/off and assigned a name, depending on the sensor position. Default, input 1 is preset as ‘Return air’ and input 2 as ‘Rear’.
  • Page 14 EUROSCAN RX2-6 / TX2-6 USER MANUAL Menu 6 Digital inputs settings 4 inputs for status recording, all inputs can be switched on/off, assigned with a name and inverted polarity. Some names are available as a factory 6 Digital inputs settings setting and can be selected from a list.
  • Page 15 EUROSCAN RX2-6 / TX2-6 USER MANUAL 6.1.4.3 Store position when alarm active > Yes/No Here, the GPS position at the moment of the ALARM can be stored. 6.1.5 Store position when input active/inactive or both > NO > WHEN INPUT ACTIVE >...
  • Page 16 EUROSCAN RX2-6 / TX2-6 USER MANUAL Menu 7 Compartment settings In this menu you have to configure the print and alarm functions for up to maximum 4 compartments. Per compartment, one name can be assigned like FRONT, BACK, SIDE. The user is able to print a ticket or activate an alarm per compartment.
  • Page 17 EUROSCAN RX2-6 / TX2-6 USER MANUAL 7.1.8 Print T4 > Yes/No Same as T1 7.1.9 Alarm on T4 > Yes/No Same as T1 7.1.9.1 Store position when alarm T4 active > Yes/No Same as T1 7.1.9.2 Store position when alarm T4 inactive >...

  • Page 18: Alarm Group

    EUROSCAN RX2-6 / TX2-6 USER MANUAL Menu 8 Alarm settings There are 4 alarm groups – each with a name to assign, upper and lower temperature limit and a delay time. Each enabled alarm type can be activated by the user for any compartment, although per compartment only one alarm group can be set at the same time.

  • Page 19: Alarm Repetitions

    EUROSCAN RX2-6 / TX2-6 USER MANUAL alarm repetitions Defines the number of times an alarm output (buzzer and alarm output) should be repeated after it has been acknowledged by the yellow button or timed out due to the ‘Alarm output time span’. Selecting ‘0’ will disable alarm repetition and the maximum number is 10.

  • Page 20: Menu 9 Printer Settings

    EUROSCAN RX2-6 / TX2-6 USER MANUAL Menu 9 Printer settings Following settings enable you to configure the printer functions as desired: Graph upper limit > +50 °C Upper limit for graphical printout Graph lower limit > -30 °C Lower limit for graphical printout...

  • Page 21: Menu 10 General Settings

    EUROSCAN RX2-6 / TX2-6 USER MANUAL Menu 10 General settings General settings for the unit can be entered: 10.1 Temperature unit > °C/°F 10.2 Date format > dd/mm/yyyy or mm/dd/yyyy 10.4 Sample rate > minute(s) Interval time in minutes (1, 2, 3,..,15, 20, 25, 30,.., 60 min.) for storing a temperature measurement into memory.

  • Page 22: Menu 11 Communication Settings

    EUROSCAN RX2-6 / TX2-6 USER MANUAL Menu 11 Communication settings Define which (communication) devices are internally or externally connected to the unit. 11.1 COM 1 (external COM port on CON2) The following options are available: > No protocol > Old ES protocol >...

  • Page 23: Com 2

    EUROSCAN RX2-6 / TX2-6 USER MANUAL 11.2 COM 2 (external COM port on CON2) similar to COM1 reserved for future applications 11.3 COM 3 11.4 COM 4 (internal COM port) > No protocol > DECT protocol and submenus > iGPRS and GPS protocol and submenus EN-MAN-0042.02...

  • Page 24: Attachment A Technical Data

    Memory size: 512 kB, minimum 1 year with 2 sensors and logging interval 15 min. • Inputs: - 6 x temperatures for Euroscan sensors: measuring range -40 °C to +50 °C - 1 x digital for display background light, active > 5 V - 4 x digital, closed circuit •...

  • Page 25: Attachment B Replace Paper Roll

    EUROSCAN RX2-6 / TX2-6 USER MANUAL Attachment B Replace paper roll A coloured line appears on the last metre of paper and indicates that the paper roll needs to be replaced. To change a paper roll, please proceed as follows:...

  • Page 26: Attachment C Error Codes

    EUROSCAN RX2-6 / TX2-6 USER MANUAL Attachment C Error codes If the display shows one of the following values: (I) the input is activated but no sensor is connected (ii) the sensor has an open circuit (sensor or wire failure) (I) the sensor has a short circuit (sensor or cable failure) EN-MAN-0042.02...

  • Page 27: Attachment D Factory Settings

    EUROSCAN RX2-6 / TX2-6 USER MANUAL Attachment D Factory settings Temperature inputs 5.1 T1 input ......On 5.1.1 Type ....... Temperature Name ...... Return air 5.2 T2 Input ......On 5.1.2 Type ....... Temperature Name ...... Rear 5.3 T3 Input ......Off 5.4 T4 Input ......
  • Page 28 EUROSCAN RX2-6 / TX2-6 USER MANUAL Alarm settings 8.1 Alarm group 1 ....Off 8.2 Alarm group 2 ....Off 8.3 Alarm group 3 ....Off 8.4 Alarm group 4 ....Off Alarm behind PIN: .... No Output function ....Alarm Printer settings 9.1 Graph upper limit .....
  • Page 29 EUROSCAN RX2-6 / TX2-6 USER MANUAL We ensure Quality Euroscan Group For more information please contact: Maximilianstr. 32 53111 Bonn/Germany Phone +49 (0) 228 92638-0 +49 (0) 228 92638-10 info@euroscangroup.com www.euroscangroup.com info@euroscangroup.com www.euroscangroup.com EN-MAN-0042.02 28 of 28 Mai 15, 2014...
