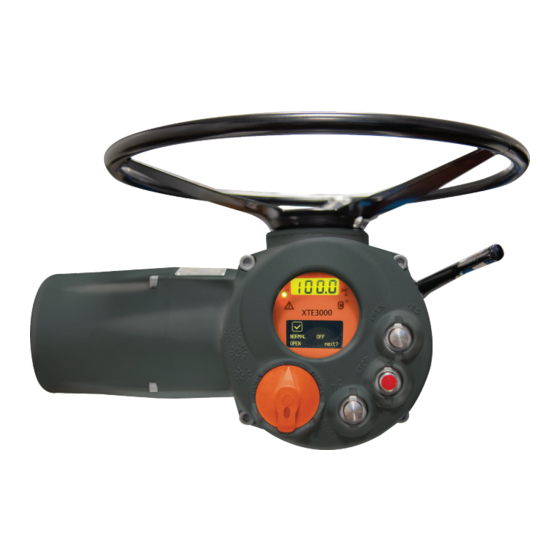

Bettis XTE Electric Actuator – RDM
Quick Start Guide
Quick Start Guide
FCIM-20009-EN Rev. 0
March 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BETTIS XTE3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson BETTIS XTE3000

Summary of Contents for Emerson BETTIS XTE3000

  • Page 1 Quick Start Guide FCIM-20009-EN Rev. 0 March 2023 Bettis XTE Electric Actuator – RDM Quick Start Guide...
  • Page 2 Notes Quick Start Guide FCIM-20009-EN Rev. 0 March 2023 This page intentionally left blank...

  • Page 3: Table Of Contents

    Quick Start Guide Table of Contents FCIM-20009-EN Rev. 0 March 2023 Table of Contents Section 1: XTE3000 with Remote Display Module (RDM) Overview XTE3000 with Remote Display Module (RDM) Overview ..........1 Section 2: XTE3000 – RDM Wiring Connection XTE3000 – RDM Wiring Connection ................2 Section 3: XTE3000 –...
  • Page 4 Notes Quick Start Guide FCIM-20009-EN Rev. 0 March 2023 This page intentionally left blank...

  • Page 5: Section 1: Xte3000 With Remote Display

    Section 1: XTE3000 with Remote Display Module (RDM) Overview Quick Start Guide March 2023 FCIM-20009-EN Rev. 0 Section 1: XTE3000 with Remote Display Module (RDM) Overview RDM module allows actuator to be remote controls, local control and monitors the status of actuator through RS485 communication up to 4000 ft (1200) distance from XTE3000 electrical actuator.

  • Page 6: Section 2: Xte3000 - Rdm Wiring Connection

    Section 2: XTE3000 – RDM Wiring Connection Quick Start Guide March 2023 FCIM-20009-EN Rev. 0 Section 2: XTE3000 – RDM Wiring Connection Bettis electrical actuator XTE3000 with RDM card VAXTE-494MOD3400 provides one channel of MODBUS at A1, A2, A3 terminal and one channel of RDM port at A4, A5, A6. The wiring connection between XTE3000 to RDM module shows in Figure 2 and RDM module has 2 options to be powered.
  • Page 7 Section 2: XTE3000 – RDM Wiring Connection Quick Start Guide March 2023 FCIM-20009-EN Rev. 0 RDM power by external single phase 110 V to 220 V AC, 50/60 Hz • AC Line connect to pin1 on P2 connector • AC Neutral connect to pin2 on P2 connector •...

  • Page 8: Section 3: Xte3000 - Rdm Power Requirement

    Section 3: XTE3000 – RDM Power Requirement Quick Start Guide March 2023 FCIM-20009-EN Rev. 0 Section 3: XTE3000 – RDM Power Requirement RDM can be power by external power 24 V DC (+/-10%) or single phase 110 V to 220 V AC (+/-10%) 50/60 Hz and the nominal power consumption of RDM is 10 Watts and maximum is 14 Watts.

  • Page 9: Section 4: Xte3000 - Rdm Communication Cable Requirement

    Section 4: XTE3000 – RDM Communication Cable Requirement Quick Start Guide March 2023 FCIM-20009-EN Rev. 0 Section 4: XTE3000 – RDM Communication Cable Requirement With the best performance, A4, A5, A6 communication cable requires using Belden 9841 (or equivalent) for RS485 communication. XTE3000 –...

  • Page 10: Section 5: Xte3000 - Rdm Parts List And Option Kits

    Section 5: XTE3000 – RDM Parts List and Option Kits Quick Start Guide March 2023 FCIM-20009-EN Rev. 0 Section 5: XTE3000 – RDM Parts List and Option Kits XTE3000 with RDM is option item from Standard XTE3000 unit. Option: XTE RDM upgrade kits is also available, “480KAMOD45” for XTE 10/20/30 size, “480KAMOD46”...

  • Page 11: Section 6: Xte3000 - Rdm Operation Method

    Quick Start Guide Section 6: XTE3000 – RDM Operation Method March 2023 FCIM-20009-EN Rev. 0 Section 6: XTE3000 – RDM Operation Method RDM controls XTE3000 XTE3000 display and RDM display will both show as “REMOTE” when XTE3000 change selector knob in “REMOTE” position to have controlled by RDM. XTE3000 display push button will have no function.
  • Page 12 Section 6: XTE3000 – RDM Operation Method Quick Start Guide March 2023 FCIM-20009-EN Rev. 0 XTE3000 display controls XTE3000 XTE3000 display and RDM display will both show as “LOCAL” when XTE3000 change selector knob in “LOCAL” position to have controlled by XTE3000 front display.
  • Page 13 Quick Start Guide Section 6: XTE3000 – RDM Operation Method March 2023 FCIM-20009-EN Rev. 0 XTE3000 in OFF mode XTE3000 display and RDM display will both show as “OFF” and “STOP” when XTE3000 change selector knob in “OFF” position to have controlled by XTE3000 front display.

  • Page 14: Section 7: Xte3000 - Rdm Functional Table

    Section 7: XTE3000 – RDM Functional Table Quick Start Guide March 2023 FCIM-20009-EN Rev. 0 Section 7: XTE3000 – RDM Functional Table XTE3000 could be controlled by multiple different control sources, RDM (Remote Display Module), Bus (Modbus, Hart and etc.), 4 to 20 mA Analog, Discrete Hardwire and Local Display Control.
  • Page 15 Quick Start Guide Notes FCIM-20009-EN Rev. 0 March 2023 This page intentionally left blank...
