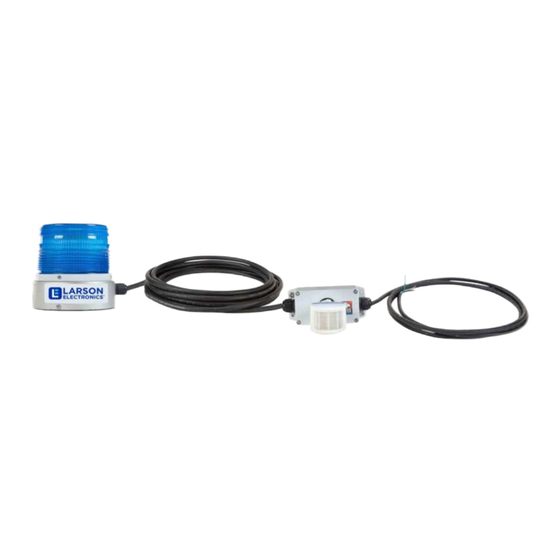

Larson Electronics SLEDB-110V-30C-XMS Quick Start Manual

Thank you for your purchase of the Larson Electronics SLEDB-110V-MS series Strobe Light with Motion Sensor. This
strobe light is completely assembled, tested and ready for installation when shipped from the factory. Please follow the
steps below in order to operate and maintain this product.
IMPORTANT
READ CAREFULLY BEFORE OPERATING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF UNSURE ABOUT ANY
PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL.
WARNING:
OPERATE ONLY AT THE VOLTAGE LISTED ON THE PRODUCT. DO NOT OPERATE IN CLOSE PROXIMITY OF COMBUSTIBLE
OR FLAMMABLE MATERIALS. NEVER LOOK DIRECTLY AT LIGHT WHEN ON.
WARNING:
CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL/ELECTRICIAN TO INSTALL THIS DEVICE IN ACCORDANCE WITH
APPROPRIATE LOCAL AND NEC CODES AND REGULATIONS.
WARNING:
TO BE INSTALLED AND/OR USED IN ACCORDANCE WITH APPROPRIATE ELECTRICAL CODES AND REGULATIONS.
WARNING:
DEVICE IS SUITABLE FOR INSTALLATION IN WET LOCATIONS; GFCI PROTECTION RECOMMENDED.
WARNING:
ALTHOUGH FIXTURE IS WATERPROOF, IT IS NOT DESIGNED OR INTENDED TO BE SUBMERGED.
WARNING:
DO NOT ALLOW LINE VOLTAGE WIRES TO BECOME SUBMERGED!
•
ALL OUTDOOR INSTALLATIONS AND INDOOR INSTALLATIONS NEAR A WET LOCATION REQUIRE THE USE OF A GFCI DEVICE FOR
SAFETY, ACCORDING TO THE NATIONAL ELECTRICAL CODE® (NEC).
•
KEEP AWAY FROM FLAMMABLE OBJECTS. DO NOT POSITION WITHIN ONE (1) INCH OF ANY COMBUSTIBLE MATERIALS.
•
IF DROPPED OR DAMAGED, THE UNIT MAY NO LONGER BE WATERPROOF AND SHOULD BE REPLACED.
•
TO AVOID HAZARDS TO CHILDREN, ACCOUNT FOR ALL PARTS AND DESTROY PACKING MATERIALS.
INSTALLATION
This unit comes pre-assembled with
the selected color from factory. Follow
the steps below for installing and
maintaining the strobe light.
MOUNTING
Mount beacon to any flat surface capable of holding its weight utilizing the predrilled mounting holes. Mount in
any direction. Run cable and mount motion sensor within cable length of the beacon. Use the predrilled
mounting holes on the back of motion sensor box to mount.
WIRING
We strongly encourage a licensed electrician install this product, especially in outdoor locations where
weatherproofing may be required.
Warning: Check product label for correct input voltage!
Attach supply line wires to the appropriate light fixture
wires as shown in the diagram
Take precautionary
connections if installed in a location where water may
come in contact with the unit. Ensure the unit is properly
grounded.
If top light output is not required, a circular piece of reflective tape is included to increase visibility to the sides.
Simply remove colored lens held in place by four screws, peel off paper revealing the adhesive side, and stick
reflective tape to the top of lens from the inside with the reflective side facing down, toward the light.
