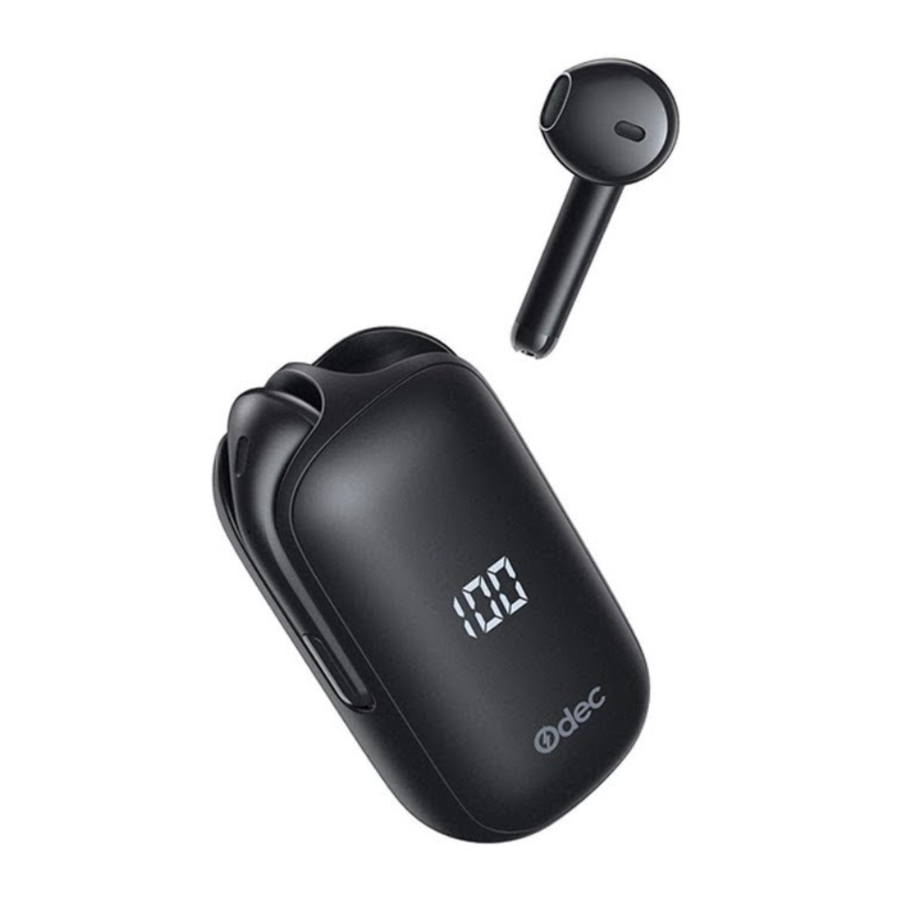

Odec OD-E1 - Touch Control Stereo Earphones Manual

Package Contents

True Wireless Earbuds
Charging Case
Type-C Cable
User Manual

Product Diagram

Specifications

Getting Started

Charging

Fully charge the charging case before first use. To charge, connect the case to a USB charger or charging port with the included USB-C cable. When the LED charging indicator turns 100, the case is fully charged. Charging takes around 2 hours, and after being fully charged, the case can fully charge the earbuds 5 times. The earbuds should be stored in the case when not in use. When the earbuds are charging in the case (with the case itself not charging), the LED indicators on the earbuds will turn solid red. When the indicators turn off, the earbuds are fully charged.

Pairing

Starting with the earbuds in the case:

1. Take the left and right earbuds out of the case. They will turn on automatically and connect with each other within 5 seconds
2. After the earbuds have connected successfully, the LED indicators on the earbuds will flash blue and red. This indicates they are ready to pair
3. Turn on the pairing function on the device you want to pair with the earbuds
4. From the list of available devices, find and select "OD-E1"
5. If a code or PIN is required for pairing, enter "0000"

Regular Use After Pairing

Once the earbuds are successfully paired with your device, they can be switched on and off as follows:

• Take the earbuds out from the charging case and they will turn on automatically
• To power off, put the earbuds back into the charging case and they will begin charging

Using the Left/Right Earbud Only

Starting with the earbuds in the case:

1. Take the left/right earbud out
2. Turn on the pairing function on the device you want to pair with the earbud
3. From the list of available devices, find and select "OD-E1"

Notes

• When you turn on the earbuds, they will automatically reconnect to the last-paired device or enter pairing mode if no paired device is found
• To clear the pairing list, remove both earbuds from the charging case, tap and hold the touch-sensitive panel on both earbuds for 10 seconds
• In pairing mode, the earbuds will automatically turn off after 5 minutes if no devices are paired
• If one of the earbuds has no sound output, put both earbuds back into the charging case and take them out again
• The maximum wireless operating range is 10m (33ft). If you exceed this range, the earbuds will disconnect from your paired device. The connection will be re-established if you re-enter the wireless range within 5 minutes. The earbuds will automatically reconnect to the last-paired device. To connect with other devices, refer the previous pairing steps

Controls & LED Indicators

Streaming Audio

Once paired, you can wirelessly stream audio from your device to the earbuds. Music will automatically pause when you receive an incoming phone call and resume once the call has ended.

Taking Calls

FAQ

The device is on but not connecting to my device

For the earbuds and your device to establish a connection, you need to put them both in pairing mode. Please follow the instructions in the Pairing section of this manual.

I've connected the earbuds with my smartphone but can't hear any sound
Double-check the volume level on your smartphone and the earbuds. Some smartphones require you to set up the earbuds as an audio output device before the audio can be transmitted. If you're using a music player or other device, please make sure it supports the A2DP profile.

The sound isn't very clear or the caller can't hear my voice clearly
Adjust the volume on your smartphone and the earbuds. Try moving closer to your smartphone to rule out the possibility of interference or wireless range-related issues.

What's the wireless range of the unit

The maximum range is 10m (33ft). However, the actual range depends on environmental factors. For optimal performance, keep your device connected within a range of roughly 4m to 8m and make sure that there are no major obstacles (like reinforced steel walls) between the earbuds and your device.

The device won't turn on

Try charging the earbuds for a while. If the earbuds still won't power on, please contact our support team at the email address given in Warranty & Customer Support.

I put the earbuds back in the charging case, but the earbuds are still connected
In this case, the charging case is likely to be out of power. You will need to charge the case.

Product Care & Use

• Keep away from liquids and extreme heat
• Don't use the earbuds at high volume for extended periods, as this may cause permanent hearing damage or loss

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Odec OD-E1 - Touch Control Stereo Earphones Manual
