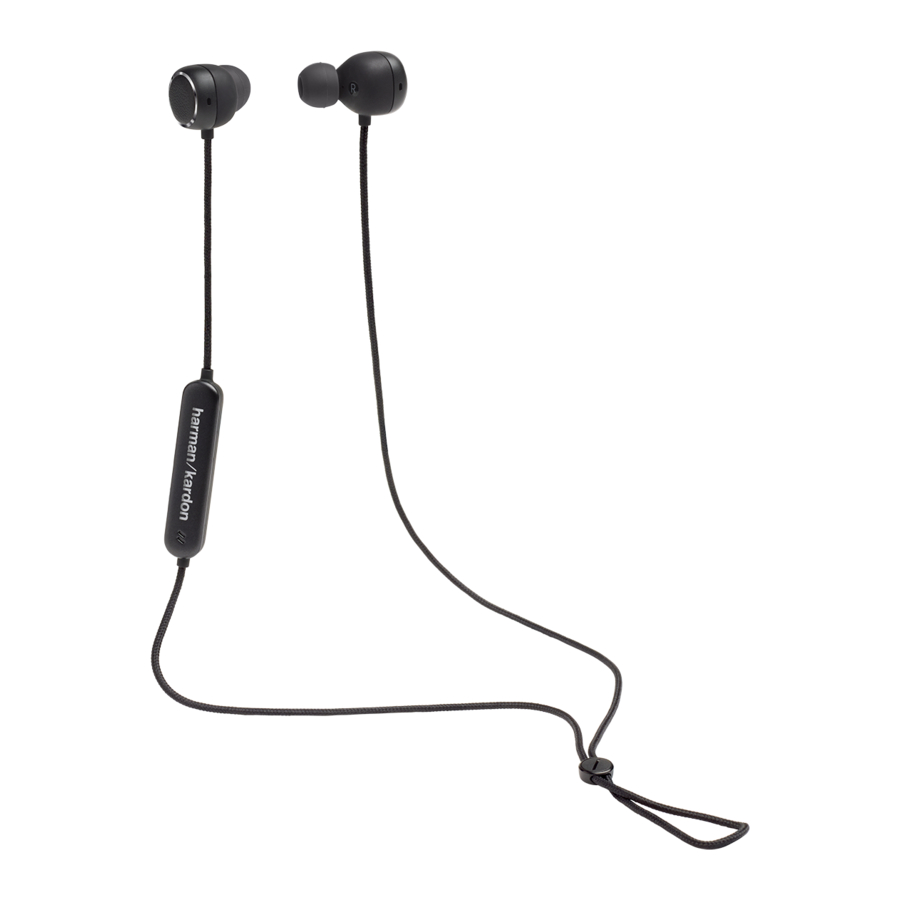

Harman Kardon FLY BT - Wireless In-Ear Headphones Quick Start Guide

WHAT'S IN THE BOX

HOW TO WEAR

POWER AND CONNECT

2. To connect to another Bluetooth device, switch off Bluetooth on current device.


BUTTON COMMAND

CHARGING

LED BEHAVIORS

x2		Power On / Off
		Bluetooth connecting
		Bluetooth connected
		Low power
		Charging
		Fully charged

FACTORY RESET

TECH SPEC

• Driver size: 8.6 mm
• Frequency response: 20 Hz – 20 kHz
• Sensitivity: 100 dB SPL @ 1 kHz / 1 mW
• Microphone sensitivity: -20 dBV @ 1 kHz / Pa
• Impedance: 32 Ohm
• Bluetooth transmitted power: <6 dBm (EIRP)
• Bluetooth transmitted modulation: GFSK, π/4 DQPSK, 8DPSK
• Bluetooth frequency: 2.402 GHz – 2.48 GHz
• Bluetooth profile version: HFP V1.6, HSP V1.2, A2DP V1.2, AVRCP V1.4
• Bluetooth version: 4.1
• Battery type: Li-ion polymer battery (3.7 V, 110 mAh)
• Power supply: 5 V, 1 A
• Charging time: 2 hrs
• Music play time with BT on: up to 8 hrs
• Weight: 17.1 g
