Purpose:
This document is a set up instruction guide for the EBS-N100 unit and using it with Display
Commander. Known issues of this pre-release version of Display Commander are included at the end
of the document.
Components:
1 - EBS-N100
1 – AC Adapter for EBS-N100
1 – RS232C cable
Loading Display Commander Software
The Display Commander software is included in an e-mail attachment. This software extends the
control set of the EBS-N100 from individual unit control to group controls.

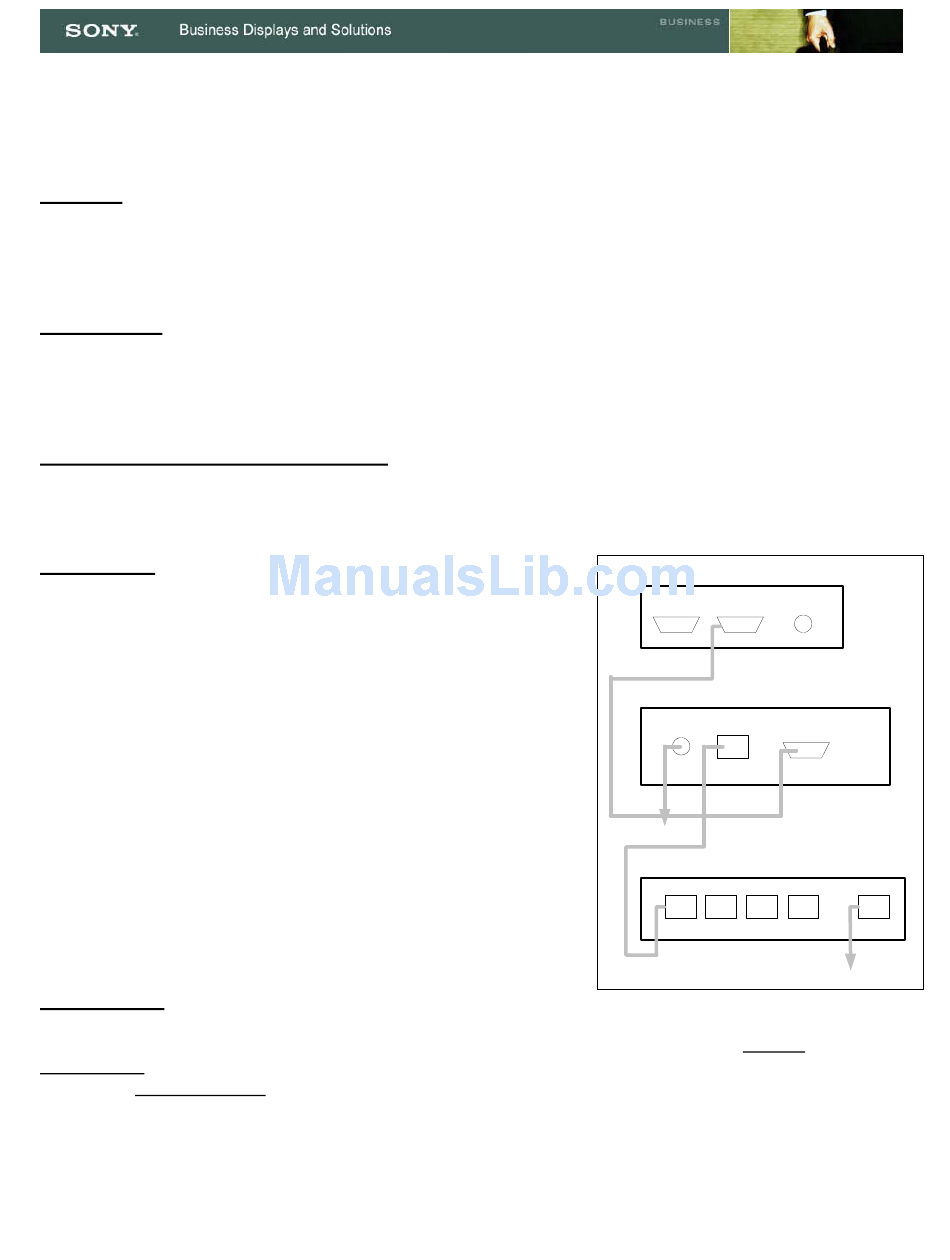

Connections
Connecting EBS-N100 to Sony Professional Monitor
1) RS232C Cable
a. Attach the 9-pin RS232C Cable to the port
labeled "COM1" on the EBS-N100
b. Attach the other end to the REMOTE input on
the Sony Monitor
Connecting the EBS-N100 to a Network Router
1) CAT5 Cable
a. Plug the RJ45 connector into the back of the
EBS-N100
b. Plug the other end of the CAT5 cable into a
LAN port on the router
Power Up
1) Plug in the AC Adapter for the EBS-N100
Configuration
The EBS-N100 can be controlled and configured in two ways. The first is using the Display
Commander application to identify and control the EBS-N100 unit. The second is through an
embedded HTML Interface page for configuration and control.
Once power has been applied to the unit, double click on the Display Commander icon in the folder
where the application was extracted to from the Zip file. After a couple of seconds, the attached EBS-
EBS-N100
Setup Guide
PLASMA DISPLAY
RGB
RS232
AUDIO IN
EBS-N100
POWER
ETHERNET
5VDC
COM1
POWER
ADAPTOR
ETHERNET SWITCH/ROUTER
PORT 1
PORT 2
PORT 3
PORT 4
WAN
INTERNET
Advertisement
Table of Contents
Related Manuals for Sony EBS-N100
Summary of Contents for Sony EBS-N100
- Page 1 Purpose: This document is a set up instruction guide for the EBS-N100 unit and using it with Display Commander. Known issues of this pre-release version of Display Commander are included at the end of the document. Components: 1 - EBS-N100 1 –...
- Page 2 Rescan to search the network for the device). By selecting the EBS-N100, you may adjust basic controls from the Display Commander, such as Power On/Off, Check Status, Select Input, Adjust Volume or change Aspect Ratio of the video. The Display Commander software will allow you to directly access the HTML Control Page for a desired EBS-N100 or N200 for additional configuration and control settings.
- Page 3 Select Submit and Restart to reboot the unit for the new IP Address to take effect • Configuring the Unit Before you begin using the EBS-N100, you must enter the display type and model to which it is connected. The controls available in the user interface (EBS-N100 software) directly correspond to the...
- Page 4 In the Model field, select the model of the device. • In the Location field, enter the location of the EBS-N100, such as a room number or a • conference room. This information is helpful to identify the EBS-N100 unit.
- Page 5 Picture Settings Reset Picture (return to default) Reset Audio (return to default) Reset Size (return to default) More Settings Color Settings (Cool, Warm, etc.) Color Systems (Auto, NTSC, PAL) Maintenance This section allows the immediate performance of maintenance or to schedule timed maintenance functions on a display.
- Page 6 IP by a DHCP server or for a fix IP to be set by the user. Under Advanced Settings, an alternative name can be assigned to the EBS-N100 and password settings for access to display controls can be set.
