Sectron gsmkey SMART 3T Quick Manual

GSM KEY
QUICK MANUAL
SMART 3T
Smart GSM KEY SMART 3T is used to control the
electric drive of gates, barriers and doors by mobile
phone. Opening and closing is FREE OF CHARGE
and is done by calling the phone number of the
SIM card located in the device. GSM KEY SMART 3T
has two outputs port (OUT1, OUT2)
to connect the gate or door operator and two
input ports (IN1, IN2) to connect stop sensors or
other peripherals. Authorization is done through
the list of phone numbers stored in GSM KEY
SMART 3T controller´s memory.

INSTALLATION

When mounting the device, pay extra attention to
work safety. The device should only
be installed by quali ed and properly trained
personnel. Please read this manual carefully before
starting installation and commissioning. If the
power supply is used for powering the device, it
must meet the SELV circuit requirements and
comply with EN60950. If batteries
or accumulators are used, they must also comply
with the relevant standards.
In case of any confusion, contact your authorized
assembly company from www.gsmkey.cz in section
,,Installation Companies" or SECTRON Tech. Sup-
port at hotline@sectron.cz, +420 599 509 599.
We recommend you read the manual before
installing and connecting the device to the gate-
way. The device is intended for indoor installation
or installation in a waterproof plastic cabinet. The
device can be powered by a power supply from a
230 V AC socket using another voltage source
with output 12 V / 24 V at least 1 A (recommen-
ded).

FOLLOW THE POINTS OF INSTALLATION GUIDE

FIGURE 1
GSM KEY SMART 3T controller illustration from two
sides and contents of the package.
• Antenna
• 8-pin terminal block
• 2-pin terminal block
• 3M Dual Lock (self-adhesive Velcro
fastener)
• 2× double-sided cable 0.5m
• USB-A/Micro USB-B cable adaptor
FIGURE 2
You will need a small cross screwdriver for installa-
tion (not included in the package).
FIGURE 3
Insert the SIM card you want to use in the GSM KEY
controller into your mobile phone.
• Activate the SIM card with an outgoing
call (e.g. operator line)
• Disable PIN lock
• Disable voice mail
• Delete all SMS messages
• IMPORTANT: Delete all contacts on
SIM card (Credit, Emergency,
Operator etc.)
FIGURE 4
Put the SIM card, you set up, from your mobile
phone to GSM KEY SMART 3T controller.
FIGURE 5

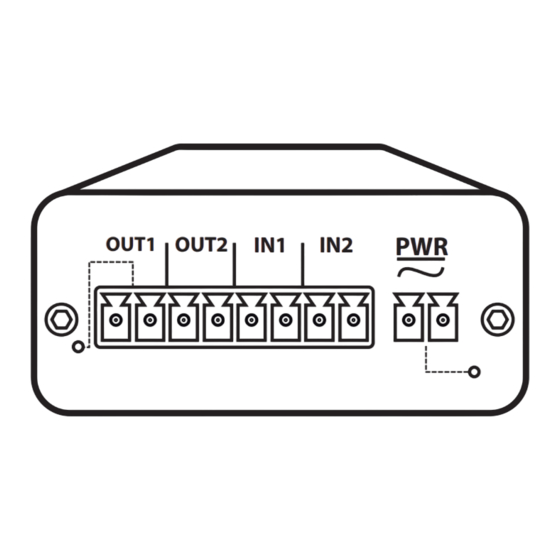

Illustration of extended 8-pin terminal block for 2×
outputs and 2× inputs.
Illustration of extended 2-pin terminal block for
power cables.
FIGURE 6
Schematic representation of the OUT1 output
connection with the gate´s drive (START pins).
Schematic representation of the power supply
connection.
FIGURE7
I
nstall the antenna into the connector on the front
left. Connect 8-pin terminal block with connected
signals of inputs and output into GSM KEY SMART
3T unit.
FIGURE 8
Connect the power supply 2-pin terminal block
last. The device will be running in about 1 minute,
which will be signaled by blinking the blue LED in
1:5 ratio.
FIGURE 9
This makes your GSM KEY SMART 3T controller
ready for use and you can test its functionality by
calling from any phone number. Insert the rst user
into the GSM KEY controller's list by using the
following SMS template:
ADD MASTER +yyy×××××××××
(where +yyy××××××××× is your phone number in
international format).
If you did not add a MASTER user rst, reset the
device by pressing the button. Disconnect the
power and then press and hold the power button,
while you connect the power, for 10 seconds.
If you are using a VPN service, the shown caller
number may di er. Check with your operator.
Users can be divided into two groups with maxi-
mum of 1000 users:
A REGULAR USER – no rights to administrate
GSM KEY SMART 3T controller, only open/
close connected device by calling.
B MASTER USER – user with rights to administra-
te GSM KEY SMART 3T using SMS / mobile applica-
tion.
Attention:
Next users you would like to add MASTER, has to
have number or name right after „MASTER"
(without space).
Sample user list:
MASTER +420×××××××××
HONZA +420×××××××××
MASTERMAMINKA +420×××××××××
MASTER2
+420×××××××××
PETR +420×××××××××
MASTER3TOMAS
+420×××××××××

CONTROL BY SMS

Administration using SMS messages is accessible
only to users who's name starts with the word
MASTER.
Request SMS Template SMS Example
ADD name ADD Doe
Add new user
number +420777123456
Remove user DEL name DEL Doe
Current user
LIST LIST
list
Clear user
CLEAR CLEAR
list
Default setting
DEFAULTS DEFAULTS
reset

CONTROL BY SECTRON GSM KEY APP

CONTROL BY PC APP

Smart 3 Admin App is available for download on
gsmkey.cz

REMOTE CONTROL IN CLOUD

GSMKEY.Cloud is a paid service. Information and
settings can be found in the detailed GSM KEY
SMART 3T manual.

Parameters

GSM Module Thales Cinterion EHS5
GSM Frequency Bands 850/900/1800/1900 MHz
Operating temperature -20 °C až +65 °C
Storage temparature
-40 °C až +85 °C
Power Supply 12 – 30 V AC / 8 – 30 V DC
Recommended Voltage 12 - 24 V AC/DC
Power consumption 1 W / 3.5 W (receive / transmission)
Antenna connector SMA(f) 50 Ohm
Dimensions
24 × 54 × 86 mm
Weight Váha 120 g
